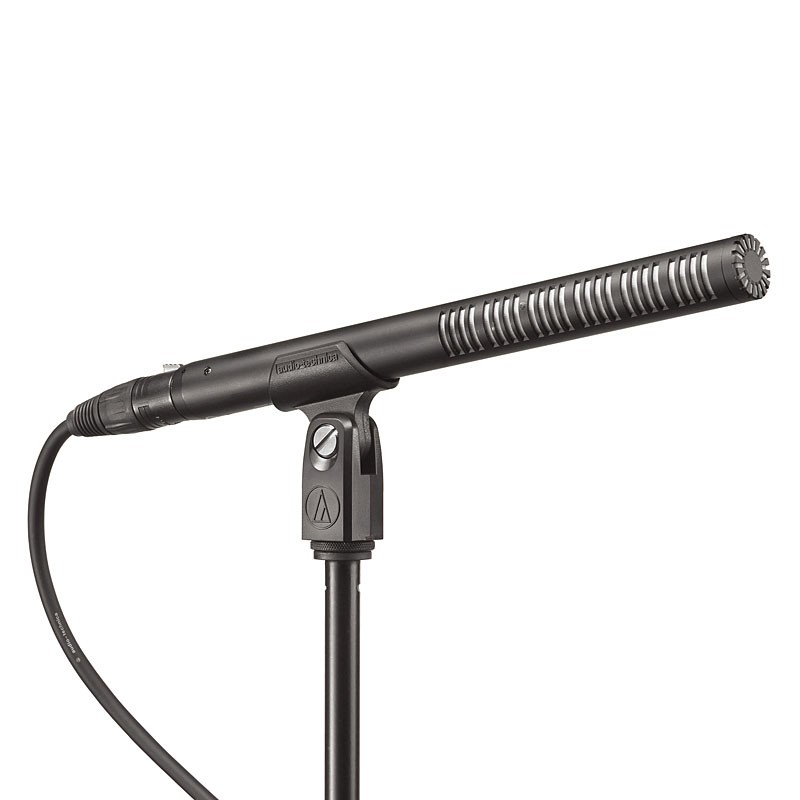

Audio-Technica BP4073 Line + Gradient Condenser Shotgun Microphone

Share

With an overall length of just 9.17" and weight of just 3.5 oz, this microphone adds virtually no heft to the end of a fish pole or the top of a minicam. Through the use of an innovative Audio-Technica design, the interference tube of the BP4073 provides a narrow acceptance angle, effective for long-distance pickup. The highly directional mics offer low self-noise and are fully RoHS-compliant—free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

• Element: Externally polarized (DC bias) capacitor
• Polar Pattern: Line + gradient
• Frequency Response: 20 - 20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -29 dB (35.5 mV) re 1V at 1 Pa
• Impedance: 50 ohms
• Maximum Input Sound Level: 141 dB SPL, 1 kHz at 1% T.H.D.;
  151 dB SPL, with 10 dB pad (nominal)
• Noise: 13 dB SPL
• Dynamic Range (typical): 128 dB, 1 kHz at Max SPL
• Signal-To-Noise Ratio: 81 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 4.8 mA typical
• Switches: Flat, roll-off; 10 dB pad (nominal)
• Output Connector: Integral 3-pin XLRM-type
• Accessories Furnished: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8144 windscreen; two O-Rings; protective carrying case
• Audio-Technica Case Style: SG2
• Dimensions: 233.0 mm (9.17") long, 21.0 mm (0.83") maximum body diameter
• Weight: 99 g | 3.5 oz
