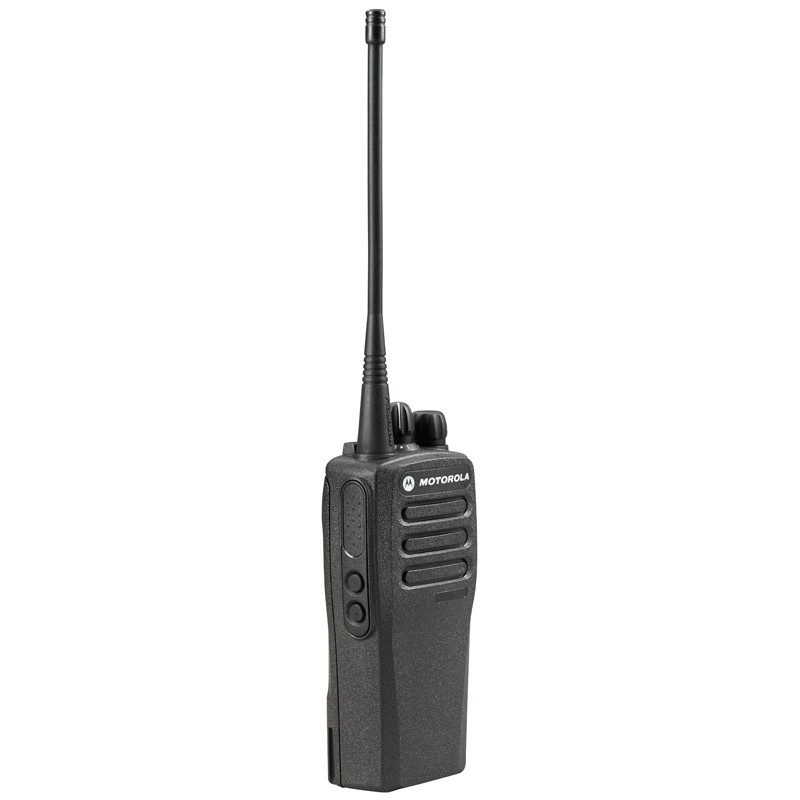

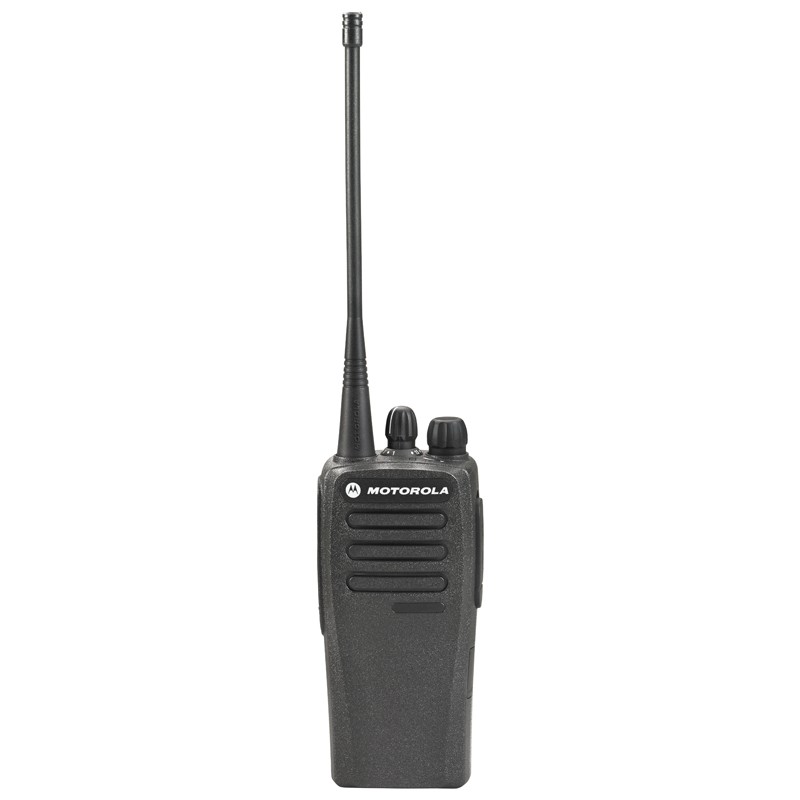

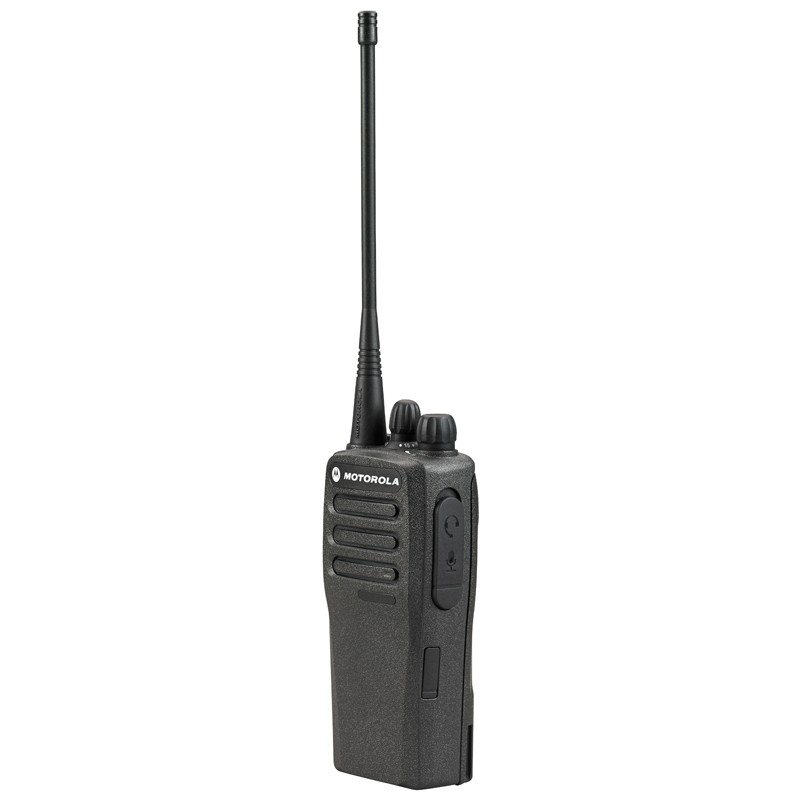

Motorola CP200D Digital 16-Channel Walkie-Talkie, 403-470 MHz UHF, Slim Li-Ion Battery, Whip Antenna, w/o Charger

Share

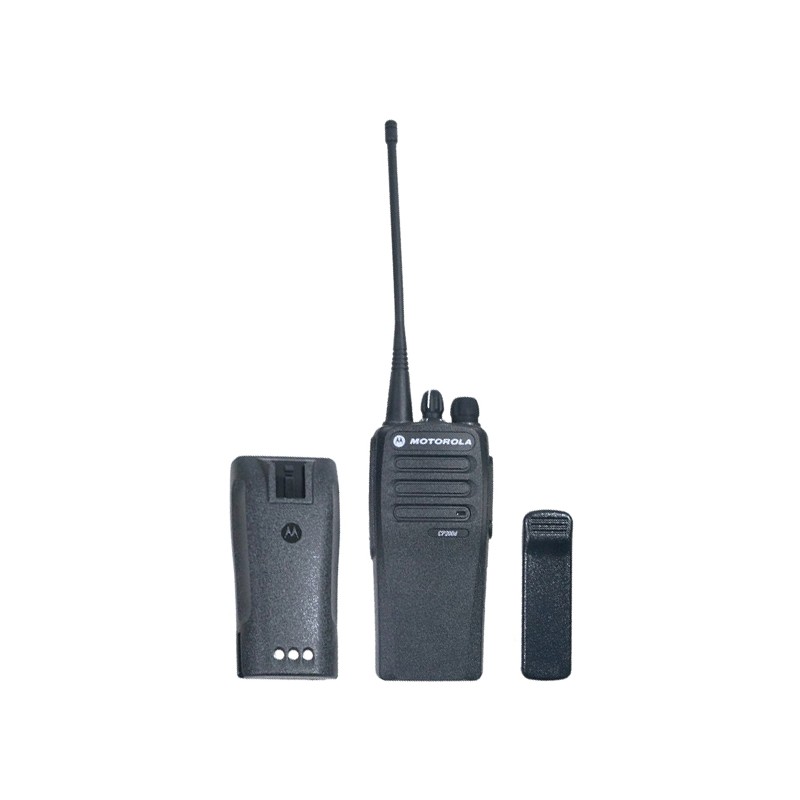

NOTE: This CP200D Digital UHF walkie-talkie comes with a slim Li-Ion (1600 mAh, 7.4V) battery, belt clip, and flexible whip antenna. Charger is NOT included.

By combining the best of two-way radio functionality with the latest analog and digital technology, the CP200D is perfect for the everyday user who wants to stay connected. It is fully compatible with the MOTOTRBO family of radios and has superior audio quality, outstanding coverage, long-lasting battery life and more.

You can also choose the analog-only model, which gives you great voice communications today with the option to migrate to digital when you are ready.

Whatever your needs, the CP200D provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right.

Analog/Digital
Get all the benefits of digital, including better voice quality, better range and better battery life, but retain compatibility with your existing radio fleet. With analog and digital capability, you have the freedom to migrate to the latest technology at your own pace.

Transmit Interrupt Capability (Decode Only)
Enables a supervisor to interrupt a CP200D user to deliver critical communication exactly when and where it's needed.

Dual Capacity Direct Mode
Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel, without the need for a repeater.

Analog Only
Purchase analog capability now and transition to digital capability when you're ready. All you will need is a simple software upgrade.

Compatible With Radio Management Suite
Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.

IP54 Rated
The CP200D is dustproof and splashproof, so you can work with confidence in challenging environments.

• General Specifications:
  • Channel Capacity: 16
  • Typical RF Output:
    • Low Power: 1 W
    • High Power: 4 W
  • Frequency: 403 - 470 MHz
  • Radio Dimensions (H x W x D) with Slim Li-Ion 1600mAH: 5 x 2.4 x 1.5 in | 127.7 x 61.5 x 39 mm
  • Weight with Slim Li-Ion 1600mAH: 12.1 oz | 341 g
  • Power Supply: 7.5V (nominal)
  • Temperature Range:
    • Operating: -22° to 140° F | 30° to 60° C
    • Storage: -40° to 185° F | -30° to 85° C
  • FCC Description: ABZ99FT4094
  • IC Description: 109AB-99FT4094
• Battery Life, Slim Li-Ion 1600mAH: Analog: 10.5 hrs / Digital: 13.5 hrs
• Receiver:
  • Frequency: 403 - 470 MHz
  • Channel Spacing: 12.5 kHz / 25 kHz³
  • Frequency Stability (-30° C, +60° C, +25° C Ref): ± 0.5 ppm
  • Analog Sensitivity (12 dB SINAD): 0.3 uV / 0.22 uV (typical)
  • Digital Sensitivity (5% BER): 0.25 uV / 0.19 uV (typical)
  • Intermodulation (TIA603D): 70 dB
  • Adjacent Channel Selectivity (TIA603D): 45 dB @ 12.5 kHz / 70 dB @ 25 kHz³
  • Spurious Rejection (TIA603D): 70 dB
  • Rated Audio: 0.5 W (internal)
  • Audio Distortion @ Rated Audio: 5% (3% typical)
  • Hum and Noise: -40 dB @ 12.5 kHz / -45 dB @ 25 kHz³
  • Audio Response: TIA603D
  • Conducted Spurious Emissions (TIA603D): -57 dBm
• Transmitter:
  • Frequency: 403 - 470 MHz
  • Channel Spacing: 12.5 kHz / 25 kHz³
  • Frequency Stability (-30° C, +60° C, +25° C Ref): ± 0.5 ppm
  • Low Power Output: 1 W
  • High Power Output: 4 W
  • Modulation Limiting: ± 2.5 kHz @ 12.5 kHz / ± 5 kHz @ 25 kHz³
  • FM Hum and Noise: -40 dB @ 12.5 kHz / -45 dB @ 25 kHz³
  • Conducted/Radiated Emission: -36 dBm < 1 GHz / -30 dBm > 1 GHz
  • Adjacent Channel Power: 60 dB @ 12.5 kHz / 70 dB @ 25 kHz³
  • Audio Response: TIA603D
  • Audio Distortion: 3% (typical)
  • 4FSK Digital Modulation:
    • 12.5 kHz Data: 7K60F1D and 7K60FXD
    • 12.5 kHz Voice: 7K60F1E and 7K60FXE
    • Combination of 12.5 kHz Voice and Data: 7K60F1W
  • Digital Vocoder Type: AMBE +2™
  • Digital Protocol: ETSI TS 102 361-1, -2, -3
