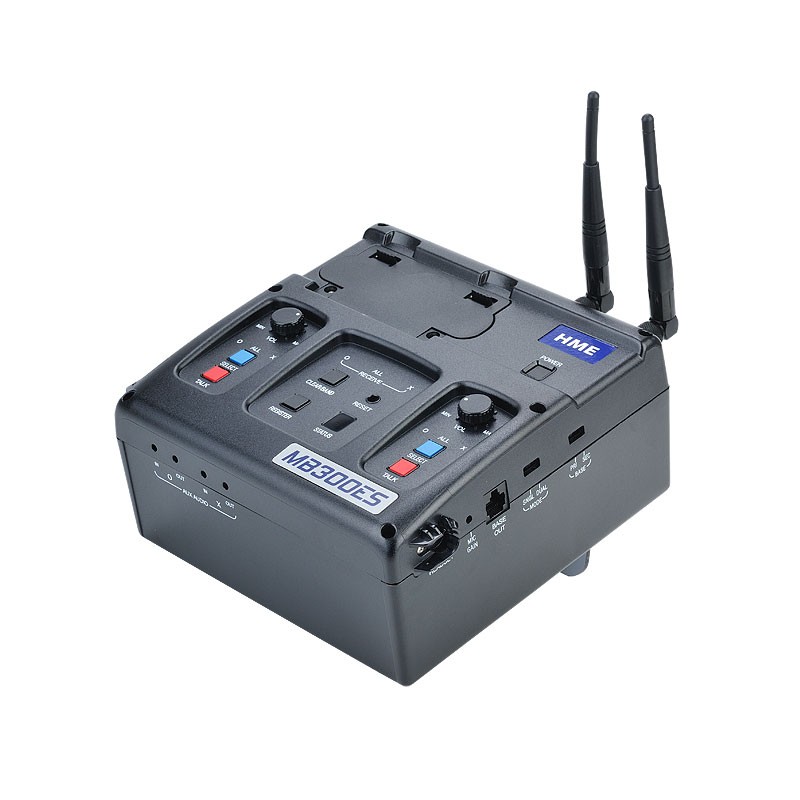

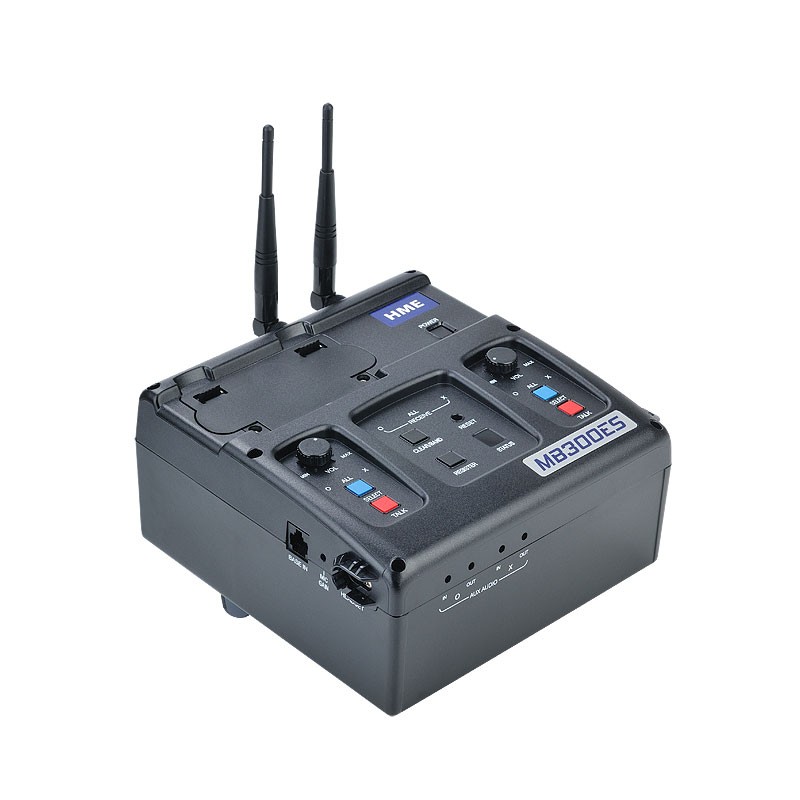

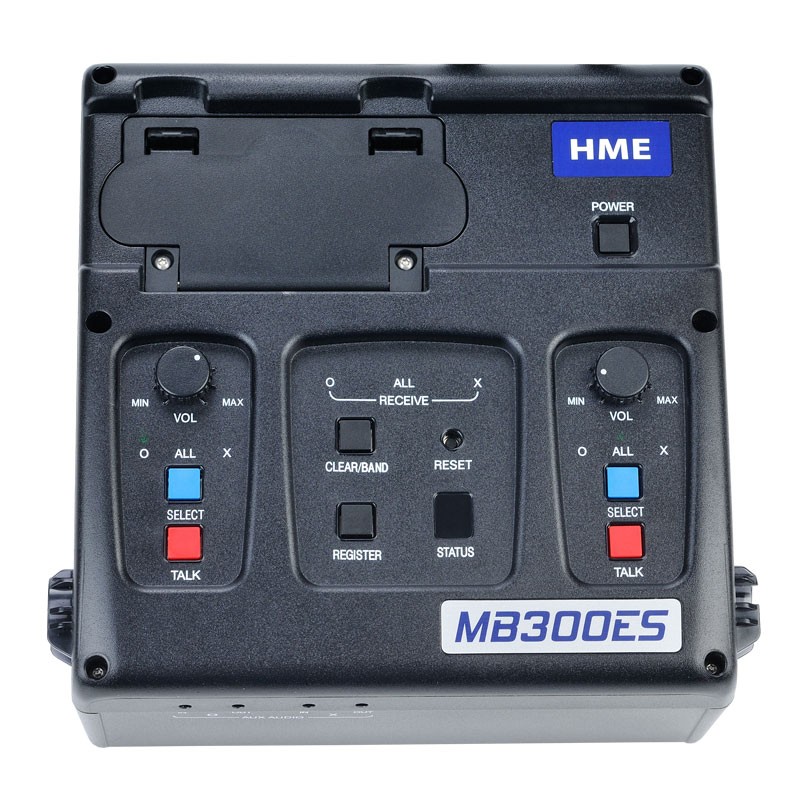

HME CZ11467 MB300ES Base Station

HME CZ11467 MB300ES Base Station HME CZ11467 MB300ES Base Station HME CZ11467 MB300ES Base Station HME CZ11467 MB300ES Base Station
With $75 Purchase »
Your Price: $2,843.10
List Price: $3,159.00

MAP Pricing »
Availability: Usually Ships In 7 - 14 days
Quantity:
Manufacturer:

Sales SKU: HMEMB300ESES
Product Code: MB300ES
MB300ES Base Station Highlights:
  • Triple diversity design - transmits the audio signal twice, at different times and frequencies, and selects the strongest signal from two different antennas for uninterrupted communication
  • Flexible power options enable the MB300 Base Station to operate on 100-240 VAC, 12-14 VDC, 1.5V "AA" batteries or an optional rechargeable BAT850 battery
  • Simple system expansion - with a standard data cable enables connection of multiple MB300 Base Stations to accommodate expanding

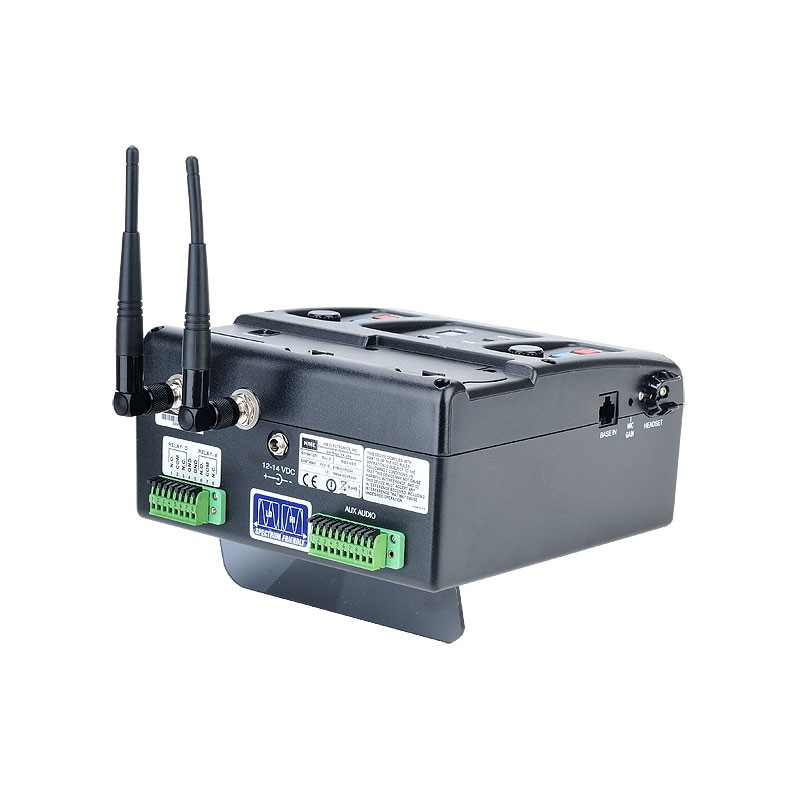

  • Auxiliary Input and Output - ten-pin terminal strip connector for easy connection to four-wire intercom systems. External interface required to connect into two-wire systems.
  • Dedicated channel relays - each channel has a dedicated relay. Remote users can activate either one or both simultaneously
  • Fast, easy set-up for strategic relocation - highly portable and very quick to set up and operate
  • Compatible configuration - easily configured to operate with almost any base radio or four-wire intercom. Available with any combination of COMMUNICATOR®s: BP300 Beltpack or the WH300 All-in-One Wireless Headset.
  • Transmit Power: 100mW Burst
  • TX & RX Antenna: 1/2 wave, dual diversity dipole
  • 4-Wire I/O: Terminal strip connector, 600 Ω balanced, level adjustable
  • Headset I/O: DIN
  • Relay I/O: 8-pin terminal strip connector, NC, COM, NO, GND (x2) (ES only)
  • Auxiliary Input: Terminal strip connector, 24 kΩ balanced, level adjustable
  • Auxiliary Output: Terminal strip connector, 600 Ω balanced, level adjustable
  • Mic Input: Electret (x2)
  • Headset Connector: Mini-DIN (x2)
  • Headset Output: 200 mW into 32 Ω
  • FCC Acceptance: Part 15 (no license required)
  • Power Requirements: 100-240 VAC, 50-60 Hz or 12-14 VDC or (6) "AA" cells (Ni-MH optional)
  • Battery Life: Up to 6 hours (with Lithium "AA")
  • Size: 8 x 8 x 3.5 in | 20.32 x 20.32 x 8.89 cm
  • Weight: 2.8 lbs | 1.3 kg
