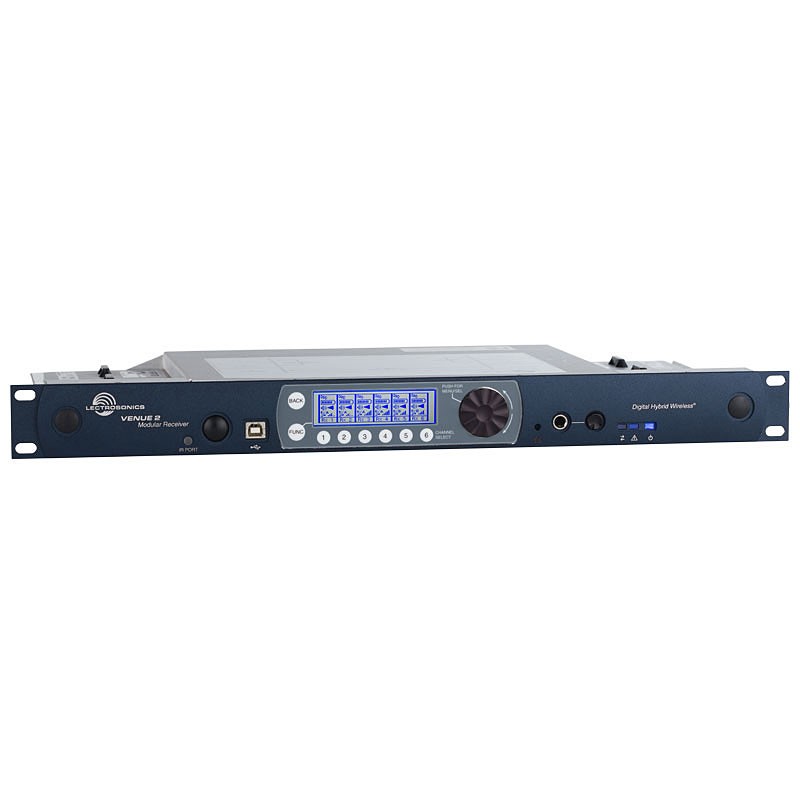

Lectrosonics Venue 2 6-Channel Modular Receiver - Assembly Only

Lectrosonics Venue 2 6-Channel Modular Receiver - Assembly Only Lectrosonics Venue 2 6-Channel Modular Receiver - Assembly Only
With $99 Purchase »
Your Price: $2,659.00
List Price: $3,718.00

Availability: Usually Ships In 7 - 14 days
* Block/Frequency

Product Code: VRM2WB | VRM2WBL | VRM2-941

NOTE: Price shown here is for the Venue 2 "Master Host Assembly" unit only with power supply. Please specify preferred frequency range when ordering.

The Lectrosonics Venue 2 Receiver is a modular solution that effectively deals with a congested RF spectrum with a variety of options that allows a system configuration to be idealized for a particular installation or application.

The receiver is comprised of several components:

  • The master rack mount host assembly
  • Up to six receiver modules
  • Built-in antenna multicoupler with loop-thru output
  • Software for setup and control

Flexibility is the core concept of the design. The receiver modules can be operated separately, each with switched diversity reception for a total of six audio channels, or operated in pairs for more robust diversity reception with one audio channel per module pair. Combinations can also be used for special applications where some modules operate independently and others are paired.

The receiver modules are easy to change with no tools required. The wideband multicoupler allows the use of any frequency module in any position, except when modules are paired for ratio diversity reception.

A major benefit of the design is the inclusion of a high quality antenna multicoupler. The multicoupler is actually a dual 1 in, 7 out splitter with six outputs for the receiver modules and an additional output as a "loop thru" for another Venue receiver. This allows multiple Venue receivers to operate from a single pair of antennas. Phantom power for remote antenna amplifiers is available from the multicoupler antenna inputs via menu selection.

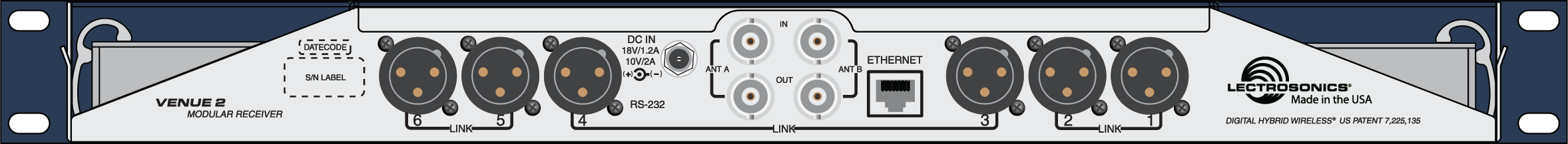

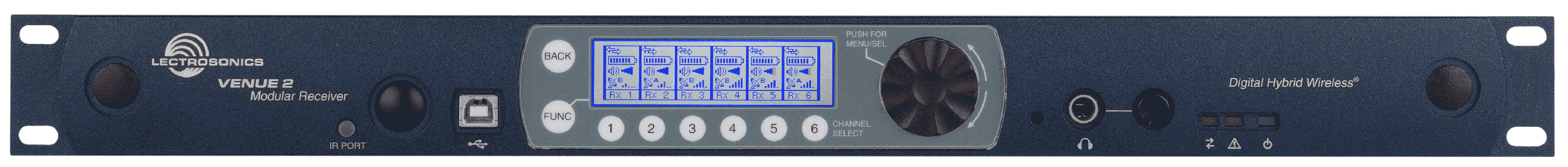

Close up images are available here: Front Panel | Rear Panel

Lectrosonics Venue 2 - Features:

  • Six-channel modular configuration
  • Ratio or Antenna Phase diversity reception
  • 3-block tuning for up to 76 MHz and 3072 synthesized UHF frequencies per receiver module
  • IR port for quick transmitter setup
  • DSP emulation modes for compatibility with analog wireless systems in addition to the Digital Hybrid mode
  • iQ dynamic tracking filters for enhanced RF performance
  • Wireless Designer setup and control software included
  • Talkback function with select transmitters
  • Ethernet, USB and RS-232 computer interface ports

CONSUMER ALERT: This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC's wireless microphone website or call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC).

  • Operating Frequencies:
    • Wideband Low: 470 - 691 MHz
    • Wideband: 537 - 768 MHz
    • 941 Traveling Band:
      • 941.525 - 951.975 MHz
      • 952.875 - 956.225 MHz
      • 956.475 - 959.825 MHz
      *North American transmitter models exclude the radio astronomy band from 608 to 614 MHz.
  • Frequency Selection: Up to 3072 frequencies
  • Frequency Selection Steps: Selectable; 100 kHz or 25 kHz
  • Digital Latency:
    • 1.5 mS (receiver only - hybrid mode)
    • 3.0 mS (receiver and transmitter in hybrid mode)
    • 3.0 mS (receiver only - analog compatibility mode)
  • Wideband Multicoupler: Built in antenna mulitcoupler covers a 230 MHz range
  • Pilot Tone: 25 to 32 kHz; 5kHz deviation; unique pilot tone frequency for each selected carrier frequency (Hybrid mode)
  • Deviation: ± 75 kHz (max) (Hybrid mode)
  • Receiver Type: Triple conversion superheterodyne
  • Frequency Stability: ± 0.001 %
  • Multicoupler Bandwidth: 470 - 691 MHz, 537 - 768 MHz, or 940 - 960 MHz
  • Front End Bandwidth:
    • iQ Filter Wide Mode: 15 MHz
    • iQ Filter Narrow Mode: 10 MHz
  • Sensitivity (20 dB Sinad): 0.9 uV
  • AM Rejection: >60 dB, 2 uV to 1 Volt
  • Image & Spurious Rejection: 85 dB
  • Third Order Intercept:
    • iQ Filter Wide Mode: +5 dBm
    • iQ Filter Narrow Mode: +12 dBm
  • Diversity Methods:
    • Antenna Combining Phase switching
    • Opti-blend™ ratio diversity
  • FM Detector: Digital pulse counting detector @ 300 kH
  • Audio Performance (Overall System):
    • Frequency Response: 32 Hz to 20 kHz (± 1 dB; 400 Series mode)
    • THD: 0.2 % (typical, 400 Series mode)
  • Signal to Noise Ratio @ Receiver Output (dB) in Hybrid operating mode:
    SmartNR No Limiting With Limiting
    OFF 103.5 108.5
    NORMAL 107 111.5
    FULL 108.5 113
    Note: The dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. The gradual onset of limiting in the design begins below full modulation, which reduces the measured figure for SNR without limiting by 4.5 dB.
  • Input Dynamic Range: 125 dB (with full Tx limiting)
  • Audio Output Level: -35 dBu to +8 dBu, in 1 dB increments
  • LCD: High resolution graphical display
  • Power Requirements: 10 VDC/2A to 18 VDC/1.2A
  • Dimensions (H x W x D): 1.75 x 19 x 7.75 in | 4.45 x 48.26 x 19.67 cm, panel to rear jacks
  • VRM Weight: 4.4 lbs | 1,984 g, with (6) VRT2 Tracking Receiver Modules
