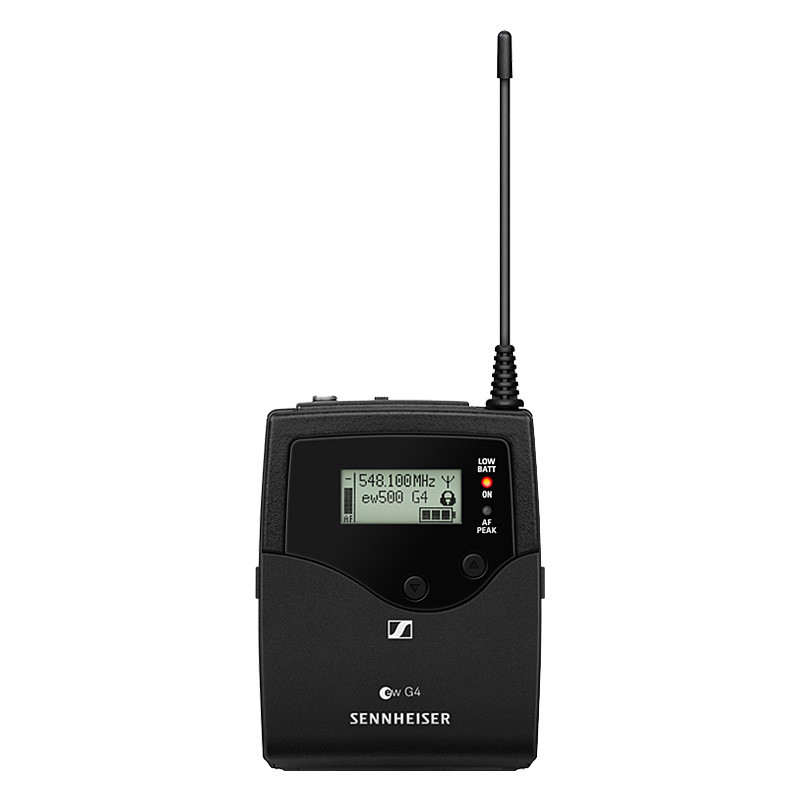

Sennheiser SK 500 G4 Pro Wireless Bodypack Transmitter

Share

The Sennheiser SK 500 G4 is a powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world's biggest live stages.owerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. Designed for use with the evolution wireless G4 100 systems, the SK 500 G4 is available in select frequencies.

Package includes:

• SK 500 G4 Pro Bodypack Transmitter
• (2) AA batteries
• Pouch
• Quick guide
• Safety guide

Sennheiser SK 500 G4 Pro Bodypack Transmitter - Features:

• Powerful bodypack transmitter with increased bandwidth and transmission power
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

• RF Characteristics:
  • Modulation: Wideband FM
  • Frequency Ranges:
    • AW+: 470 - 558 MHz
    • GW1: 558 - 608 MHz
  • Transmission Frequencies:
    • Max. 2880 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching Bandwidth: up to 72 MHz
  • Nominal/Peak Deviation: ± 24 kHz / ± 48 kHz
  • Frequency Stability: ≤ ± 15 ppm
  • RF Output Power @ 50 Ω: Switchable
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Pilot Tone Squelch: Can be switched off
• AF Characteristics:
  • Compander System: Sennheiser HDX
  • AF Frequency Response:
    • Mic: 80 - 18,000 Hz
    • Line: 25 - 18,000 Hz
  • Signal-to-Noise Ratio (1 mV, peak deviation): ≥ 115 dBA
  • THD: ≤ 0.9 %
  • Max. Mic/Line Input Voltage: 3 V_eff
  • Mic/Line Input Impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input Capacitance: Switchable
  • Setting Range for Input Sensitivity: 60 dB, adjustable in 3 dB steps
• Overall Device:
  • Temperature Range: 14° to +131° F | -10° to +55° C
  • Power Supply: (2) AA batteries, 1.5 V or BA 2015 accupack
  • Nominal Voltage: 3 V battery/2.4 V rechargeable battery
  • Current Consumption:
    • @ Nominal Voltage: typ. 180 mA
    • With Transmitter Switched Off: ≤ 25 µA
  • Operating Time: 8 hrs, typical
  • Dimensions: 3.23 x 2.52 x .94 in | 82 x 64 x 24 mm
  • Weight (incl. batteries): 5.6 oz | 160 g
