Sound Devices A20-RX-SL 2-Channel True Diversity Receiver with SpectraBand Technology

Sound Devices A20-RX-SL 2-Channel True Diversity Receiver with SpectraBand Technology Sound Devices A20-RX-SL 2-Channel True Diversity Receiver with SpectraBand Technology Sound Devices A20-RX-SL 2-Channel True Diversity Receiver with SpectraBand Technology Sound Devices A20-RX-SL 2-Channel True Diversity Receiver with SpectraBand Technology
With $99 Purchase »
Your Price: $2,645.00
List Price: $2,645.00

Availability: Out of Stock
Quantity:
Manufacturer:

Sales SKU: SOUA20-RX
Product Code: A20-RX

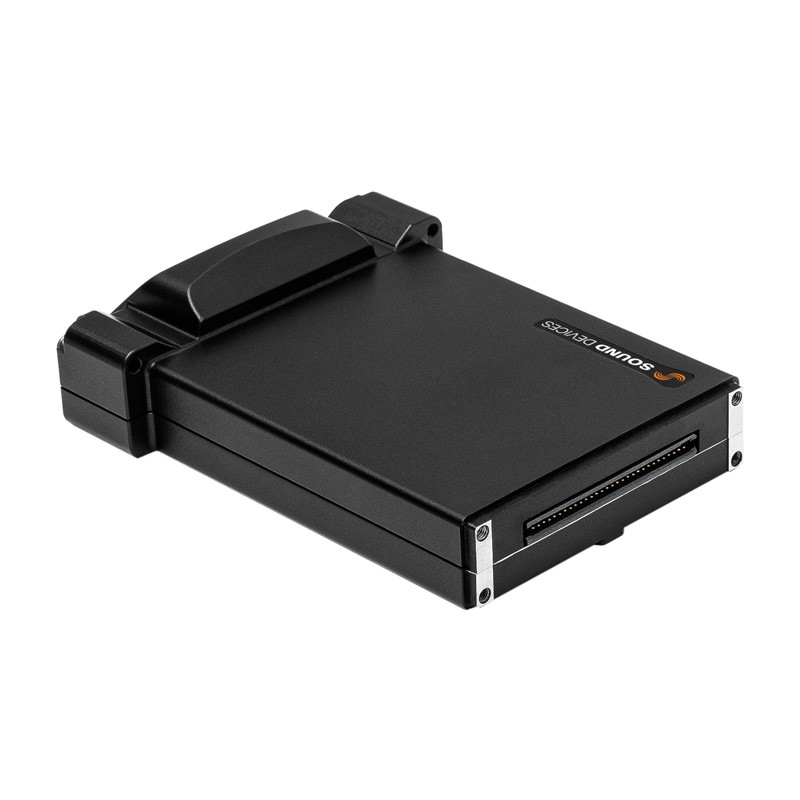

NOTE: This listing is for the Sound Devices A20-RX Receiver with no bottom adapter.


Experience ultimate flexibility as you find open spectrum away from the crowded UHF TV band. The Sound Devices A20-RX 2-Channel True Diversity Receiver features industry-exclusive SpectraBand technology which delivers a tuning range of 470 - 1525 MHz in a single unit. Superior low-loss, brick-wall SAW filters deliver excellent performance in noisy RF environments, while the AutoAssign feature makes frequency selection and setting quick and easy.

Sound Devices A20-RX Receiver - Features:

  • SpectraBand Technology: compatible with the A20-Mini from 470 MHz - 1525 MHz and all tuning ranges of the A10-TX.
  • Advanced Digital True Diversity topology uses two complete RF receivers for each of the two channels, with four RF receivers in total.
  • SuperSlot compatible with the SL-2 and 8-Series mixer-recorders.
  • State-of-the-art 100% digital long-range modulation delivers the longest transmission distance of any digital system on the market.¹
  • GainForward Architecture compatible with the A20-Mini. Set the Mini’s gain levels via trim control (with an 8-Series) or at the A20-RX (for other mixers).
  • Full 10 Hz - 20 kHz audio bandwidth; 100% digital RF modulation and transmission.
  • Excellent immunity from nearby IFB or camera hop transmitters without the need for external filters or extra cabling.
  • Maximum connectivity: SuperSlot, XLR, and TA3 backplates, A-RXMON headphone amp, and A-15PIN two-channel AES Sony camera slot adapter.
  • Analog line-level or AES digital audio output.

With SpectraBand Technology, you won't need to purchase another receiver dedicated to a specific country or frequency band. SpectraBand gives you access to nearly twice the frequencies available with other systems worldwide – almost 2600 available channels.

The A20-RX's AutoAssign scans a tuning band and selects available frequencies for you—perfect for any fast-paced shoot. Meanwhile, brick-wall SAW filters eliminate out-of-band interference so you can get the best RF performance possible. Enjoy immunity from nearby IFB or camera hop transmitters without the need for external filters or extra cabling.

¹ When comparing systems with same transmit power, same antennas, and same transmission frequency.

  • RF Tuning:
  • Modulation:
    • Proprietary digital RF modulation
    • Standard or Long Range, selectable
  • Latency:
    • Standard modulation = 2 ms
    • Long Range modulation = 3.9 ms
    • Measured at analog output
  • Audio Frequency Response: 10 Hz - 20 kHz
  • Maximum Output Level: +14 dBu, +2 dBu, -10 dBu, or -22 dBu, menu-selectable, with a 0 dBFS signal at the transmitter input, 130 ohms output impedance
  • Digital Audio Output: AES3 balanced connection, 110 ohms output impedance, left=channel 1, right=channel 2

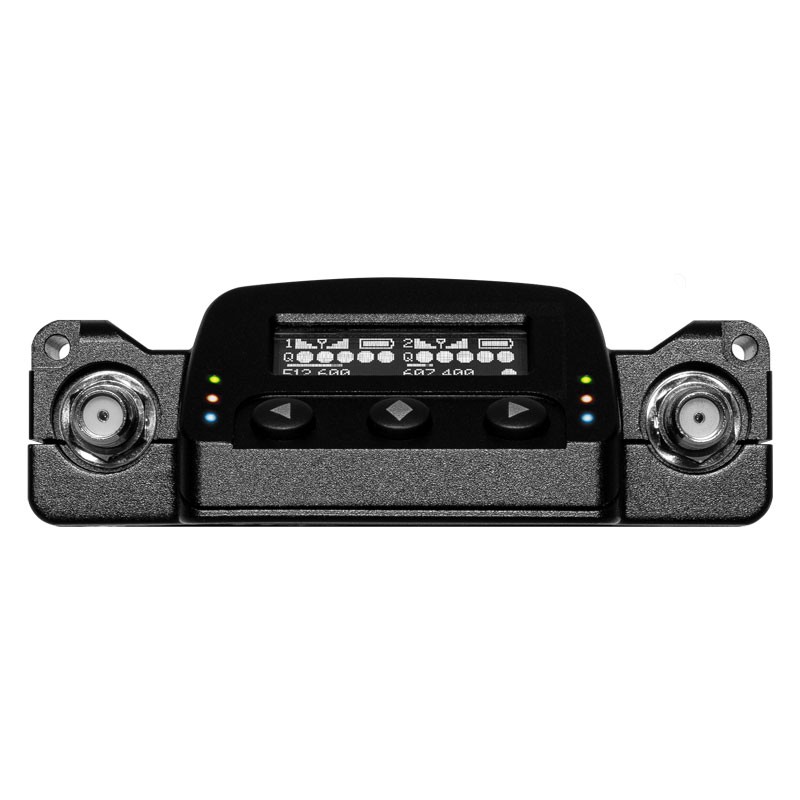

  • Menu & Controls: OLED menu display, 3 button navigation
  • Privacy: User settable 4-digit PIN
  • Powering: 6 - 18 VDC
  • Operating Temperature Range: 14 to +131 °F | -10 to +55 °C
  • Dimensions(H x W x D): 4.48 in x 3.09 in x 1.05 in | 113.7 mm x 78.5 mm x 26.6 mm, without backplate accessories
  • Weight: 5.8 oz | 165 g, without backplate accessories
