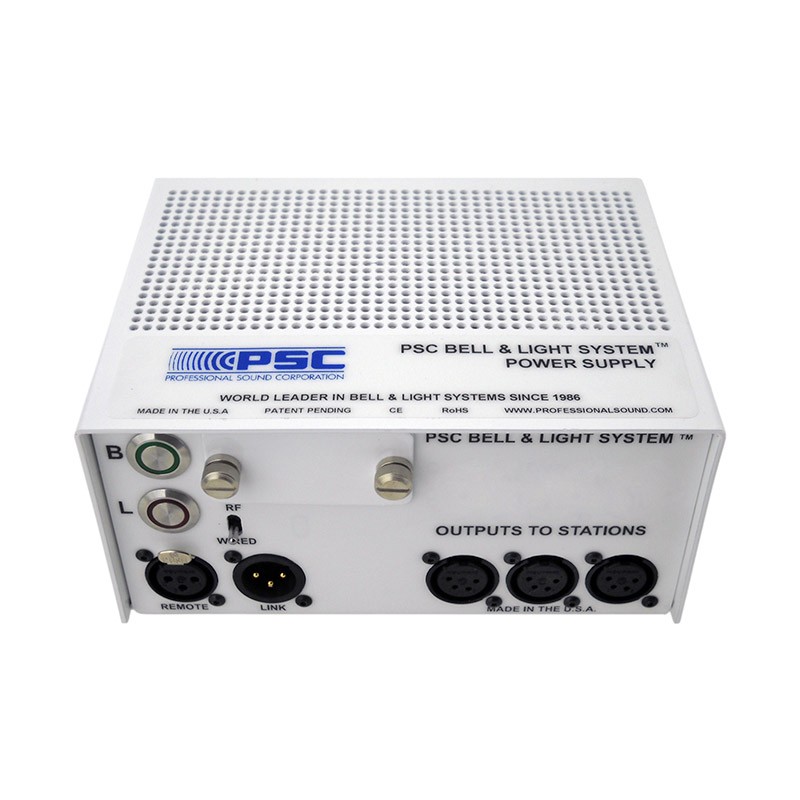

PSC FBL2PS Power Supply for Bell & Light System

PSC FBL2PS Power Supply for Bell & Light System PSC FBL2PS Power Supply for Bell & Light System PSC FBL2PS Power Supply for Bell & Light System PSC FBL2PS Power Supply for Bell & Light System
With $99 Purchase »
Your Price: $845.50
List Price: $890.00

Availability: Out of Stock

Product Code: FBL2PS

PSC FBL2PS Power Supply for Bell & Light System- Features:

Dual Color Mode for Easy Set Traffic Coordination
This feature originates in the Power Supply and requires the use of the PSC Dual Color Stations.

The Most Compact Power Supply in the Industry
The PSC Power Supply is a full 20% smaller than the competitions'.

Operates up to 80 Stations
Yes, even though it is the most compact power supply in the industry, the PSC Power Supply will operate up to 80 Bell & Light Stations. That is a nearly 3x more stations than any competitor.

Four Way Operation
'Wired Manual', 'Wired Fully Automatic', 'Wireless Automatic', 'Recorder Driven Wired Fully Automatic'...these features alone make PSC the obvious choice.

Fully Automatic Mode
Self-generates bell start and stop pulses. Upon activation at the start of a take on a film set (automatic modes) the power supply generates one long blast of the bell while simultaneously starting the lights. At the end of the take, when the direct yells "cut", the power supply turns the lights from Red to Green and then gives two short blasts of the bell. These timing functions are controlled and generated automatically. This fully automatic mode is available when driven directly from specific recorders or via the optional Wireless Remote Control.

Link Connector
This is an original PSC feature used to allow easy and convenient "Daisy Chain" wiring of additional Power Supplies for use in very large systems.

Coming Soon: Optional Wireless Remote Control
The optional Wireless Remote Control system frees up the operator from being tied to a cabled remote control. The system uses Lynx™ Technology to provide both extreme range, reliability and security. This system is pre-programmed with an 80-bit encryption security key for trouble free operation anywhere and offers up to a one-mile operational range.

  • Input Power: 90 to 264 Vac, 47 to 63 Hz
  • Output Power: 13.8 Vdc nominal
  • Control Functions:
    • Push Button Switches - "B" for Bell, "L" for Light
    • Toggle Switches - Manual or Automatic, Wired or RF
  • Station Capacity: 80 stations
  • Housing Material: 6061-T6 aircraft aluminum
  • Finish: Gloss white, high durability powder coat
  • Size: 6.8 x 5.2 x 3.25 in | 17.25 x 13.2 x 8.3 cm
  • Weight: 2.2 lb | 1 kg
