PSC Power Star LiFE

With $75 Purchase »
Your Price: $1,935.50
List Price: $2,037.25

Availability: Usually Ships In 7 - 14 days

Rent For: $60.00/day
Quantity:
Manufacturer:

Sales SKU: PSCPWRSTARLIFE
Product Code: FPSC0026LIFE

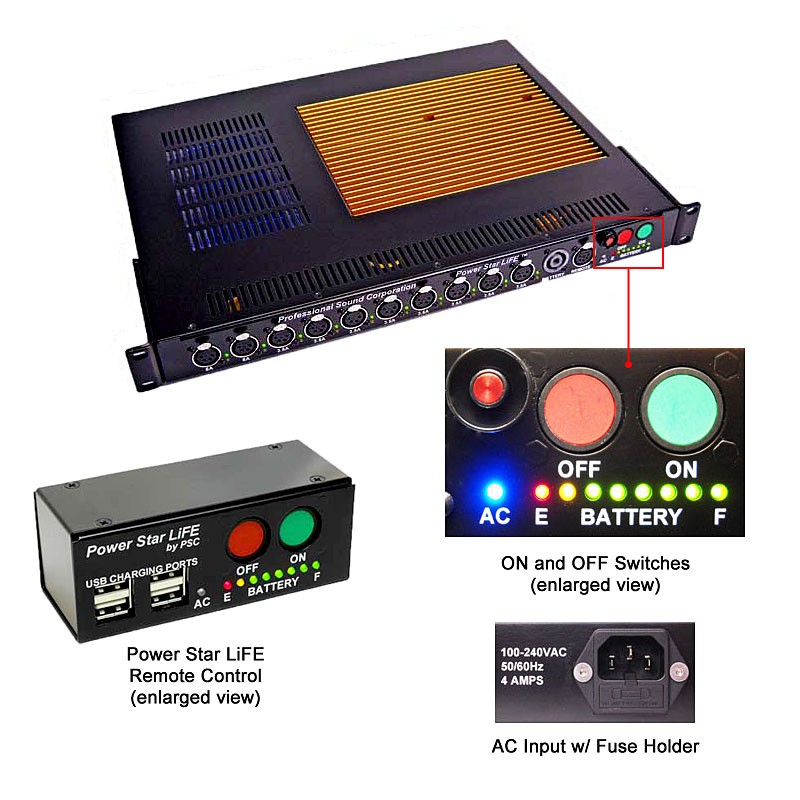

LiFE Battery Pack: The heart of the system is PSC's custom, 12.8 volt, 20 amp hour Lithium Iron Phosphate battery pack. The individual cells were chosen for their high capacity, and ability to be rapidly charged or discharged. While other cells can only be charged and discharged at a 0.7C amp hour rate, PSC's are rated at a full 3C rate. Additionally, the cells are factory measured, graded and matched into precision sets for a better quality battery. Unlike other brands, the PSC LiFE battery pack contains built-in cell balancing electronics for a long life.

AC Supply & Charger: The PSC Power Star LiFE is built around a highly integrated 500 watt, switching power supply. The AC input is fully filtered for both common mode and differential noise, harmonic content and spikes. PSC designed and built-in a current limiting function to further protect their power supply under extreme conditions. In addition, PSC's charger has been designed to provide clean, quiet charging power so as to not cause users noise problems in the field.

Power Distribution & Output Filtering: The DC path of the Power Star LiFE has been designed to provide clean, quiet, reliable DC power for all of your audio and video equipment needs. Each output has its own dedicated output filter that contains both audio and RF frequency filters. Each output is also individually Poly-fuse protected and monitored via easy to read front panel LED indication. There are a total of ten outputs: (2) 8 Amp Outputs and (8) 3.5 Amp Outputs. To lower internal power losses and extend battery life, the circuit boards are made with 4 oz. copper, four times the industry standard and a PSC exclusive feature!

Remote Control Meter: Every PSC Power Star LiFE comes with a small remote control box. The use of the remote control allows the Power Star LiFE to be mounted down and out of the way on your sound cart, if desired. This remote contains an additional set of "On and Off" controls, an additional battery level meter and also four USB charging ports. The PSC Power Star LiFE can be operated with or without the remote control box.

Cooling: The Power Star LiFE is convection cooled using a custom made, high capacity aluminum heat sink extrusion. This heat sink provides more than 375 square inches (2419 square cm) of heat dissipation surface. It has been anodized gold for long service life in the field.

Rackmounting: The Power Star LiFE is equipped with multiple point rack rail mounting brackets. These brackets can be mounted from either the front or the rear of the Power Star Life.

Features:

  • Highest capacity AC power supply
  • Properly engineered system cooling
  • Rapid recharge LiFE battery
  • Individual output monitoring
  • Exclusive PSC silent power technology
  • 4 amps of USB charging current available
  • Convenient multi-colored "fuel gauge"
  • Built-in battery cell balancing for longer battery life



  • Temperature Range: -4°F to +122°F | -20°C to +50°C
  • AC Input: 100 - 240Vac, 47Hz -63Hz
  • Outputs: (2) 8 Amp, (8) 3.5 Amp
  • Output Voltage: 12.8Vdc nominal
  • Output Current: On LiFE battery, 25 Amps. AC only, 24 Amps
  • Charging Time: Typical Cart 1.5 hours, no load (all equipment off) 1 hour
  • USB Charging Port: 4 ports, total output 5Vdc at 4 Amps
  • LiFE Battery Capacity: 12.8 Volts @ 20 Amp hours (256 watts)
  • Battery Connector: SpeakOn 2 pole (mating connector Neutrik NL2FC)
  • Dimensions (W x D x H): 17.50 x 13 x 1.75 in | 44.5 x 33 x 3.8 cm
  • Weight: 13.8 lbs | 6.27 kg
