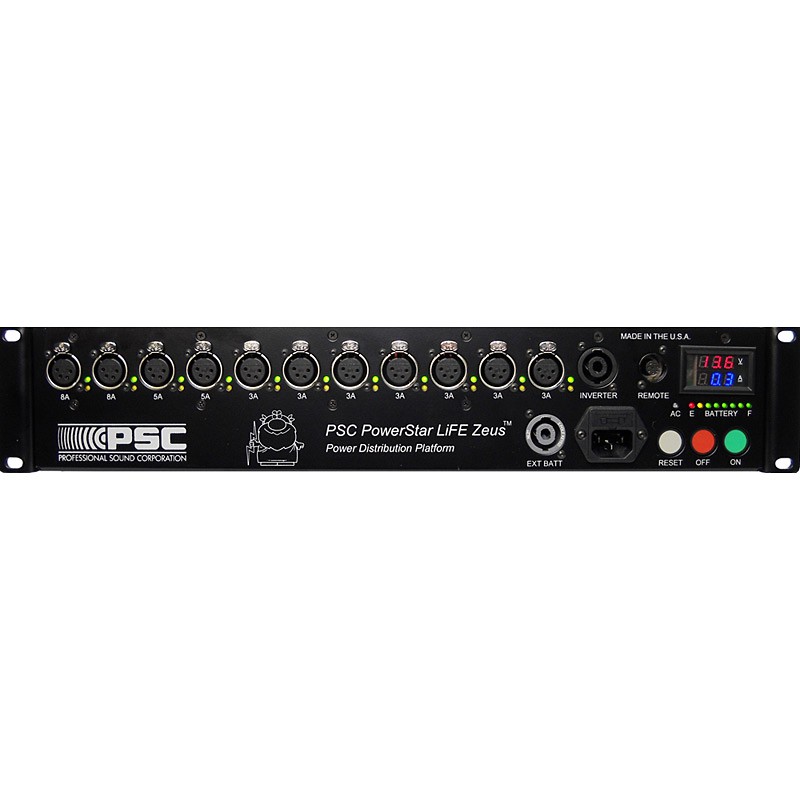

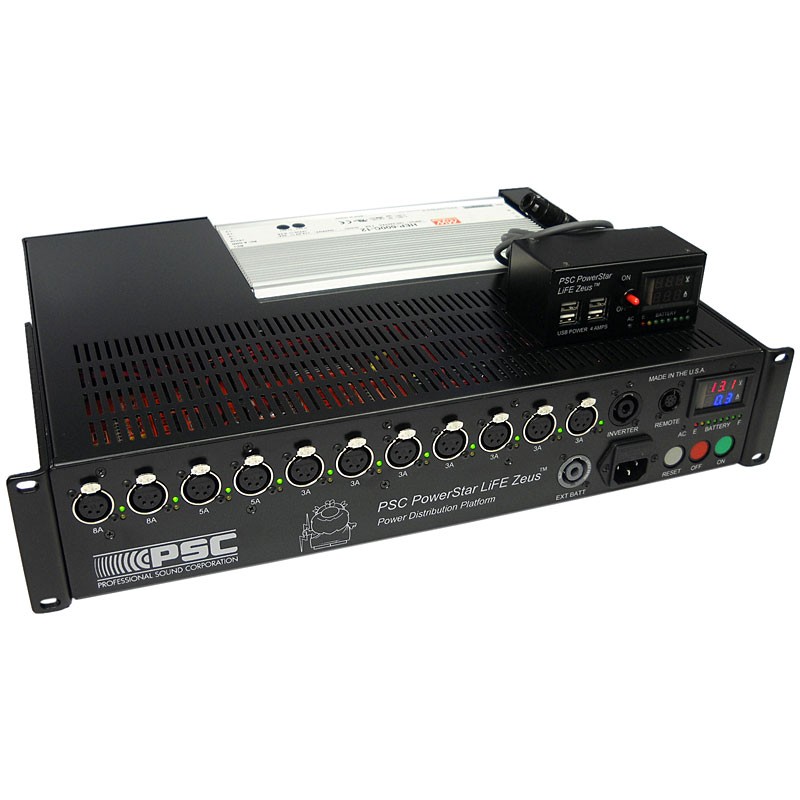

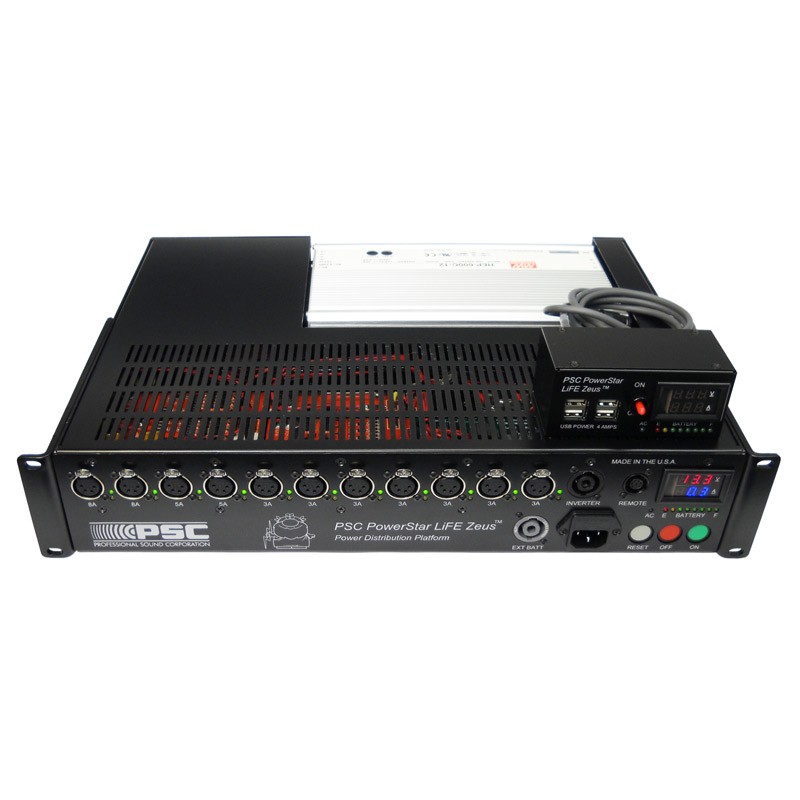

PSC Power Star LiFE Zeus Ultimate Power Distribution System

PSC Power Star LiFE Zeus Ultimate Power Distribution System PSC Power Star LiFE Zeus Ultimate Power Distribution System PSC Power Star LiFE Zeus Ultimate Power Distribution System PSC Power Star LiFE Zeus Ultimate Power Distribution System PSC Power Star LiFE Zeus Ultimate Power Distribution System PSC Power Star LiFE Zeus Ultimate Power Distribution System
With $99 Purchase »
Your Price: $3,499.00
List Price: $3,683.00

Availability: Out of Stock

Product Code: FPSC0026ZEUS

NOTE: Due to the very high power LiFePO4 battery rating, this device can only be shipped via ground transportation.

The PSC Power Star LiFE Zeus is the ultimate high power rechargeable power supply and distribution platform. Engineered using PSC's 30 years of power supply experience, this two rack space rechargeable power supply will provide you with a "no compromise" power solution for your sound or video cart.

LiFE Battery Pack:
The heart of the system is the custom, triple redundant 12.8 volt, 60 amp hour Lithium Iron Phosphate battery pack. Each of the three onboard 20 amp battery packs contain individual cells that were chosen for their high capacity, and ability to be rapidly charged or discharged. While other cells can only be charged and discharged at a 0.7C amp hour rate, PSC's are rated at a full 3C rate. Additionally, the cells are factory measured, graded and matched into precision sets for a better quality battery. Unlike other brands, the PSC LiFE battery pack contains built-in cell balancing electronics for a long life.

AC Supply & Charger:
The PSC Power Star LiFE Zeus is built around a highly integrated 600 watt, switching power supply/charger. The AC input is fully filtered for common mode and differential noise, harmonic content and spikes. This supply contains a built in current limiting function to further protect itself under extreme conditions. In addition, the Zeus charger has been designed to provide clean, quiet charging power so as to not cause you noise problems in the field.

Power Distribution & Output Filtering:
The DC path of the LiFE Zeus has been designed to provide clean, quiet, reliable DC power for all of your audio and video equipment needs. Each output has its own dedicated output filter that contains both audio and RF frequency filters. Each output is also individually Poly-fuse protected and monitored via easy to read front panel LED indication. There are a total of eleven outputs: two (2) 8 Amp Outputs, two (2) 5 Amp Outputs and seven (7) 3 Amp Outputs. To lower internal power losses and extend battery life, Zeus' circuit boards are made with 4 oz. copper, 4 times the industry standard and a PSC exclusive feature!

Remote Control - Meter:
Every LiFE Zeus comes with a small remote control box. The use of the remote control allows the Zeus to be mounted down and out of the way on your sound cart if desired. This remote contains an additional set of "On and Off" controls, an additional battery "Fuel Gauge", digital LED Volt and Current meters and also four (4) USB charging ports. The Zeus can be operated with or without the remote control box.

The Power Star LiFE Zeus is convection cooled without the use of any fans.

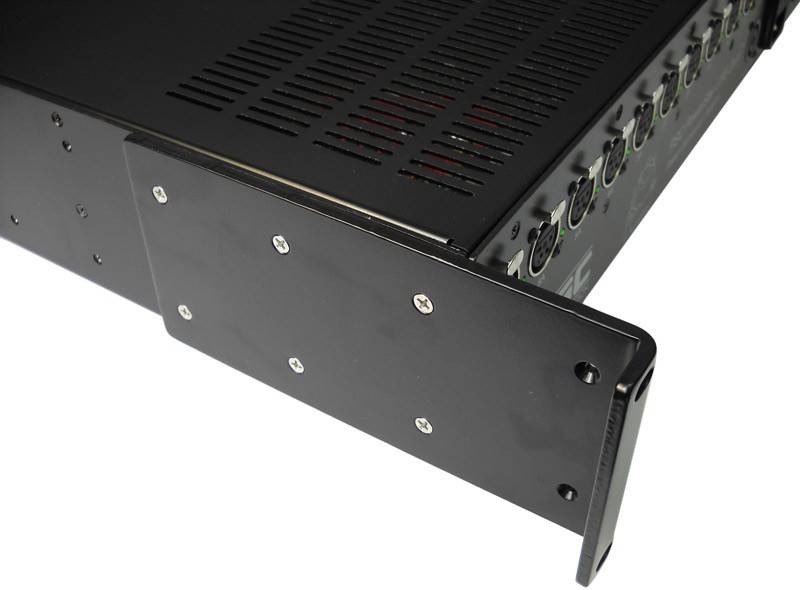

Rack Mounting: The Zeus is equipped with multiple point rack rail mounting brackets. These brackets can be mounted from either the front or the rear of the Zeus and can be offset to provide clearance for XLR connectors in tight rack space environments.

PSC Power Star LiFE Zeus - Features:

  • 60 Amp hour, rapid recharge LiFE battery
  • 35 Amp high capacity AC power supply
  • Dedicated "inverter" power output
  • Two 8A outputs, two 5A outputs, seven 3A outputs
  • Properly engineered system cooling
  • Individual output monitoring
  • Exclusive PSC silent power technology
  • 4 Amps of USB charging current available
  • Convenient multi-colored “fuel gauge”
  • Digital LED volt and current meters
  • Built-in battery cell balancing for longer battery life
  • AC Input: 100 - 240 Vac, 47 Hz - 63 Hz
  • AC Input Fuse: 15 Amp, slow blow, 5 x 20 mm Glass
  • Outputs:
    • 4-Pin XLRs: (2) 8 Amp, (2) 5 Amp, (7) 3 Amp
    • 4-Pin SpeakOn for Inverter: 18 Amps
  • Output Voltage: 12.8 Vdc nominal
  • Output Current: On LiFE Battery, 60 Amps; AC only, 35 Amps
  • Charging Time: typical cart 3 hours, no load (all equipment off) 1.5 to 2 hours
  • USB Charging Port: 4 ports, total output 5 Vdc at 4 Amps
  • LiFE Battery Capacity: 2.8 Volts @ 60 Amp Hours (768 watts)
  • Battery Connector: SpeakOn 2-pole (mating connector Neutrik NL2FC)
  • Inverter Connector: SpeakON 4-pole (mating connector Neutrik NL4FC)
  • Size (W x D x H): 17.5 x 13.5 x 3.5 | 44.5 x 34 x 7.6 cm
  • Weight: 31 lbs | 14 kg
