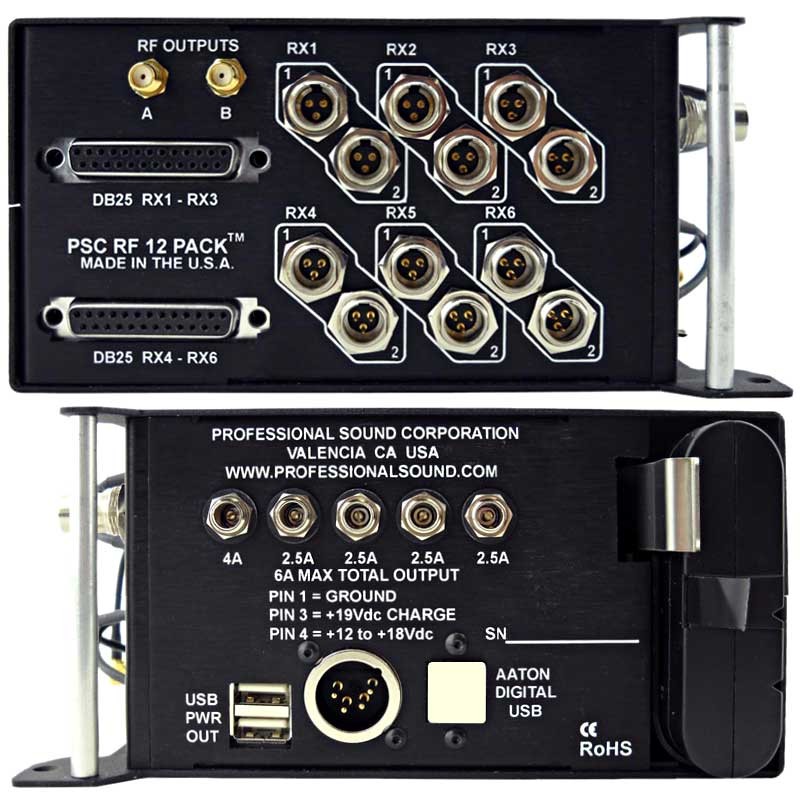

The PSC RF Multi SR 12 Pack houses and supports up to six slot receivers. It provides built-in low noise RF distribution and is offered with several different custom operating bandpass filters:

  • Single Band - 470 to 700 Mhz
  • Dual Band - 470 to 618 Mhz and also Lectrosonics Block 941 frequencies
  • Wide Band - 450 to 950 Mhz

Remote antenna powering is built-in and is easy to operate via a simple toggle switch. In addition, the PSC RF 12 Pack will house and operate from a rechargeable smart battery. Special power management electronics allow the smart battery to operate the unit, be recharged within the unit and provide regulated DC power distribution to power your other gear. A multi-colored LED "Fuel Gauge" is provided to monitor the smart battery charge level. In addition, RF "Flow Through" is provided for adding additional RF gear.

PSR RF Multi SR 12 Pack - Features:

  • Supports up to 6 slot receivers
  • Provides RF distribution
  • Provides remote antenna power
  • Smart battery slot for rechargeable operation
  • Built in power management/charging circuitry
  • Built in regulated dc power distribution
  • RF "flow through" outputs
  • Multi-colored led smart battery fuel gauge
  • Multiple threaded mounting points
  • Housing Material: Aircraft Aluminum
  • Housing Finish: Black anodize Type II, Black powder coating
  • External Power:
    • No Battery Charging: 12 - 16Vdc, 1.4 Amps nominal, 8 Amps maximum; Pin 1 = Ground, Pin 4 = +12 to +16Vdc
    • For Battery Charging: 19Vdc, 7.9 Amps minimum power supply rating; Pin 1 = Ground, Pin 3 = +19Vdc
  • RF Inputs: BNC connectors, 50 Ohm
  • RF Outputs: SMA connectors, 50 Ohm
  • RF Frequency Range:
    • Single Band - 470 to 700 Mhz
    • Dual Band - 470 to 618 Mhz and also Lectrosonics Block 941 frequencies
    • Wide Band - 450 to 950 Mhz
  • DC Power Outputs: Co-axial power connectors (Switchcraft 712A); 1 x 4 Amp, 4 x 2.5 Amps, 6 Amps total maximum
  • Audio Output Connectors: TA3M mini XLR male connectors, balanced signal (x12); DB-25 female connectors, balanced signal (x2) ADAT wiring standard
  • Rechargeable Battery: Smart battery, 98 Watt/hour or 99 Watt/hour; built-in 4 Amp charger
  • Size: 13 x 6.5 x 3.3 in | 33 x 16.5 x 8.3 cm
  • Weight: 4 lbs | 1.8 kg
