Schoeps V4 U Studio Vocal Microphone

Schoeps V4 U Studio Vocal Microphone Schoeps V4 U Studio Vocal Microphone Schoeps V4 U Studio Vocal Microphone Schoeps V4 U Studio Vocal Microphone Schoeps V4 U Studio Vocal Microphone Schoeps V4 U Studio Vocal Microphone
With $99 Purchase »
Your Price: $2,825.00
List Price: $2,825.00

Availability: Out of Stock
* Color
Quantity:
Manufacturer:

Sales SKU: SCHV4U-BL|SCHV4U-GY
Product Code: V4 Ub | V4 Ug

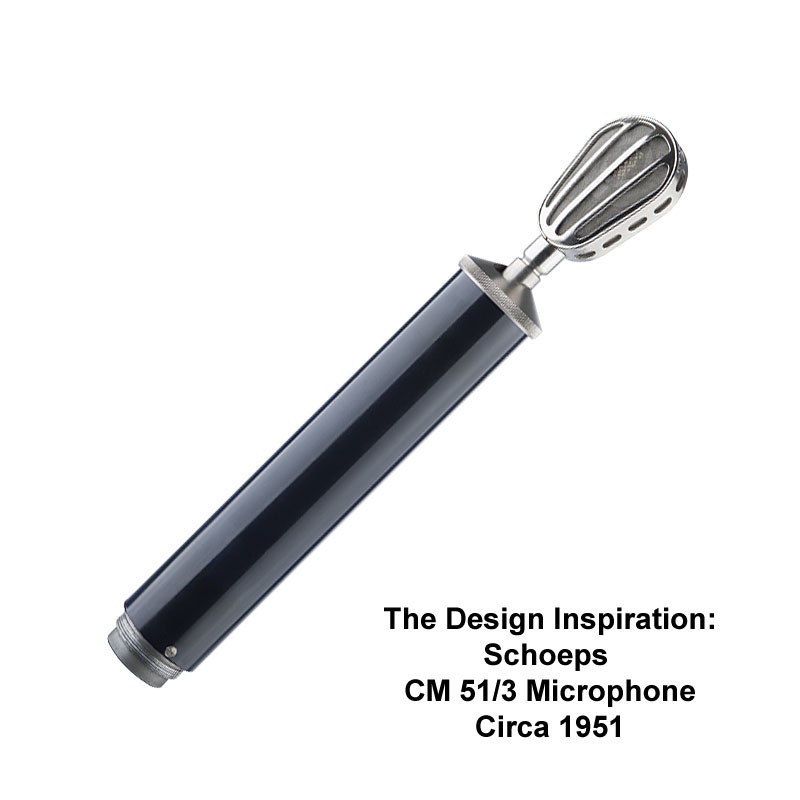

The Schoeps V4 U is a studio vocal microphone that unites the outstanding technical characteristics typical of Schoeps with a timeless, classic design. The "look" of the V4 U is based on the Schoeps CM 51/3 microphone from 1951. But the V4 U is a thoroughly modern studio microphone. Its capsule, circuitry and mechanical construction are the result of extensive new development. It produces a warm, clear sonic character with smoothly rolled-off diffuse-field response. The V4's newly designed electronics offer a very high maximum sound pressure level and excellent electromagnetic compatibility.

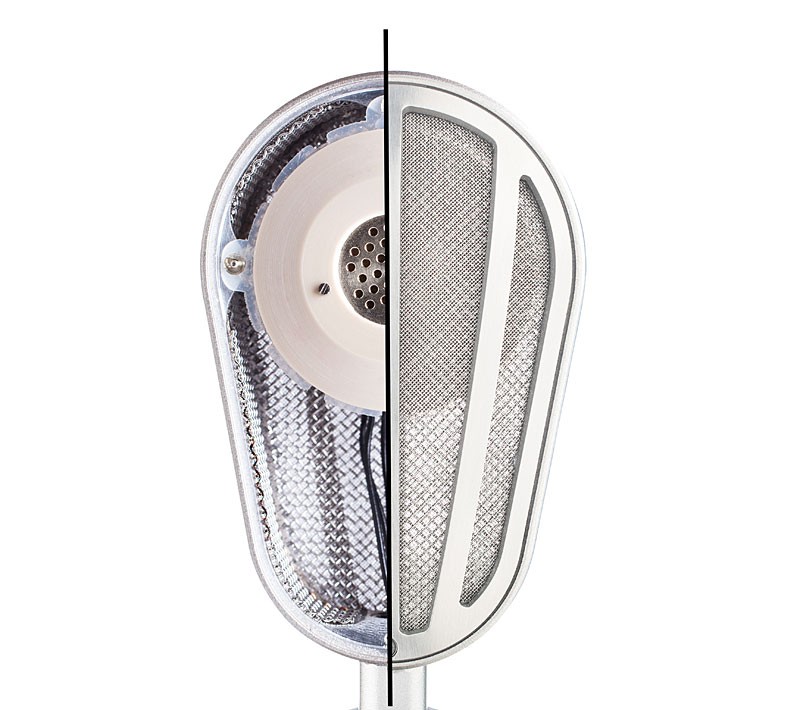

A unique 33 mm beveled collar around the diaphragm causes its directivity to increase steadily and smoothly at high frequencies, as in a large-diaphragm microphone. Meanwhile, the superior acoustic qualities of a small-diaphragm capsule are maintained. The capsule is elastically suspended internally to reduce handling noise and other solid-borne sound. The head can be angled ± 20°.

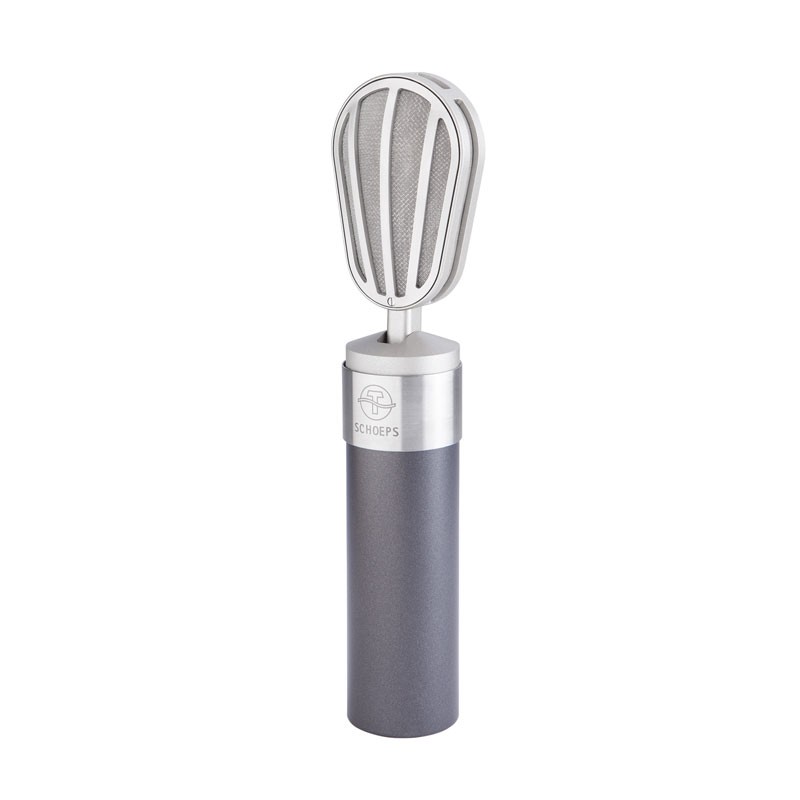

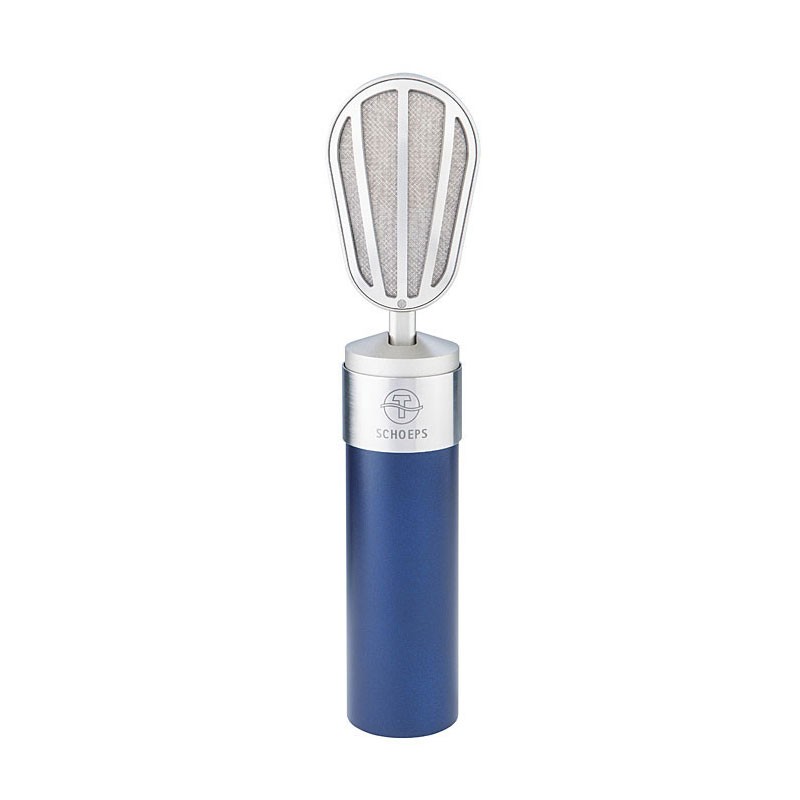

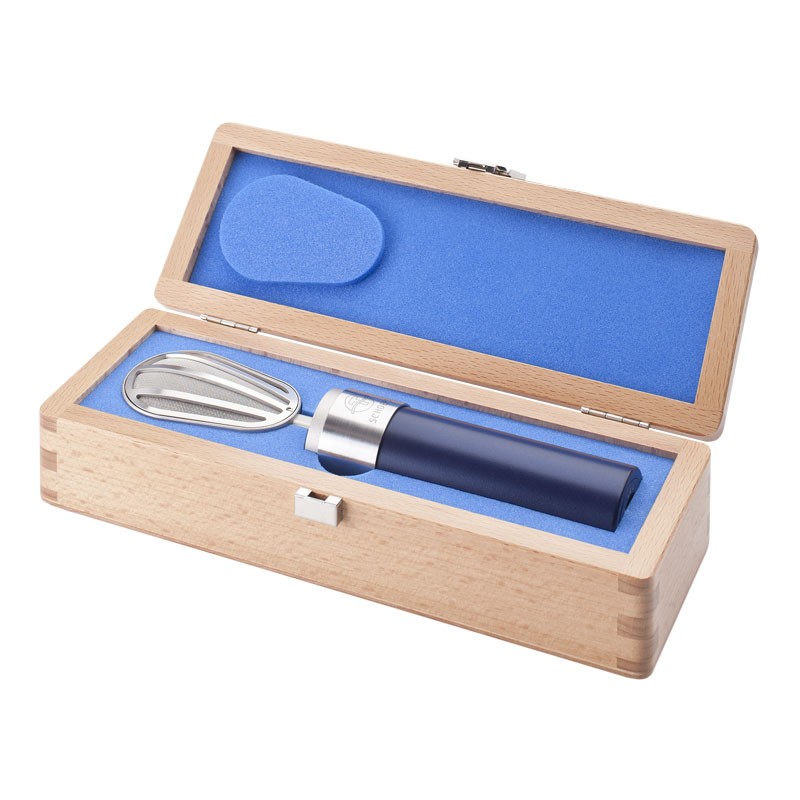

The V4 U is available in either a Blue or Gray finish by itself and packaged in wooden case, or as a "V4 USM Set" which contains the microphone, a wooden case and the USM-V4 elastic suspension from Rycote.

Features:

  • Optimal on-axis frequency response featuring a mild high-frequency lift
  • Very smooth polar response - carefully controlled narrowing of the pattern at HF
  • Diffuse-field response parallel to the 0° response with a gentle roll-off at high frequencies
  • No irregularities in polar response occur at any frequency
  • Directional pattern is never broader than cardioid at any frequency
  • Maximum sound pressure level of 145 dB SPL, Maximum output level = 5 V

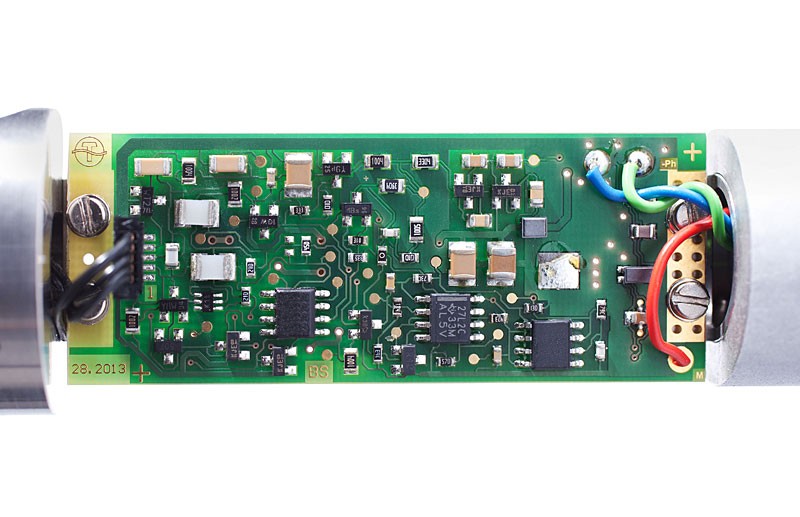

  • Output Stage: newly-developed bridge-type balanced output circuit
  • Truly symmetrical balanced output, transformerless and without capacitors
  • Low output impedance that is frequency independent
  • Optimal protection from electromagnetic interference
  • +48V phantom power via XLR-3



  • Polar Pattern: Cardioid
  • Frequency Range: 50 Hz - 22 kHz
  • Sensitivity: 16mV/Pa
  • Equivalent Noise Level (A-weighted): 15dB-A
  • Equivalent Noise Level (CCIR): 25dB
  • Signal-To-Noise Ratio (A-weighted): 79dB-A
  • Maximum Sound Pressure Level at 0.5%THD: 144dB SPL
  • Maximum Output Voltage: 4.8V
  • Low Cut Frequency: 40 Hz
  • Powering Voltage: 48V
  • Current Consumption: 3.3 mA
  • Output Impedance (10 Hz to 0 kHz): 97 Ohms
  • Head Swivel Degree Span: ± 20°
  • Dimensions (Length x Cylinder Diameter x Capsule Width): 7.6 x 1.3 x 1.8 in | 194 x 34 x 45 mm
  • Weight: 10.7 oz. | 302 g
