Shure Axient Digital ADX1 Showlink-Enabled Bodypack Transmitter, with LEMO3 Connector

Shure Axient Digital ADX1 Showlink-Enabled Bodypack Transmitter, with LEMO3 Connector Shure Axient Digital ADX1 Showlink-Enabled Bodypack Transmitter, with LEMO3 Connector Shure Axient Digital ADX1 Showlink-Enabled Bodypack Transmitter, with LEMO3 Connector
With $99 Purchase »
Your Price: $1,599.00
List Price: $1,999.00

Availability: Usually Ships In 7 - 14 days
* Block/Frequency
Quantity:
Manufacturer:

Sales SKU: SHUADX1L3-G57|SHUADX1L3-K54|SHUADX1L3-X55
Product Code: ADX1LEMO3-G57 | ADX1LEMO3-K54 | ADX1LEMO3-X55

The Shure ADX1LEMO is available in the following frequency bands:

  • G57: 470 - 616 MHz with a gap between 608 - 614 MHz
  • K54: 606 - 663 MHz
  • X55: 941 - 960 MHz

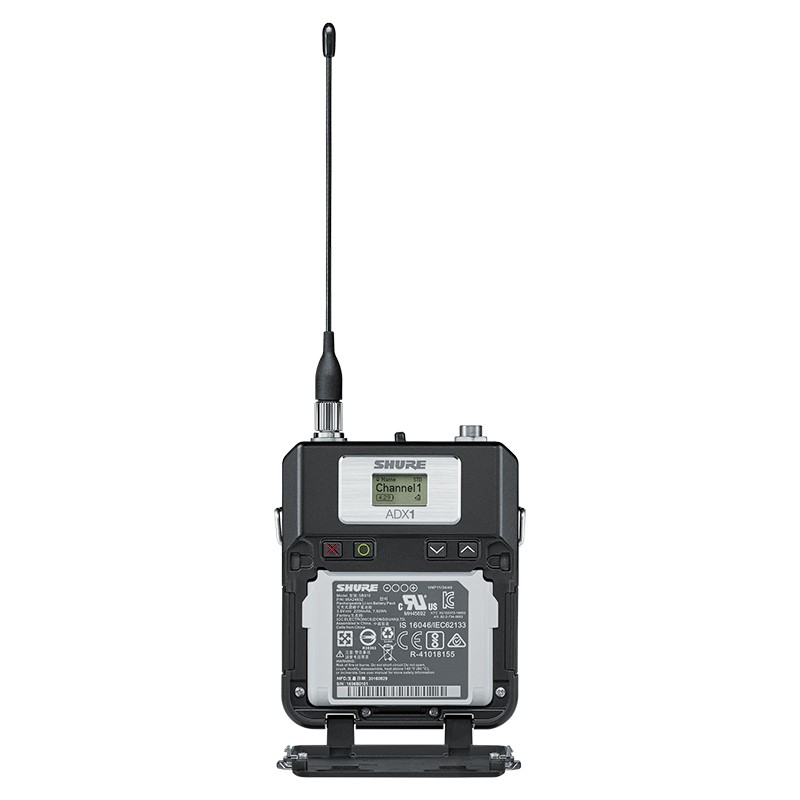

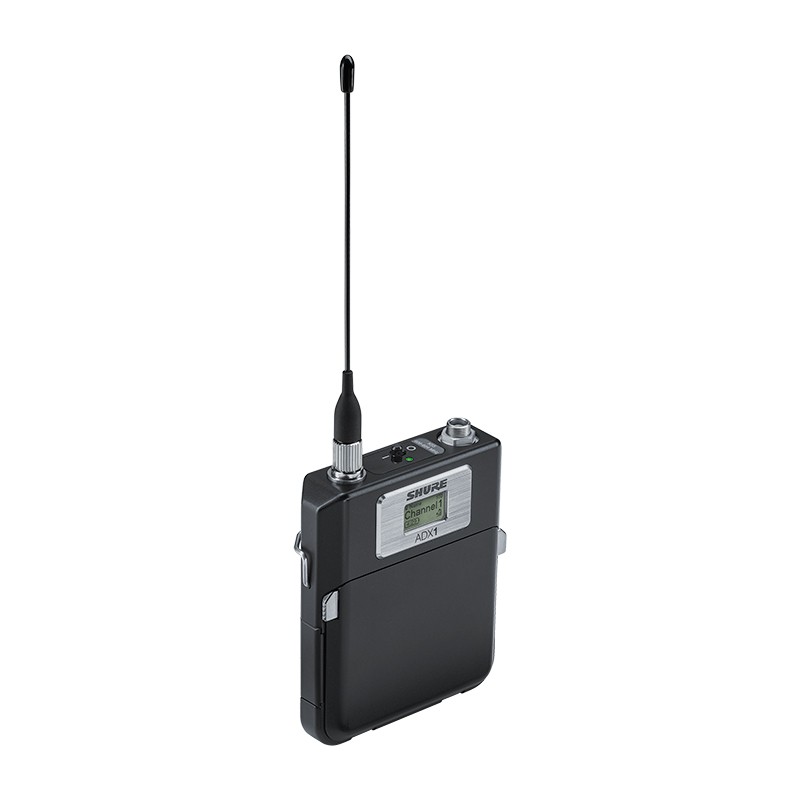

The Shure ADX1LEMO is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

The ADX1LEMO, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. Includes two SB910 rechargeable batteries.

Shure Axient Digital ADX1LEMO Bodypack Transmitter - Features:

  • Removable antenna and fully concealed buttons and switch

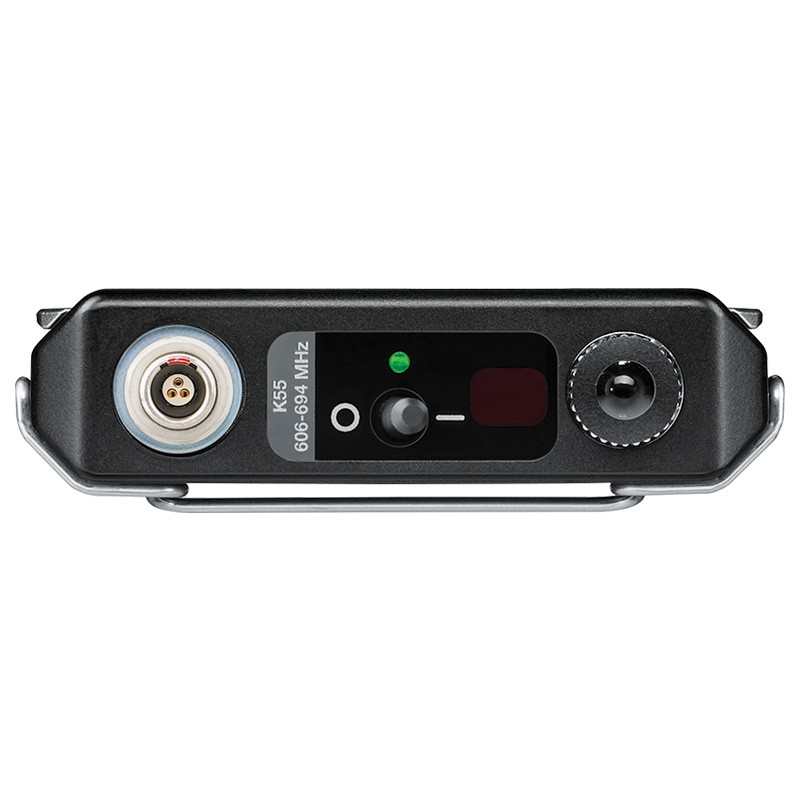

  • LEMO3 connector
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of run-time with SB910 rechargeable batteries
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • External contacts for docked charging
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Audio Input:
    • Connector: 3-Pin LEMO
    • Configuration: Unbalanced
    • Impedance: 8.2 kΩ
    • Maximum Input Level @ 1 kHz at 1% THD:
      • Padd Off: 8.5 dBV ( 7.5 Vpp)
      • Padd On: 20 dBV (30 Vpp)
    • Preamplifier Equivalent Input Noise (EIN): System Gain Setting ≥ +20, -120 dBV, A-weighted, typical
  • RF Output:
    • Antenna Type: UHF 1/4 wave
    • Connector Type: SMA
    • Impedance: 50 Ω
    • Occupied Bandwidth: <200 kHz
    • Channel-to-Channel Spacing:
      • Standard Mode: 350 kHz
      • High Density Mode: 125 kHz
    • Modulation Type: Shure Axient Digital Proprietary
    • Power: 2 mW, 10 mW, 40 mW
    • Specific Absorption Rate (SAR): < 0.20 W/kg
  • Showlink:
    • Network Type: IEEE 802.15.4
    • Antenna Type: Zigbee Dual Conformal
    • Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
    • RF Output Power: 10 dBm (ERP)
  • General:
    • Mic Offset Range: -12 to 21 dB (in 1 dB steps)
    • Battery:
      • Type: Shure SB910M, rechargeable Li-Ion
      • Runtime @ 10 mW: up to 10 hours
    • Housing: Aluminum
    • Temperature Range:
      • Operating: 0 to 113 °F | 18 to 45 °C
      • Storage: -20 to 165 °F | -29 to 74 °C
    • Dimensions (H x W x D): 3.6 x 2.7 x 0.8 in | 91 x 68.0 x 19.0 mm
    • Weight: 5 oz | 142 g, without battery
