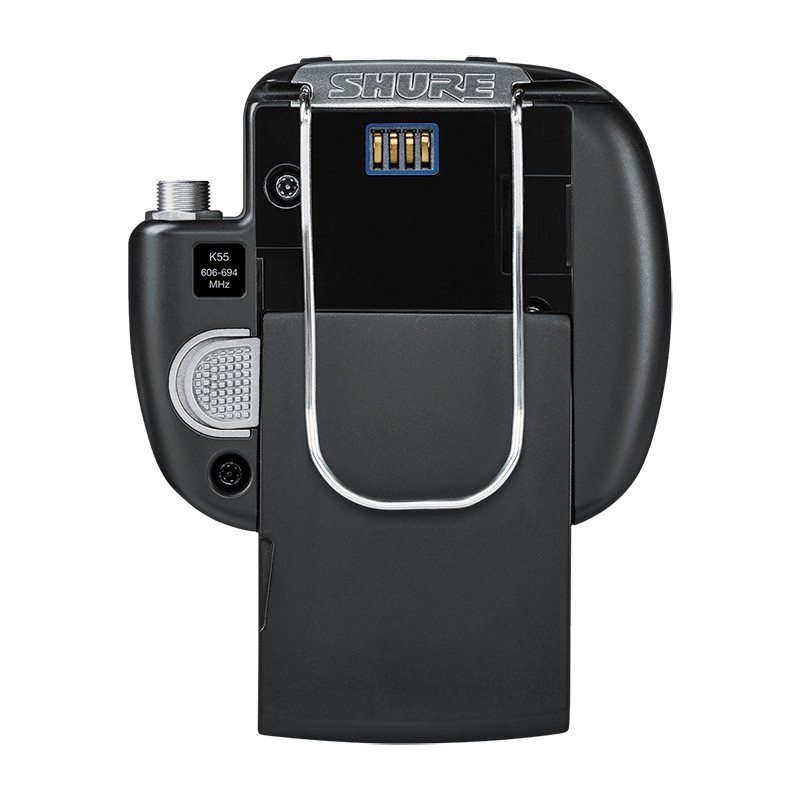

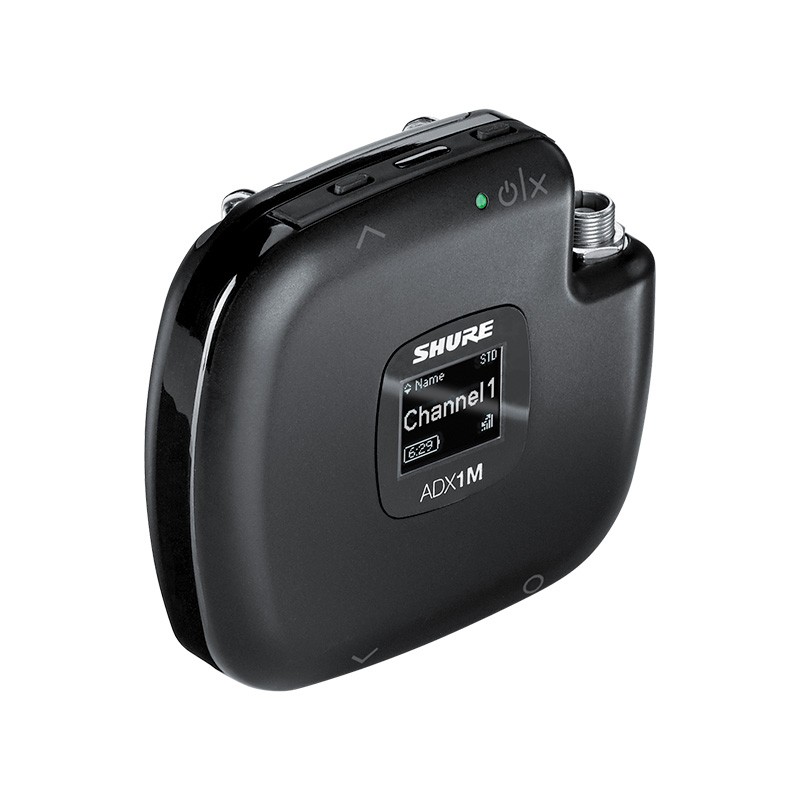

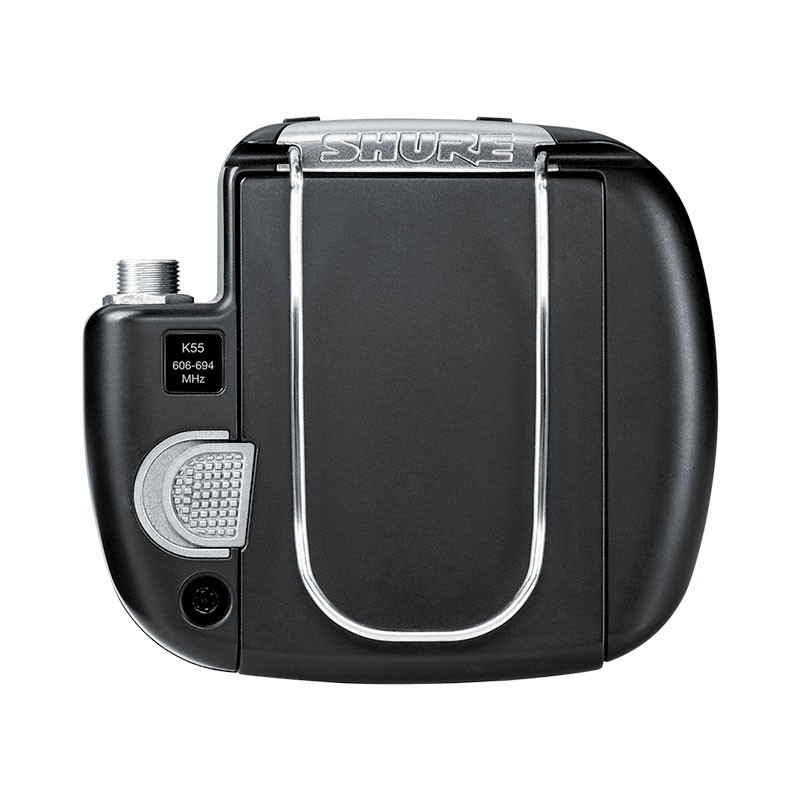

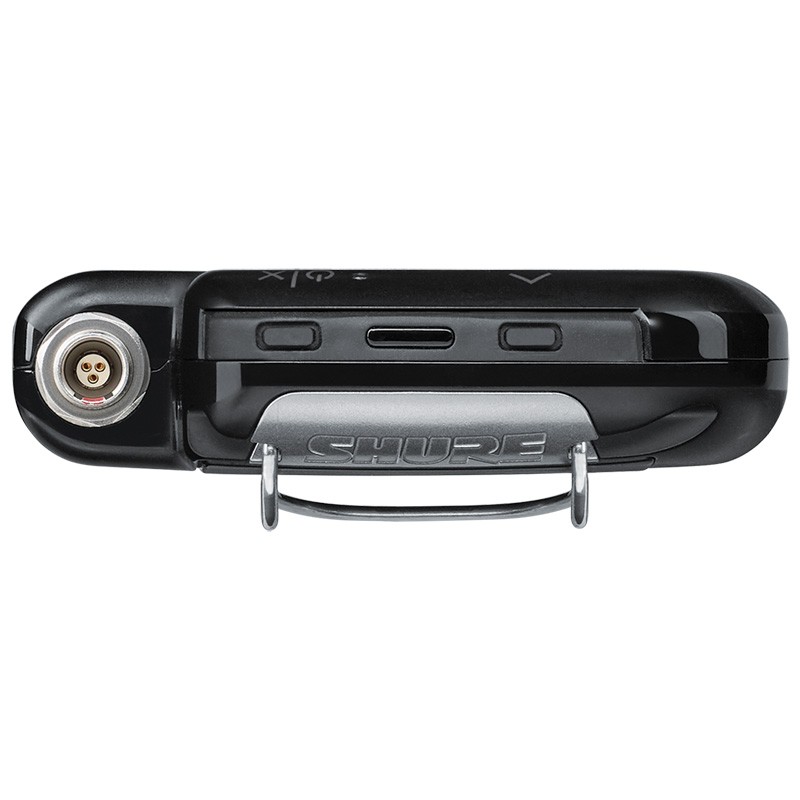

Shure Axient Digital ADX1M Micro Bodypack Transmitter

Shure Axient Digital ADX1M Micro Bodypack Transmitter Shure Axient Digital ADX1M Micro Bodypack Transmitter Shure Axient Digital ADX1M Micro Bodypack Transmitter Shure Axient Digital ADX1M Micro Bodypack Transmitter
With $99 Purchase »
Your Price: $2,499.00
List Price: $3,124.00

Availability: Usually Ships In 7 - 14 days
* Block/Frequency
Quantity:
Manufacturer:

Sales SKU: SHUADX1M-G57|SHUADX1M-K54|SHUADX1M-X55
Product Code: ADX1M-G57 | ADX1M-K54 | ADX1M-X55

The Shure ADX1M is available in the following frequency bands:

  • G57: 470 - 616 MHz with a gap between 608 - 614 MHz
  • K54: 606 - 663 MHz
  • X55: 941 - 960 MHz

The Shure ADX1M is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeabilty. Membrane switches and its LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments.

Shure Axient Digital ADX1M Transmitter - Features:

  • Small and streamlined design for better concealment and wear (68 x 60 x 18 mm)
  • High-contrast OLED display
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
  • Ultem PEI construction for heat resistance and durability
  • Recessed LEMO connector
  • Sealed buttons and LEMO connection for protection against sweat and moisture ingress
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Up to 7 hours of runtime with SB910M rechargeable batteries
  • Detachable belt clip
  • Audio Input:
    • Connector: Lemo
    • Configuration: Unbalanced
    • Impedance: 8.2 kΩ
    • Maximum Input Level: 1 kHz at 1% THD, 8.5 dBV ( 7.5 Vpp)
    • Preamplifier Equivalent Input Noise (EIN): System Gain Setting ≥ +20, -120 dBV, A-weighted, typical
  • RF Output:
    • Antenna Type: Integrated Helical
    • Impedance: 50 Ω
    • Occupied Bandwidth: <200 kHz
    • Channel-to-Channel Spacing:
      • Standard Mode: 350 kHz
      • High Density Mode: 125 kHz
    • Modulation Type: Shure Axient Digital Proprietary
    • Power: 2 mW, 10 mW, 20 mW
    • Specific Absorption Rate (SAR): < 0.24 W/kg
  • Showlink:
    • Network Type: IEEE 802.15.4
    • Antenna Type: Zigbee Dual Conformal
    • Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
    • RF Output Power: 10 dBm (ERP)
  • General:
    • Mic Offset Range: -12 to 21 dB (in 1 dB steps)
    • Battery:
      • Type: Shure SB910M, rechargeable Li-Ion
      • Runtime @ 10 mW: up to 7 hours
    • Housing: Plastic
    • Temperature Range:
      • Operating: 0 to 122 °F | 18 to 50 °C
      • Storage: -20 to 165 °F | -29 to 74 °C
    • Dimensions (H x W x D): 2.4 x 2.7 x 0.7 in | 60.4 x 68.0 x 18.0 mm
    • Weight:
      • With Battery: 3.5 oz | 100 g
      • Without Battery: 2.4 oz | 68 g
