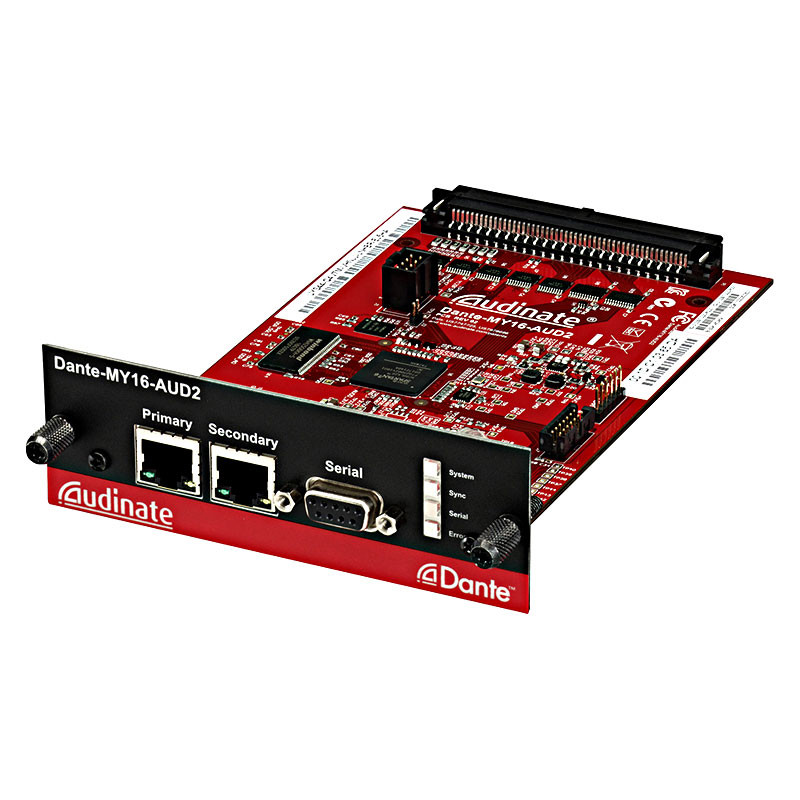

Yamaha Audinate Dante-MY16-AUD2 Interface Card

Share

The Dante-MY16-AUD2 from Audinate is a fully compatible Yamaha Mini-YGDAI card that instantly Dante-enables your Yamaha mixer, processor, interface or power amp.

Each Dante-MY16-AUD2 provides up to 32 (16x16) channels at 44.1kHz or 48kHz, or 16 (8x8) channels at 88.2kHz or 96kHz, and full Dante network audio redundancy over Gigabit Ethernet. Add more cards to add more channels, and connect to other Dante-enabled audio equipment and to a PC or Mac running Audinate’s Dante Virtual Soundcard or Dante Via software for a complete audio networking solution.

Dante delivers something every audio professional needs: a no-hassle, self-configuring, true plug-and play digital audio network that uses standard Internet Protocols over both 100Mbps and 1 Gigabit Ethernet. Patent-pending Dante technology distributes digital audio plus integrated control data with imperceptible latency, sample-accurate playback synchronization, extreme reliability and high channel counts.

Yamaha Audinate Dante-MY16-AUD2 Features:

• Supports 44.1 and 88.2kHz sample rates, in addition to the previously-supported 48 and 96 kHz sample rates
• Sample rate pull-up/down can be used to synchronise audio with video that has undergone frame rate conversion
• Dante-MY16-AUD2 cards can be daisy chained together via the secondary Ethernet port
• Dante-MY16-AUD2 can be PIN-locked and unlocked using Dante Controller

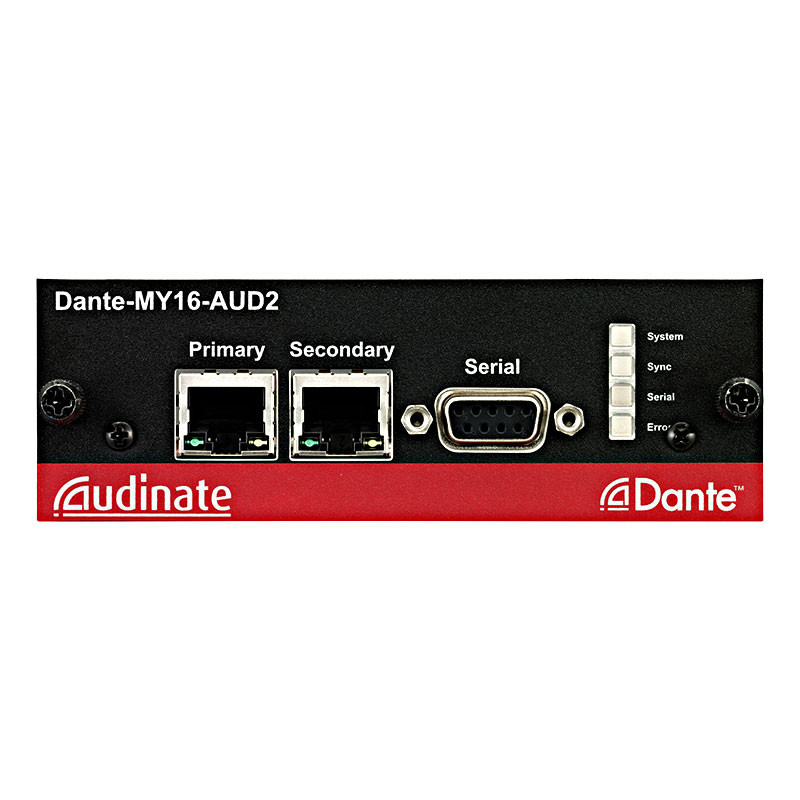

• 2x RJ-45 connectors for Dante I/O, 1x D-sub 9 pin connector for RS232-C
• Latency can be selected from five preset values: 0.25 ms, 0.5 ms, 1.0 ms, 2.0 ms, or 5.0 ms
• More than 16 audio channels can be transferred when used with multiple Dante-MY16-AUD2 cards
• Automatic discovery and setup for network devices. Devices names can be specified as required.
• Allows direct PC or Mac audio input and output without the need for an audio interface
• Synchronization: High quality on-board VCXO clock can provide master clock OR slave from audio equipment; automatic synchronization with Dante network

• Audio Channels: 16IN / 16OUT
• Sample Rates: 44.1, 48, 88.2 and 96 kHz
• Sample Rate Pull-Up/Down: +4.1667, +0.1, -0.1, and -4.0 % /li>
• Sample Bit-Depth: 16, 24 or 32-bit PCM
• Network: 2 x Gigabit (1000 Mbps) Ethernet RJ45 connectors
• Redundancy: Glitch-free Dante audio redundancy using dual Ethernet networks (redundant mode)
• Daisy Chaining: Daisy chain multiple Dante-MY16-AUD2 cards together (switched mode)
• HA Remote: Support for HA Remote capable Yamaha products
• Expandable: Install up to four Dante-MY16-AUD2 cards in available MY16-compatible slots for up to 64x64 audio channels
• Compatible Yamaha Equipments:
  • Digital Mixers: CS-R10, DSP-R10, RPio622, CL5/3/1, QL5/1, PM5D, DSP5D, M7CL, LS9, DM2000, DM1000, 02R96, 01V96, 01V96i
  • Interfaces: RSio64-D
  • Processors: MRX7-D, MTX5-D, DME24N, DME64N
  • Power Amps: TX4n, TX5n, TX6n
