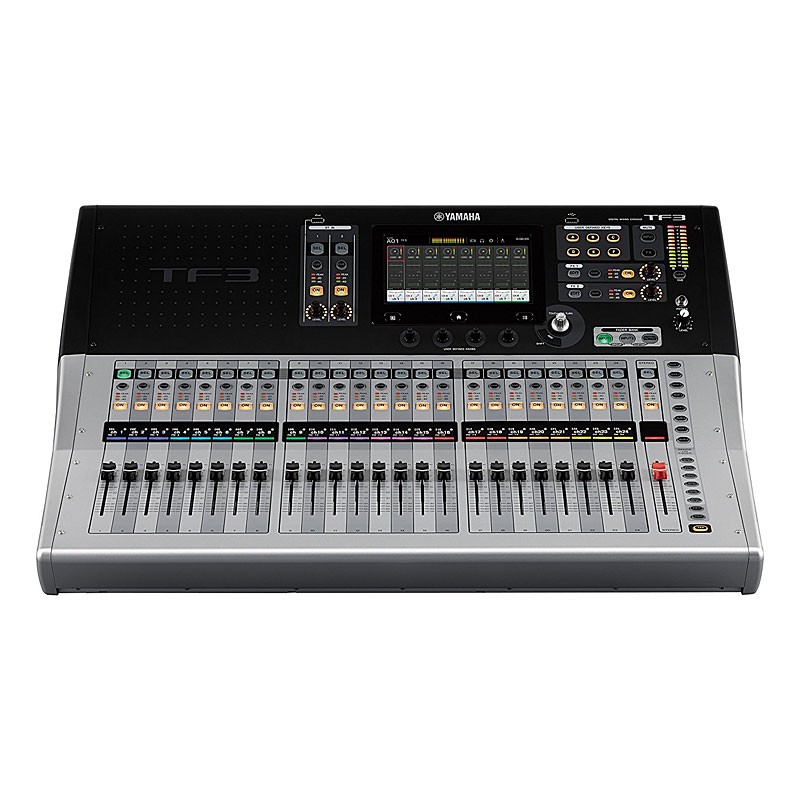

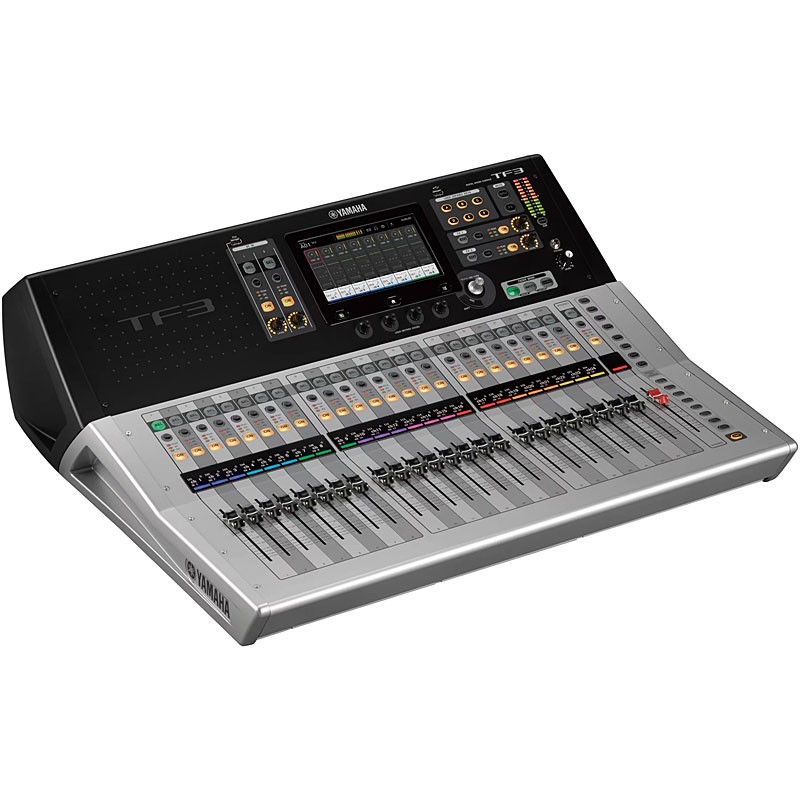

Yamaha TF3 24-Channel Digital Mixer

Yamaha TF3 24-Channel Digital Mixer Yamaha TF3 24-Channel Digital Mixer Yamaha TF3 24-Channel Digital Mixer
Your Price: $2,499.99
List Price: $2,925.00

MAP Pricing »
Availability: Usually Ships In 7 - 14 days
Quantity:
Manufacturer:

Sales SKU: YAMTF3
Product Code: TF3

Yamaha TF3 - Features:

  • 25 motor faders (24 channels + 1 master)
  • 48 input mixing channels (40 mono + 2 stereo + 2 return)
  • 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
  • 8 DCA groups with Roll-out
  • 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
  • 16 analog XLR outputs
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 8 Effects and 10 GEQ
  • 1 expansion slot for NY64-D audio interface card

TouchFlow Operation, available in the TF series consoles, allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.

TouchFlow Operation™ – Smooth, Natural Control Flow

Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.

Intuitive User Interface Optimized for Touch Panel Operation

In developing the TF series Yamaha engineers built from their existing base of acclaimed high-end mixer interfaces, adding intuitive control in an interface optimized for the type of touch panel control that has become a familiar feature in a wide range of applications. Allowing most operations to be carried out via the touch panel alone, the innovative TF series interface will quickly become second nature to a broad spectrum of users. Whether you have experience with Yamaha digital consoles, work with other digital consoles, operate analog consoles, or have never operated a mixer before, TF consoles will lead you to the desired results quickly and effortlessly through a smooth, efficient workflow. The availability of physical controls surrounding the touch panel further enhances control versatility and precision.

Touch Operation for Intimate Control

Refined for the smoothest possible operation via touch-panel control, the TF user interface offers a smooth workflow that can be an advantage in any mixing situation. The display content has been specifically designed for easy, direct accessibility, with a layout that promotes the most natural, efficient mixing. Touch panel operation is as easy as shaping the sound with your fingertips.

Touch & Turn Knob Offers Extra Control Precision

When you need extra precision for a fine EQ or other adjustment, the physical Touch & Turn knob is always available right beside the touch panel. There are also four User Defined Knobs below the panel that can be assigned to control compressor threshold, EQ gain, or other parameters you need fast, direct access to while mixing. The knobs always affect the currently selected channel.

Traditional Overview & Selected Channel Interfaces

Operation is based around Overview and Selected Channel windows. The Thew overview display shows the parameters for eight channels at a time, while the Touch & Turn knob provides direct access to gain, 1-knob EQ, 1-knob COMP, gate threshold, effect send level, pan, and other parameters. Touch the highlighted parameter a second time to switch to the Selected Channel display when you need access to detailed parameters for finer control.



NOTE: This item is not eligible for free shipping.
  • Outline:
    • Fader Configuration: 24 + 1 (Master)
    • Mixing Capacity:
      • Input Channels: 48 (40 mono + 2 stereo + 2 return)
      • Aux Buses: 20 (8 mono + 6 stereo)
      • Main Buses: Stereo 1 Sub
      • Stereo Buses: 1
      • Sub Buses: 1
    • Input Channel Functions: 8 DCA Groups

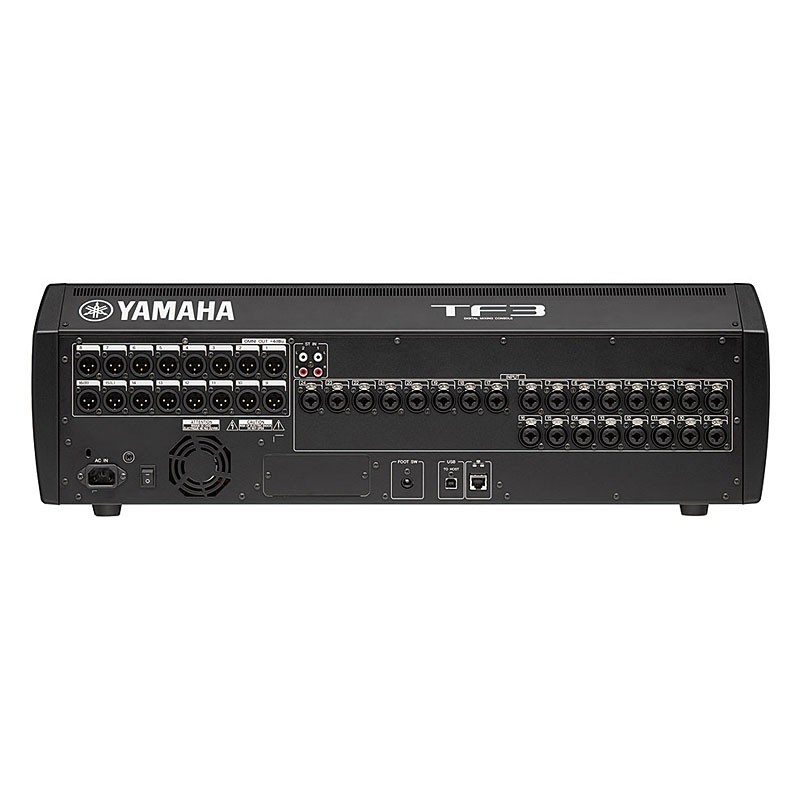

    • I/O:
      • Inputs: 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
      • Outputs: 16 (XLR)
      • Expansion Slot: 1
    • On-Board Processors: DSP, 8 Effects + 10 GEQ
    • USB: 34x34 USB Audio Interface, 2-track recording via USB Storage Device
  • General Specifications:
    • Sampling Frequency Rate: 48 kHz
    • Signal Delay: < 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
    • Fader: 100 mm motorized, Resolution = 10-bit, +10 dB to -138 dB, -∞ dB all faders
    • Total Harmonic Distortion: < 0.05% 20 Hz-20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min (measured with a -18 dB/octave filter @ 80 kHz)
    • Frequency Response: +0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
    • Dynamic Range: 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min
    • Hum & Noise Level:
      • Equivalent Input Noise: -128 dBu typ., Input Gain=Max (measured with an A-Weight filter)
      • Resdiual Output Noise: -85 dBu typ., ST master off (measured with an A-Weight filter)
    • Crosstalk: -100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
    • Power Requirements:
      • Wattage: 100W
      • Voltage & Hertz: 100-240 V 50/60 Hz
    • Temperature Range:
      • Operating: 32 to 104° F | 0 to 40° C
      • Storage: -4 to 140° F | -20 to 60° C
    • Included Accessories: Quick Guide, Power Cord, CUBASE AI download information
    • Dimensions (W x H x D): 28.2 x 8.9 x 23.6 in | 716 x 225 x 599 mm
    • Weight: 37.5 lbs | 17 kg
