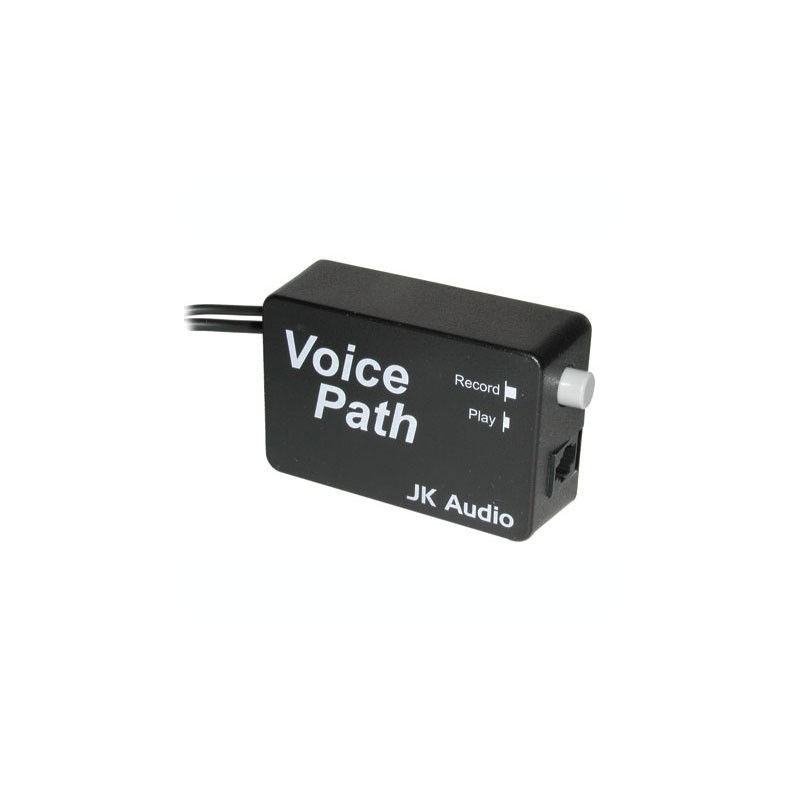

JK Audio Voice Path Telephone Handset Audio Tap

Share

Voice Path routes the audio from any telephone into your PC sound card. Simply connect between the handset and base of your telephone. The attached cables connect directly to the in and out jacks of your sound card. Use your PC software to record, edit, and then play your conversation right back into the phone line.

Endless possibilities for use in news rooms, weather and traffic reports, ad creation and proofing, transcribing, voice mail prompts, production roomm etc.

Once installed, Voice Path continuously routes both sides of your conversation to the mic input of your PC (or Mac) sound card. Simply press in the gray button when you are ready to play audio recordings back into the phone line. With the button in, Voice Path will disconnect the microphone from your handset and send audio down the phone line and into your receiver. You will hear the transmit audio as well as the voice from the other end of the call.

When sending audio into a telephone, Voice Path must emulate the microphone that is in the handset. A switch on the back of Voice Path allows you select between the three basic types of handset microphone: electret, dynamic, and carbon. Signal level to the PC sound card is also adjustable.

Voice Path will not work with telephones that have a keypad in the handset.

• Input: 3.5 mm Stereo
  • Impedance: 10k ohms
  • Level (Line): 250 mV RMS (-10 dBu nom.)
  • Length: 48"
• Output: 3.5 mm Mono
  • Impedance: 2.8k ohms
  • Level (Line): 100 mV RMS (-18 dBu nom.)
  • Length: 48"
• Handset Interface: Biased for electret, dynamic, and carbon headsets
• Size: 3 x 1 x 2 in | 7.6 x 2.5 x 5.1 cm
• Weight: 9 oz | 255 g
