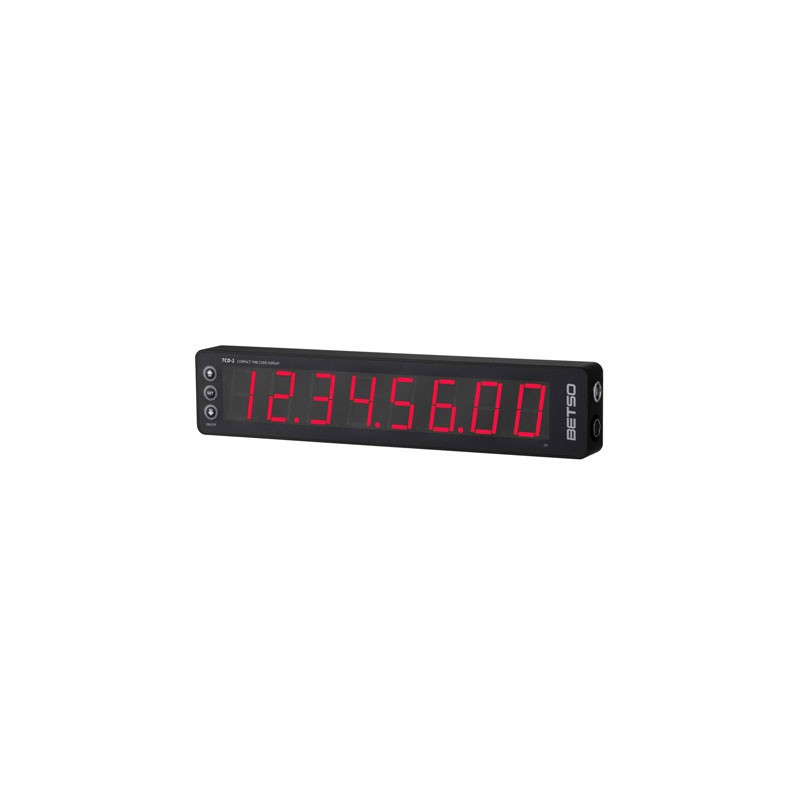

BETSO TCD-1 1 Inch Compact Time Code Display

With $75 Purchase »
Your Price: $429.95
List Price: $479.00

Availability: Usually Ships In 7 - 14 days
Quantity:
Manufacturer:

Sales SKU: BETTCD1
Product Code: TCD1

Time Code Display BETSO TCD-1 is a small, compact, self-powered solution for displaying frame-accurate time code. It supports any common frame rate and detects it automatically. Menu-based settings allow for quick setup of brightness, internal battery and external source voltage readout (for simple check of cart or bag power). Among its many features are its power saving modes.

The TCD-1 is made from lightweight aluminum alloy by precise CNC milling and laser cutting. With its small dimensions and light weight, it is ideal for portable use.

Typical application examples would be mounted on an audio bag or sound cart for multiple camera shoots, mixed camera formats, DSLR shoots, documentary shoots without distracting clapper board, video playback shoots, in a post-production studio, and much more.

  • Displays: 1" hight brightness, red color
  • Mechanic Construction: anodized aluminium alloy
  • SMPTE TC signal: 23.976 fps - 30 fps (up to 2x speeded up)
  • Input Sensitivity: 0.2 – 20 V (p-p) Lemo 5-pin
  • Power Supply:
    Internal, Li-Po rechargeable cells (7.4 V 1650 mAh)
    External, 9-16 V DC
  • Current Consumption:
    1 &ndash 550 mA (depends on brightness and setting of the Power Saving funcions)
    Approx. 50µA (when the display is turned off)
  • Battery Life: Up to 60 hours (with lower display brightness)
  • Dimensions (W x H x D): 215 x 44.5 x 21 mm
  • Weight: 10 oz | 283 g (including battery)
