Sennheiser XSW-D Portable Lavalier Set

Share

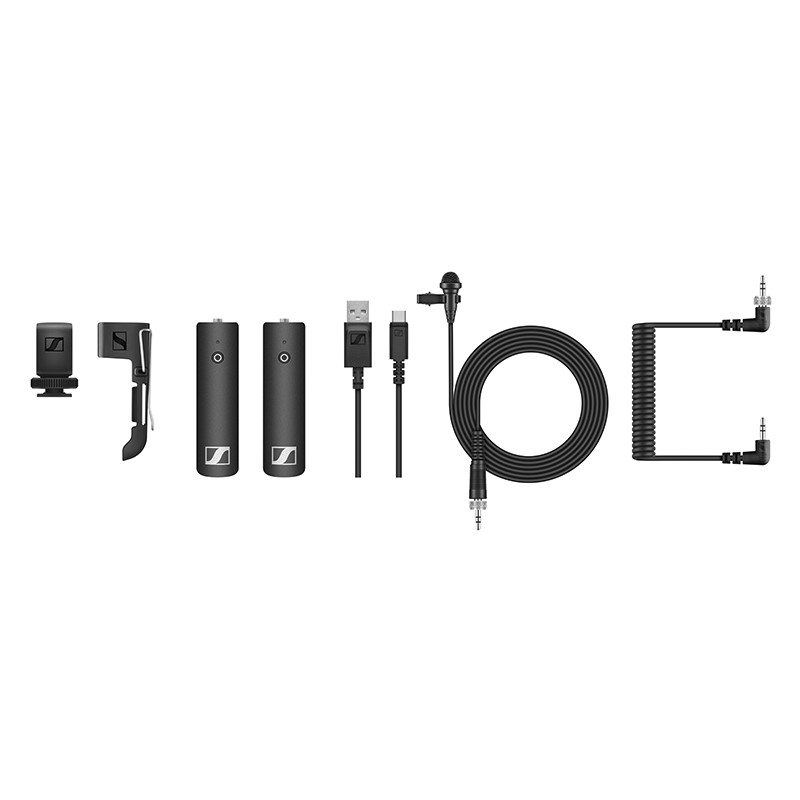

The Sennheiser XSW-D Portable Lavalier Set is a one-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an ME2-II lavalier microphone, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection. Package includes:

• XSW-D 3.5mm (1/8") transmitter
• XSW-D 3.5mm (1/8") receiver
• ME2-II clip-on lavalier mic
• 3.5mm (1/8") coiled cable
• Cold shoe mount
• Belt clip
• USB-A to USB-C charging cable
• Colored stickers for labeling
• Quick guide
• Safety guide

Sennheiser XSW-D - Features:

• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75m range (250ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Configure any combination of transmitters and receivers
• Mute from either transmitter or receiver

• USB C Interface for Charging:
  • Input Voltage: Typical 5.0 V
  • Charging Temperature: 32 to 140 °F | 0 to 60 °C
  • Charging Time: Typical 3 hours
• Battery Pack:
  • Cell Type: Li-Ion
  • Nominal Voltage: 3.7 V
  • Cell Capacity: 850 mAh
  • Operating Time: Up to 5 hours
• AF Characteristics:
  • Codec aptX® Live
  • Audio Frequency Response:
    • 3.5 mm Jack/XLR:
    • 80 - 18,000 Hz
    • 6.3 mm Jack:
    • 10 - 18,000 Hz
    • Audio Output: Max. 12 dBu
  • Signal-To-Noise Ratio: ≥ 106 dB
  • THD: < 0.1 %
  • Audio Latency: < 4 ms
• Product Properties:
  • Dimensions:
    • XSW-D Mini Jack Receiver: 3.39 x 0.94 x 1.10 in | 86 x 24 x 28 mm
    • XSW-D Mini Jack Transmitter: 3.39 x 0.94 x 1.10 in | 86 x 24 x 28 mm
  • Frequency Range: 2,400 - 2,483.5 MHz
  • Transmission Power (EIRP): Max. 10 mW
  • Modulation: GFSK with TDMA
• Environmental Conditions:
  • Operating Temperature: 14 to 131 °F | -10 to +55 °C
  • Relative Humidity: 95% (non-condensing)
