Neutrik NP2C-BAG 1/4 Inch Mono Phone Plug

Share

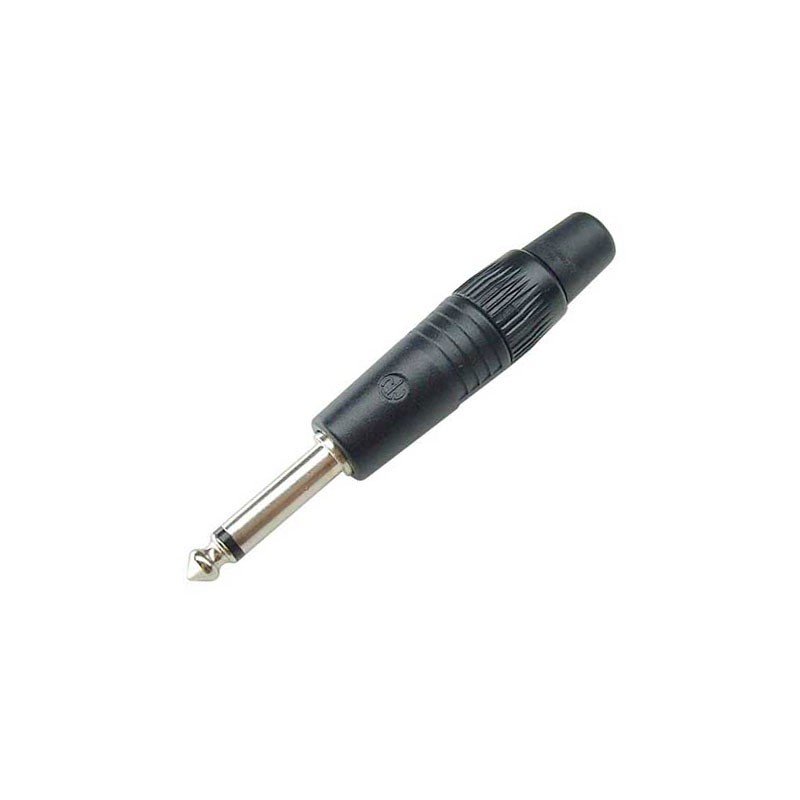

The Neutrik NP2C-BAG is a 1/4 inch mono phone plug with a robust black metal housing and nickel contacts.

Neutrik NP2C-BAG - Features:

• Rugged diecast metal shell
• Chuck type strain relief for optimum cable protection
• Precision machined one-piece contacts—avoid hook up of tip contact

• Product:
  • Connection Type: Plug
  • Gender: Male
• Elecrical:
  • Contact Resistance: Depends on mating connector mΩ
  • Dielectric Strength: 1 kVdc
  • Insulation Resistance: > 2 GΩ (initial)
  • Rated Current Per Contact: Depends on mating connector A
  • Rated Voltage: < 50 V
• Mechanical:
  • Cable O.D.: 4 - 7 mm
  • Lifetime: 1000 mating cycles
  • Wire Size: 1 mm²
  • Wire Size: 18 AWG
  • Wiring: Solder contacts
• Material:
  • Bushing: Polyacetal (POM) + PU
  • Contact Plating: 2 µm Ni (Su)
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium
  • Strain Relief: Polyacetal (POM)
• Environmental:
  • Standard Compliance: IEC 60603-11 / EIA RS-453
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -4 ° to +149 °F | -20 ° to +65 °C
