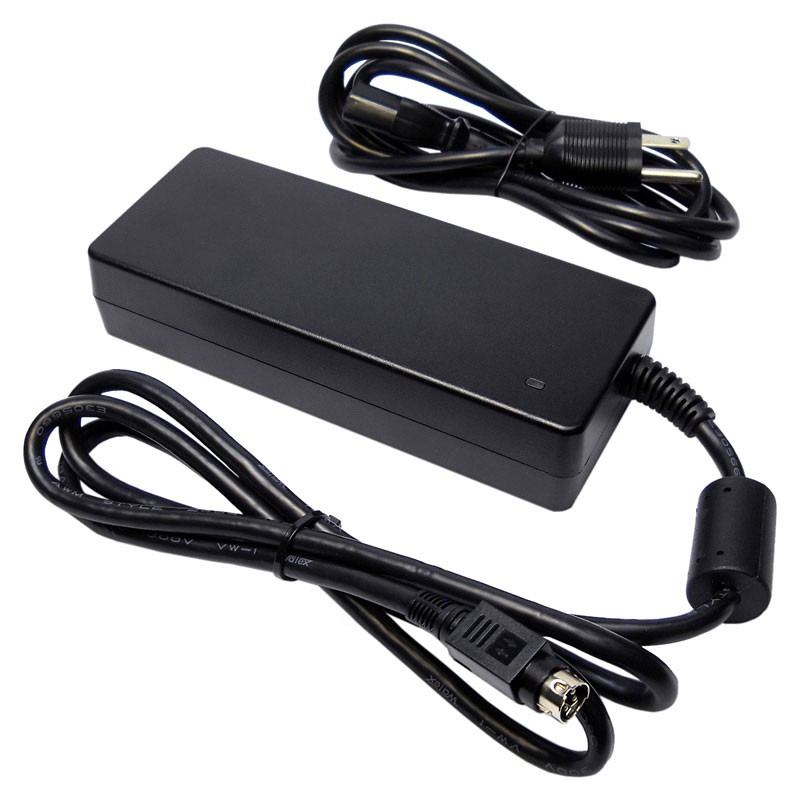

PSC FPELCDIN LiFE Battery Charger with 4-Pin DIN Connectors

With $99 Purchase »
Your Price: $80.75
List Price: $85.00

Availability: In Stock
Quantity:
Manufacturer:

Sales SKU: PSCBATLIFE-CH
Product Code: FPELCDIN

The PSC FPELBCDIN charger, equipped with a 4-pin DIN output connector, is specifically designed to recharge the FPSC0023LIFECP Pelican LiFE Battery with Integral Charging Port.

PSC FPELBCDIN - Features:

  • Fast, 7.5 amp charge rate
  • 2-stage charging characteristics
  • Universal AC input for world-wide use
  • Built-in active PFC function, PF>0.97
  • Green certified, no load Power consumption < 0.5 watt
  • 3-pole AC input, uses common IEC320-C14 power cable
  • Built-in protection for short circuit, overload, over voltage, over temperature
  • Cooling by free air convection
  • Fully enclosed, engineered plastic case
  • 2 Color LED indicator for charging status
  • World-wide approvals: TUV, UL, PSE, CB, FCC, CE
  • Input:
    • AC Input Voltage Range: 85 to 264 Vac
    • AC Input Frequency Range: 47 to 63 Hz
    • Power Factor Correction: PF>0.97 at 230 Vac, PF>0.99 at 115 Vac at full load
    • AC Input Current: 1.4A at 115 Vac, 0.7A at 230 Vac
  • Output:
    • DC Output Voltage: 13.6 Vdc, typical
    • DC Output Current: 7.5 Amp
    • Rated Output Power: 102 watts
    • LED Indicator:
      • Constant Current Charging (High Rate): Red
      • Float Charging (Low Rate): Green
    • Standard Connector: 4-pin DIN, locking (Kycon KPP-4S or equivalent)
  • Protection:
    • Overload: 90 to 110% at rated output power, CC limiting
    • Short Circuit: Hiccup Mode, automatic recovery after fault is removed
    • Over Voltage: 14 to 16.5V, shut down of output voltage
    • Over Temperature: 212° F | 100° C internal temperature, repower to reset
  • Environmental:
    • Working Temperature Range: -22° to 158° F | -30° to +70° C)
    • Storage Temperature Range: -40° to 176° F | -40° to +85° C)
