Audio Wireless DADM224-2C Diversity Antenna Combiner and Distribution Module

Share

The Audio Wireless DADM224-2C is a 4 IN and 2 x 4 OUT active antenna combiner and distribution system. It is a portable solution for 2-zone antenna combining and distribution requirements for portable sound bags and sound cart applications. LSC stocks these frequency ranges: 470 - 608 MHz and 470 - 1164 MHz

The DADM224-2C has built-in low loss band-pass filtering plus LNA and user-adjustable gain stage at each RF input. It enables the user to cover a 2-zone wide area with improved RF reception. It eliminates multiple receiver antennas making your sound bag, cart, and trolley set-up more efficient.

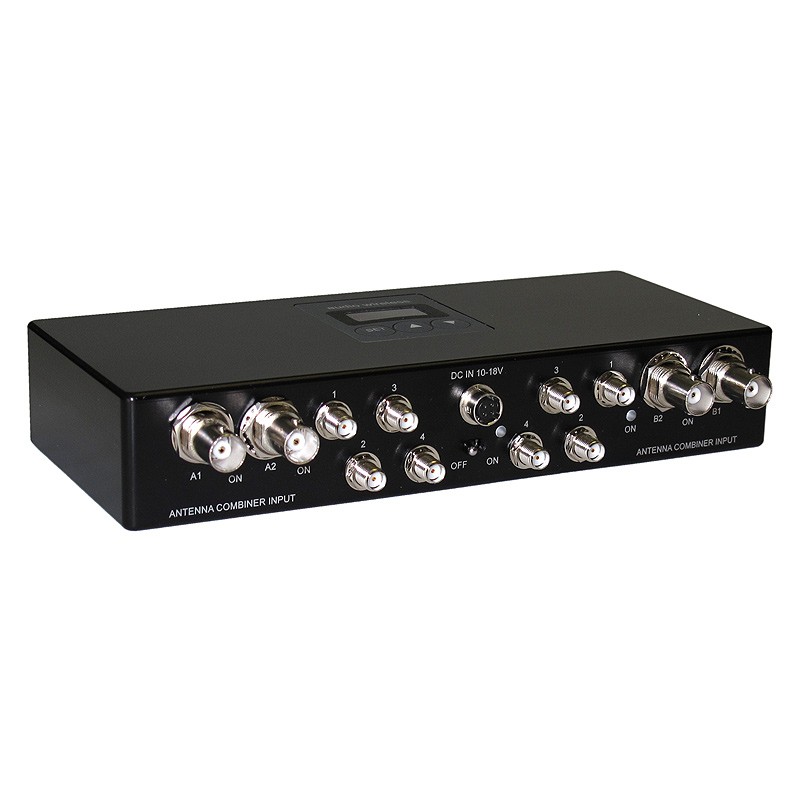

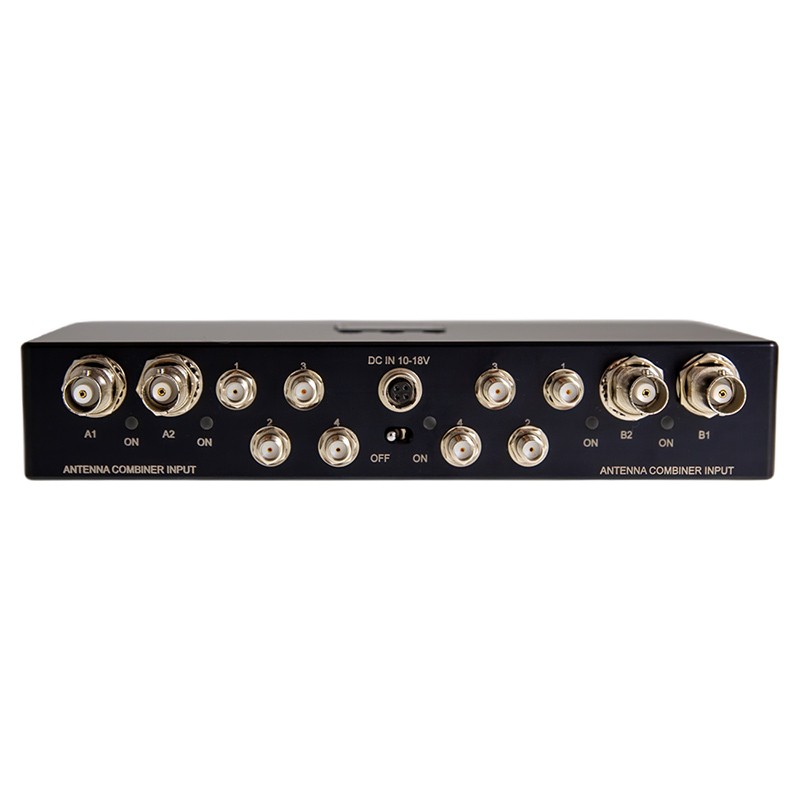

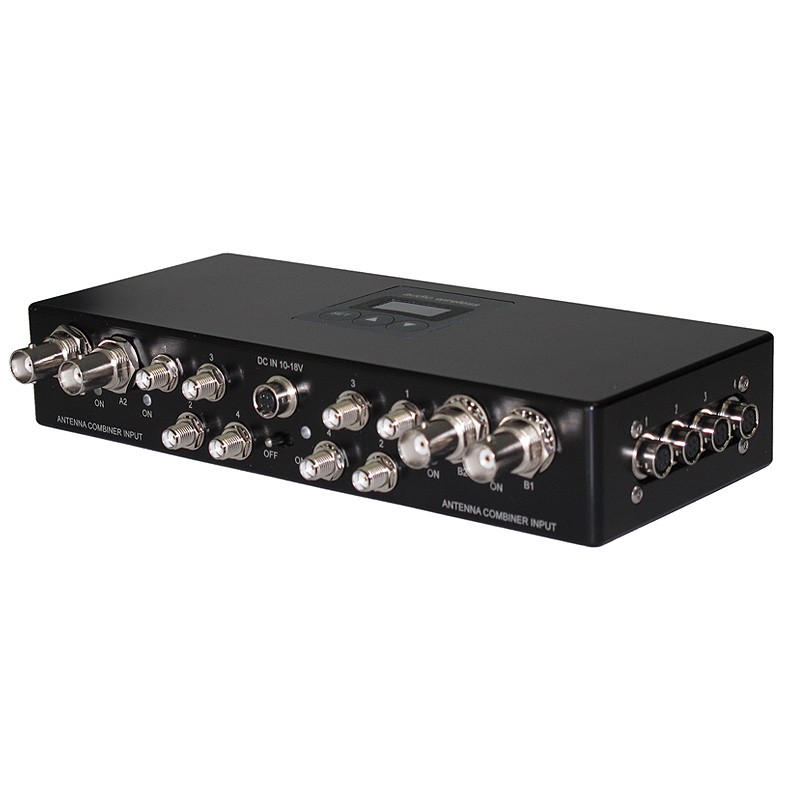

Four industry-standard BNC input connectors for antenna inputs enables the use of standard low loss RF extension cables. 2 x 4 mini-RF SMA connectors feed the diversity receivers. Each antenna input can be individually turned ON/OFF via the OLED menu when not in use. An LED indicator light shows the status of each Antenna input.

In applications when remote antenna powering is needed, the DADM224-2C offers individually switchable remote antenna powering with Red LEDs indicating power ON/OFF status. The MHA powering can be turned ON/OFF through the OLED display menu.

The DADM224-2C has a very high input signal handling capacity with very low noise figure. It also offers outstanding inter-modulation performance when compared to other low power devices available.

The tuning bandwidth is custom designed with a semi-broadband response to suit varying applications—each antenna input gain is individually user adjustable in 1dB steps between +6dB to -14dB. The DADM224-2C is compatible with digital, hybrid and analogue radio microphone receivers available in the industry.

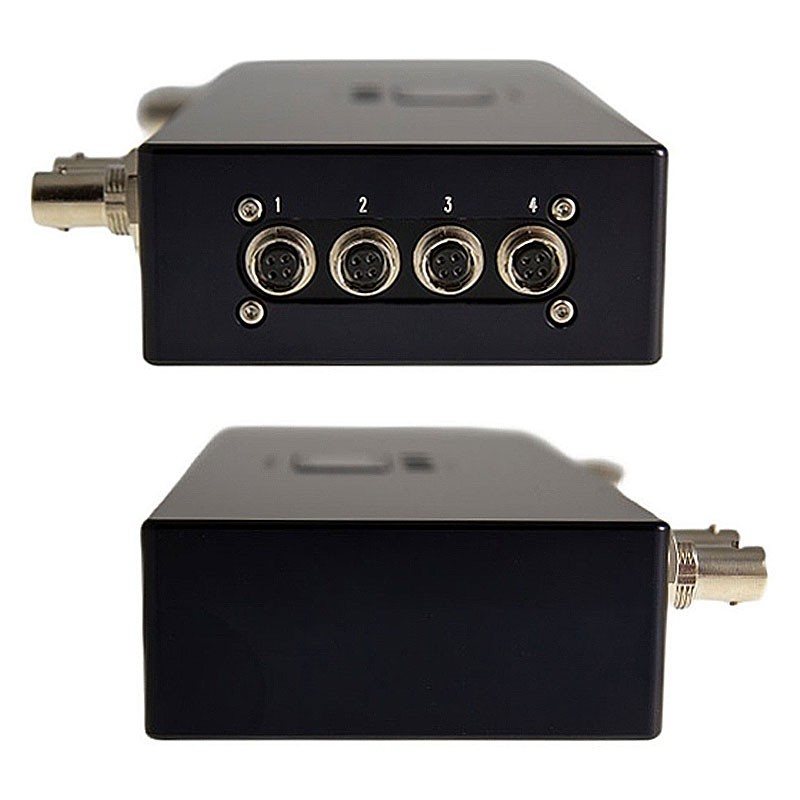

The DADM224-2C is externally powered between 10-18 VDC. The DC input connector is an industry standard 4-pin Hirose and there are 4 x Hirose dc output connectors available for powering auxiliary equipment. Each DC output port can be individually turned ON/OFF through the OLED menu. A green LED indicates power-on status of the system box and the OLED display continuously displays DC input voltage.

Audio Wireless DADM224-2C - Features:

• Four antennas feed up to four diversity receivers
• Built-in band-pass filtering, active combiners and signal splitters
• Remote antenna powering
• 4 x Hirose DC outputs
• User-adjustable system gain at each antenna input
• Industry standard connectors

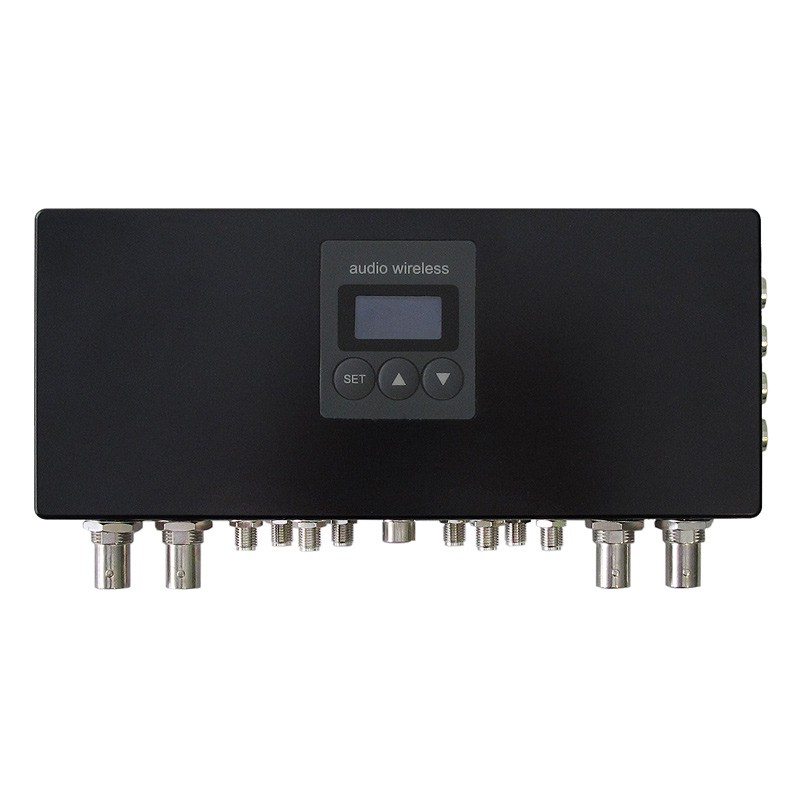

• Intuitive OLED display menu and LED indicators
• Single dc power source solution
• Master ON-OFF switch
• Continuous system volts monitoring
• Soft ON/OFF switch for each individual antenna input LNA
• Soft ON/OFF switch for each individual remote antenna powering
• Soft ON/OFF switch for each DC output
• CNC machined aluminum custom design, lightweight and rugged - fits neatly in any sound bag

• RF Distribution:
  • Frequency Range: 470 to 1164MHz (in bands)
  • Input Impedance: 50 Ω
  • Output Impedance: 50 Ω
  • Gain (each output): user-adjustable +6 dB to -14dB in 1 dB steps
  • Current Consumption: 270 mA at 14.0V DC
• UHF Bandpass Type:
  • Bandwidths Available @ LSC:
    • 470 - 608 MHz
    • 470 - 1164 MHz
  • OIP3: > +41dBm
  • Port to Port Isolation: > 20dB (min.)
  • Noise Figure: < 2 dB
• Connections:
  • RF Inputs: 4 x 50 Ω Standard BNC Sockets
  • RF Outputs to Receivers: 2 x 4 x 50 Ω mini UHF SMA sockets
  • DC Power IN: 4-pin Push-Pull (Hirose-compatible) socket, fused and protected against reverse polarity, 10-18V DC
  • DC Power OUT: 4 x 4-pin Hirose sockets individually fused and protected against reverse polarity
  • DC IN Pinouts: Pin 1+2 (-ve) and Pin 4+3 (+ve)
  • DC OUT Pinouts: Pin 1+2 (-ve) and Pin3+4 (+ve)
• Powering:
  • External Power: 10 - 18V dc
  • Remote Antenna Powering: Switchable DC T-bias powering, 12 Vdc @ 250 mA max, regulated for active antenna powering, short circuit protected
  • DC Output: Unregulated incoming volts, switched, individually fused, and protected against reverse polarity
  • Total Current Withdraw: 3A max
• Dimensions (W x H x D): 7.6 x 3.2 x 1.4 in | 192 x 82 x 35 mm
• Weight: 14.1 oz | 400 g
