PSC Power Star Mini

With $99 Purchase »
Your Price: $209.00
List Price: $220.00

Availability: In Stock

Rent For: $10.00/day
Quantity:
Manufacturer:

Sales SKU: PSCPWRSTARMINI
Product Code: FPSCPSM

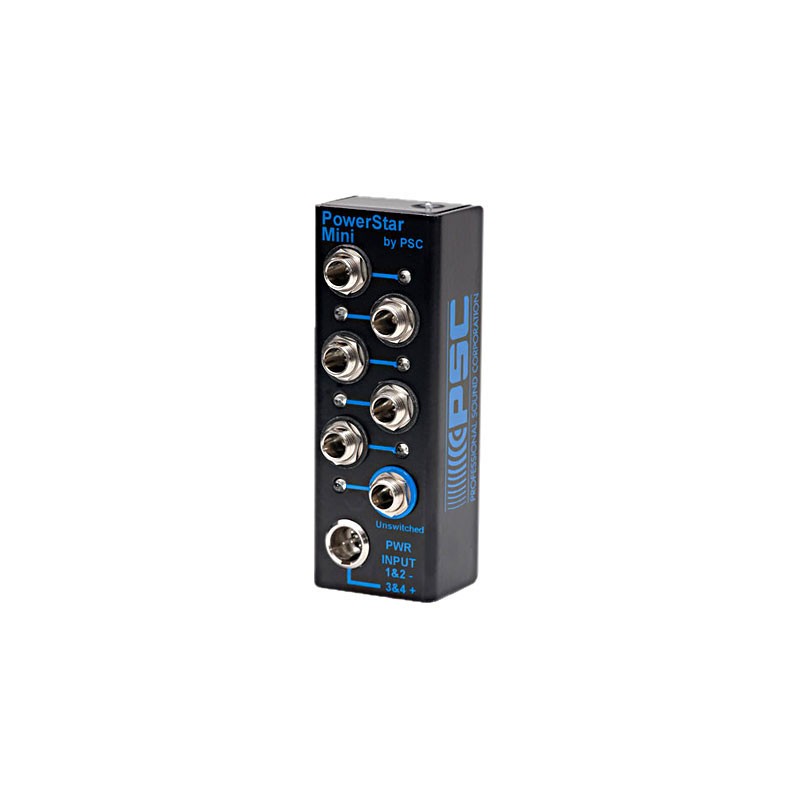

The Power Star Mini power distribution system provides a convenient way of distributing clean, quiet, reliable 12Vdc to all of your ENG audio equipment from a single rechargeable battery. Each of the six outputs is designed to deliver up to 3 amps of continuous current. The Power Star Mini has a global (total) current limit of 5 amps. A top panel mounted lighted power switch controls the entire operation. This power switch always controls five of the six output power connectors. The sixth connector may be controlled by this power switch or left un-switched (always on). This sixth connector is conveniently marked with a blue ring surrounding the connector. Internally, there is a small jumper to select switched or un-switched operation for this connector.

The Power Star Mini features PSC’s exclusive Silent Power Technology™ designed to filter out unwanted switch mode noise and RF interference from your power lines. These exclusive PSC filters will ensure you of clean, quiet recordings in the field by minimizing unwanted inter-modulation noise, RF interference and other noise sources. The RF filtering will provide better than 34dB of RF isolation between outputs. In addition, each of the six output connectors are individually polyfuse-protected and monitored for short circuits. Convenient front panel status LED’s indicated an overloaded output. Power input is via a 4 pin mini XLR connector. The Power Star Mini features reverse polarity protection, genuine Switchcraft™ connectors, a sturdy aircraft aluminum case, tough powder coat finish and a removable stainless steel belt clip.

RENTAL NOTE: Our Rental Department offers this product with cables. Please call or click on the "Request A Rental Quote" link to inquire.

  • Output Current: 5 amp global max., 3 amp max/output
  • Power Switch: Recessed toggle, lit green when power "ON", lit red if main polyfuse is blown
  • Output LEDs: Red LED on if individual output is overloaded
  • RF Filtering: Better than 34dB isolation from 100Mhz to 900Mhz
  • Size: 3.58 x 1.33 x 1.2 in | 91 x 33.8 x 30.5 mm
  • Weight:: 3.7 oz | 85 g
