PSC PowerStar RF

PSC PowerStar RF PSC PowerStar RF PSC PowerStar RF PSC PowerStar RF PSC PowerStar RF PSC PowerStar RF
With $99 Purchase ยป
Your Price: $979.69
List Price: $1,031.25

Availability: In Stock
* Block/Frequency
Quantity:
Manufacturer:

Sales SKU: PSCPWRRFPRSB|PSCPWRRFPRDB|PSCPWRRFPRWB
Product Code: RFPRSB | RFPRDB | RFPRWB

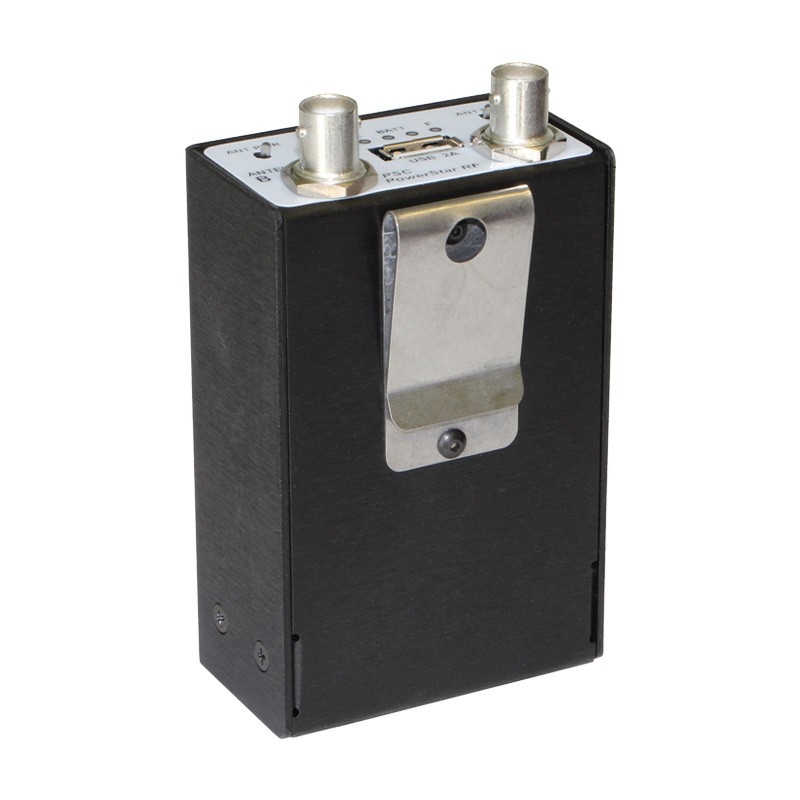

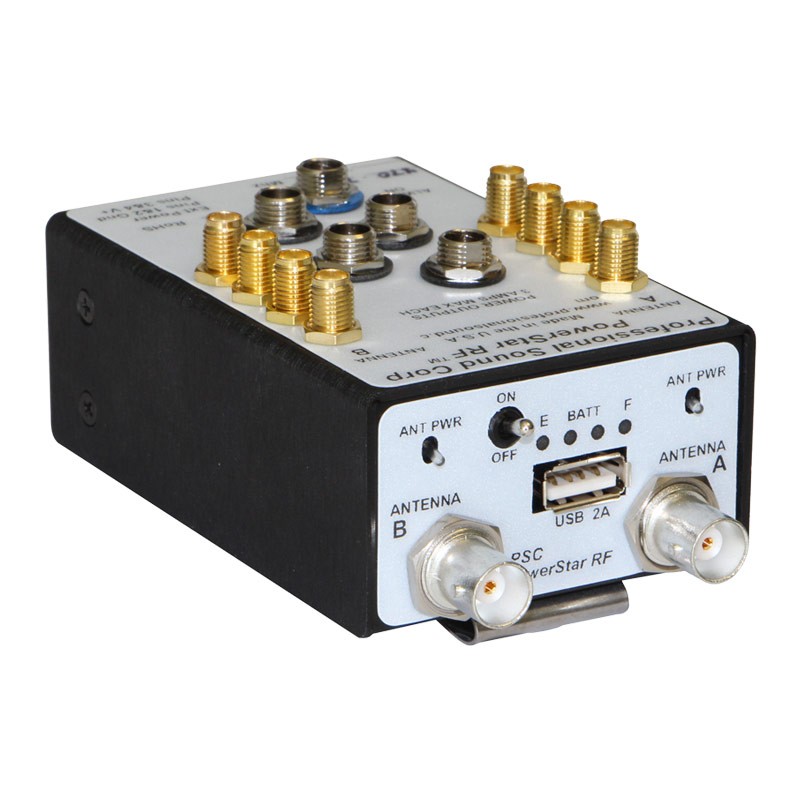

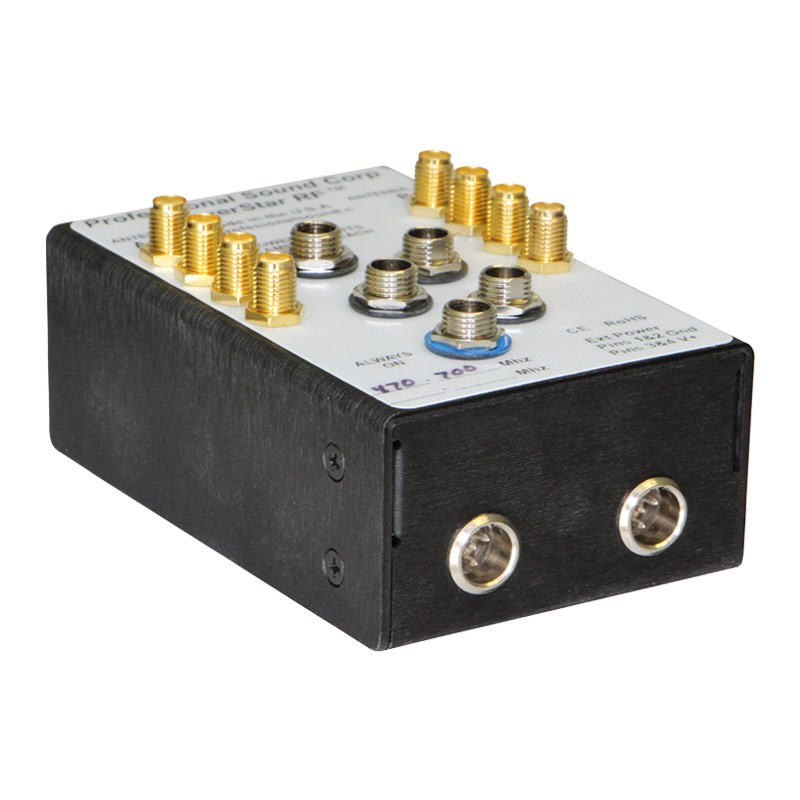

The PSC PowerStar RF has a built in power distribution system with dual external DC inputs allowing the use of two batteries or a battery and an AC power supply. It also has a built in diversity RF antenna distribution system. Each half of the RF distribution system offers an active 1x4 RF splitter. You can use this system to feed up to four diversity receivers from one diversity set of receiver antennas. This compact, rugged device was developed using the latest super low noise, high current RF amplifiers and will operate over various frequency ranges based on which bandpass filter the unit is built with. Its two inputs are traditional BNC connectors for ease-of-use in interfacing with your external antennas. It will also provide individually switched DC power to supply remote powered antennas and remote RF amplifiers.

Available in three bands:

  • Single Band, 470 - 700 MHz

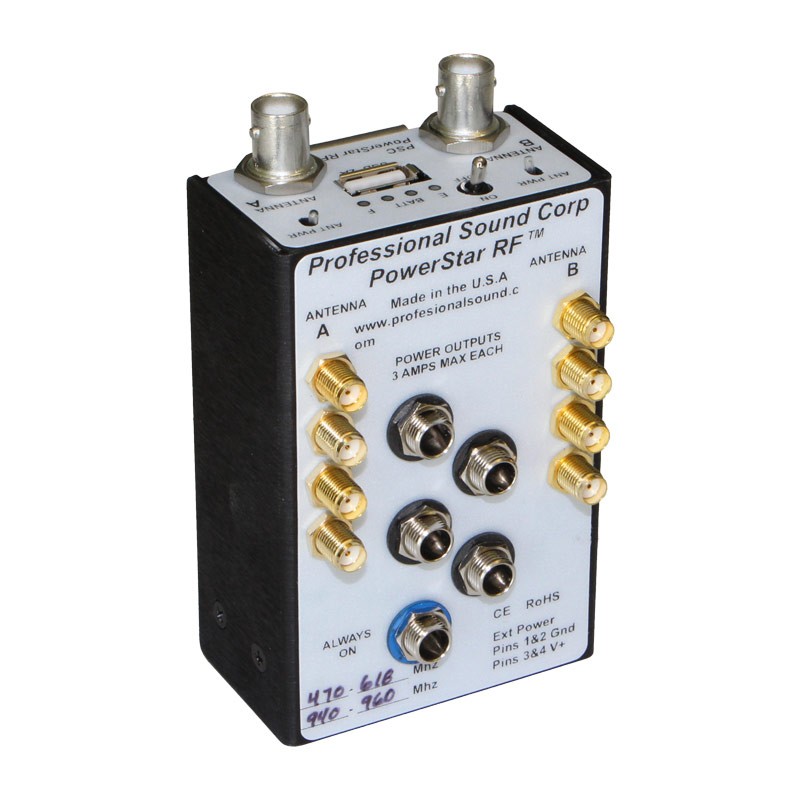

  • Dual Band, 470 - 618 MHz & 940 - 960 MHz

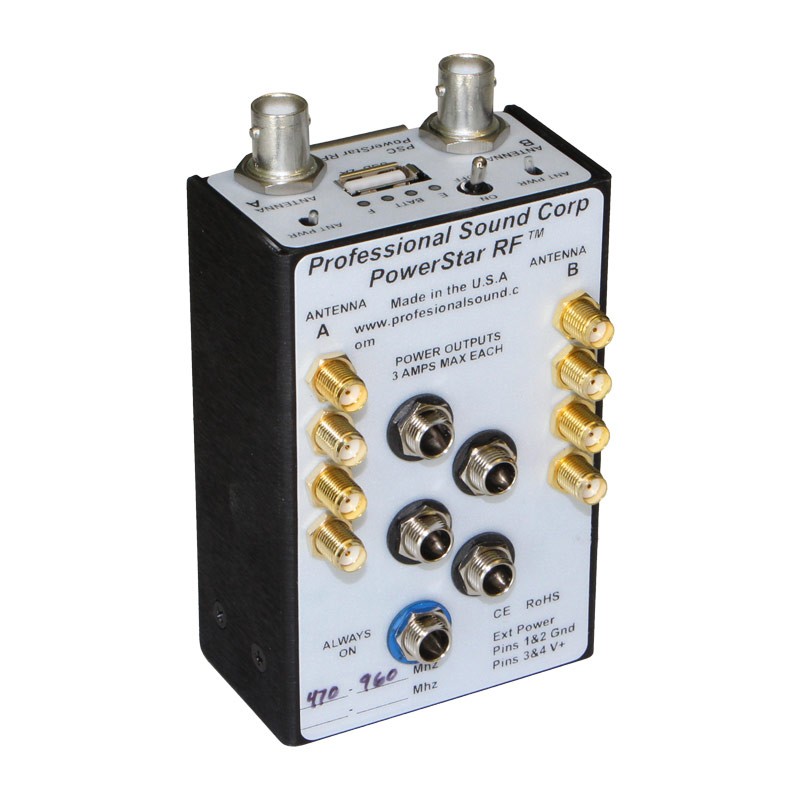

  • Wide Band, 470 - 960 MHz
  • Power: External DC, 10.8-18 Vdc @ 120 mA
  • Current Per Power Output: 3A max
  • Overall Max Current: 6 Amps with one battery, 10 Amps with two batteries. 6 Amps using optional AC power supply
  • USB Power Output: 5 V at up to 2 Amps
  • Frequency Range:
    • Single Band, 470 - 700 MHz
    • Dual Band, 470 - 618 MHz & 940 - 960 MHz
    • Wide Band, 470 - 960 MHz
  • Input Impedance: 50 Ohms
  • Output Impedance: 50 Ohms
  • Max Input Signal Before Limiting: +13dB
  • IP3: +31
  • Noise Figure: 0.8 dB
  • Chassis Material: Aircraft aluminum
  • End Plate Material: Stainless steel
  • Finish: Black anodized
  • Housing Size: 3.75 x 2.5 x 1.43 in | 96 x 64 x 36 mm
  • Weight: 7.5 oz | 213 g
