RF Venue CP Beam, High Gain Folding Helical Antenna - 470-698 MHz

RF Venue CP Beam, High Gain Folding Helical Antenna - 470-698 MHz RF Venue CP Beam, High Gain Folding Helical Antenna - 470-698 MHz RF Venue CP Beam, High Gain Folding Helical Antenna - 470-698 MHz
With $99 Purchase »
Your Price: $799.00
List Price: $799.00

Availability: Out of Stock
Quantity:
Manufacturer:

Sales SKU: RFVCPB
Product Code: CPB

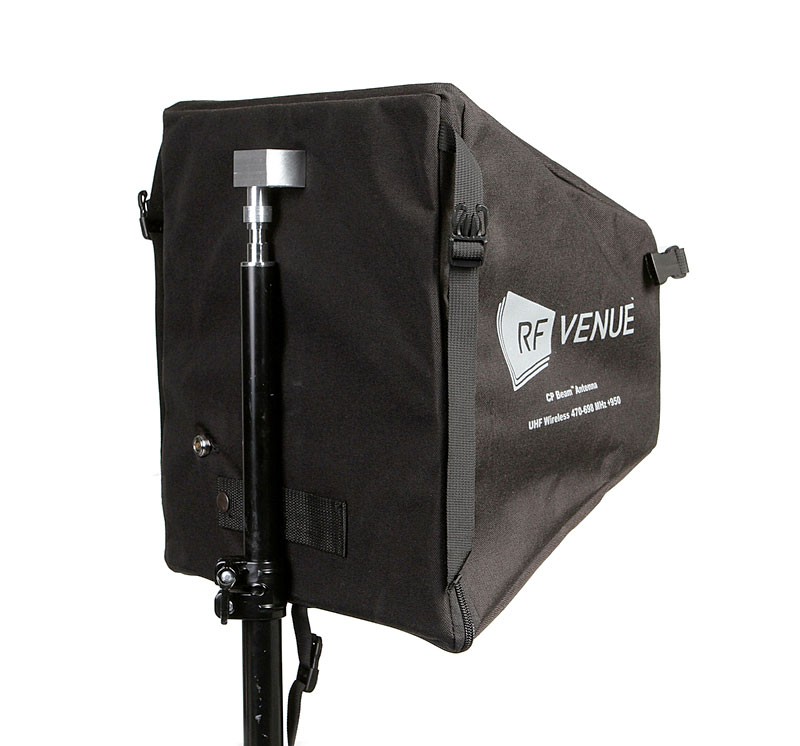

The RF Venue CP Beam Antenna maximizes useable range on any brand UHF wireless microphone, IEM, intercom, or 900 MHz assistive listening device in a lightweight, portable package. Unlike bulky helical antennas that need heavy flight cases for storage and travel, the CP Beam is quickly stowed and deployed—fitting in a 2RU rack drawer and weighing just 2.5 lbs—while delivering an impressive 9 dBd of gain.

With 9 dBd of forward-facing gain, the CP Beam provides high isolation of signals inside its beam-width, and high rejection of signals from outside. That means a serious boost in useable range on any UHF device. Production sound mixers, in particular, appreciate the CP Beam. It goes the distance between cart and boom, improves link quality on timecode syncs, and takes up less space in carts. Circularly polarized helical antennas like the CP Beam have become gold standards for live sound transmit applications, like in-ear monitors.

RF Venue CP Beam - Features:

  • 9 dBd directional gain

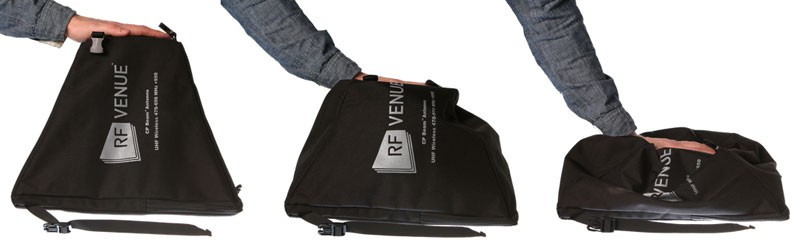

  • Collapses to 3" high
  • Fits in 2RU drawer
  • Extremely durable—survives drops and spills
  • 470-698 MHz + 950 MHz for assitive listening devices
  • Operating Frequency: 468 - 740 MHz
  • Bandwidth: 272 MHz
  • Return Loss: -13.15 dBm
  • Impedance: 50 Ω
  • Pattern: Beam
  • Polarization: RHCP
  • Beam Width:
    • Azimuth X: 63°
    • Azimuth Y: 70°
  • Ratio:
    • Azimuth X F/B: 15 dB
    • Azimuth Y F/B: 15 dB
    • Azimuth X F/S: 12 dB
    • Azimuth Y F/S: 12 dB
    • Squint: < 2
  • Gain: 9 dBd
  • Transmit Power: 50W
  • Connector: N female (BNC adapter supplied)
  • Mounting: 1/4-20, 3/18-16, and 5/8-27
  • Operating Temperature: 10 to 130° F | -23 to 54° C)
  • Color: Black
  • Dimensions (L x H): 14 x 14" | 355 x 355 mm
  • Weight" 2.5 lbs | 1100 g
