RF Venue Diversity Omni Antenna

RF Venue Diversity Omni Antenna RF Venue Diversity Omni Antenna RF Venue Diversity Omni Antenna
With $99 Purchase »
Your Price: $569.00
List Price: $569.00

Availability: Pre-Order »
Quantity:
Manufacturer:

Sales SKU: RFVDOMNI
Product Code: D-OMNI

NOTE: Accepting pre-orders. Available November 2021.

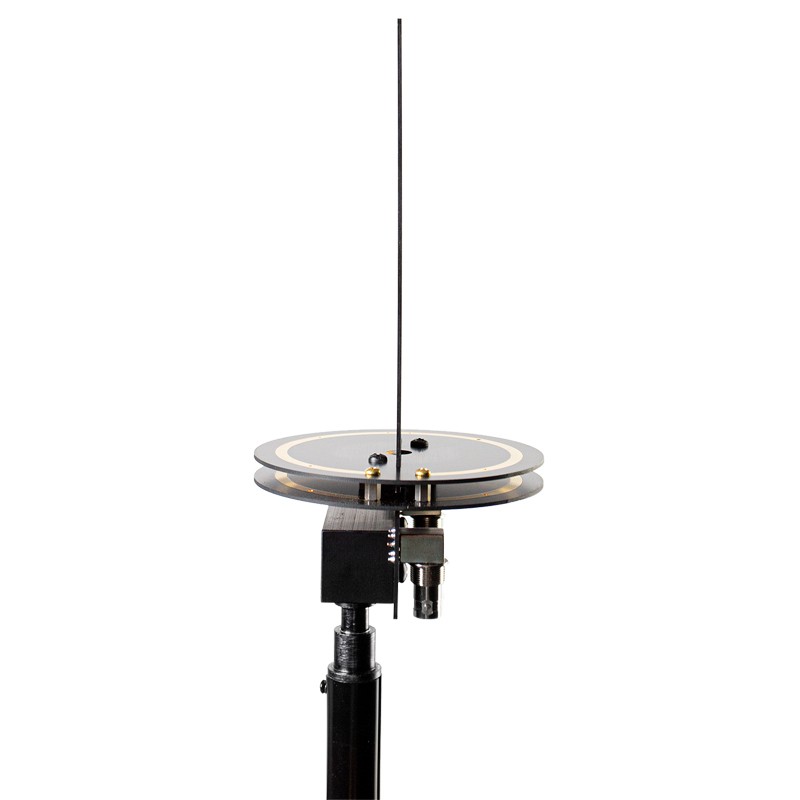

The RF Venue Diversity Omni Antenna is designed for omnidirectional coverage of wireless microphones. The Diversity Omni features two antennas on a single stand, capturing both vertically and horizontally polarized signals and eliminates the most common signal dropouts in a compact size.

The Diversity Omni also offers greater flexibility in antenna placement, since only one is needed in place of two separate antennas. Its weather-resistant design allows it to be mounted outdoors by installing simple protection for the connectors and using the provided cordura nylon cover.

The Diversity Omni Antenna is perfectly suited for multi-zone projects where wireless microphones may move between rooms, or outdoors where wide areas of coverage are needed, such as sports venues, theme parks, and amphitheaters.

To connect the Diversity Omni Antenna to a wireless microphone system, simply connect both the A and B antenna inputs from an antenna distribution system like the RF Venue DISTRO4 or DISTRO9 HDR and position the antenna where coverage is desired.

Unlike traditional omnidirectional antennas, the Diversity Omni Antenna allows receivers to see a constant signal regardless of microphone orientation - allowing the presenter to hold a wireless microphone in any position relative to the antenna. A single Diversity Omni provides superior coverage to two traditional omni antennas, allowing cost savings as well as reduced installation time.

The Diversity Omni requires no external power, two coax cables (not included), and works with all wireless brands, analog and digital between 470 and 616 MHz.

  • Electrical:
    • Operating Frequency: 470 - 616 MHz
    • Bandwidth: 146 MHz
    • Average Return Loss (Vertical): -10.5 dB
    • Average Return Loss (Horizontal): -13 dB
    • Impedance: 50Ω
  • Vertical Monopole:
    • Beam Width: 360° azimuth
    • F/B Ratio: 0 dB
    • F/S Ratio: 0 dB
    • Gain: +2 dBd @ 500MHz
  • Horizontal Folded Loop:
    • Beam Width: 360° azimuth
    • F/B Ratio: 0 dB
    • F/S Ratio: -1 dB
    • Gain: -2 dBd @ 500MHz
  • Physical:
    • Color: Black and Gold
    • Connectors: (2) BNC female
    • Mount Threads: 1/4-20, 3/8-16, 5/8-27
    • Operating Temperature: -9.4 to 129.2° F | -23 to 54° C
    • Dimensions (L x H): 4.1 x 8 in | 105 x 204 mm
    • Weight: 6.6 oz | 187 g
