Rolls HV6 Stereo Headphone Volume Control

Share

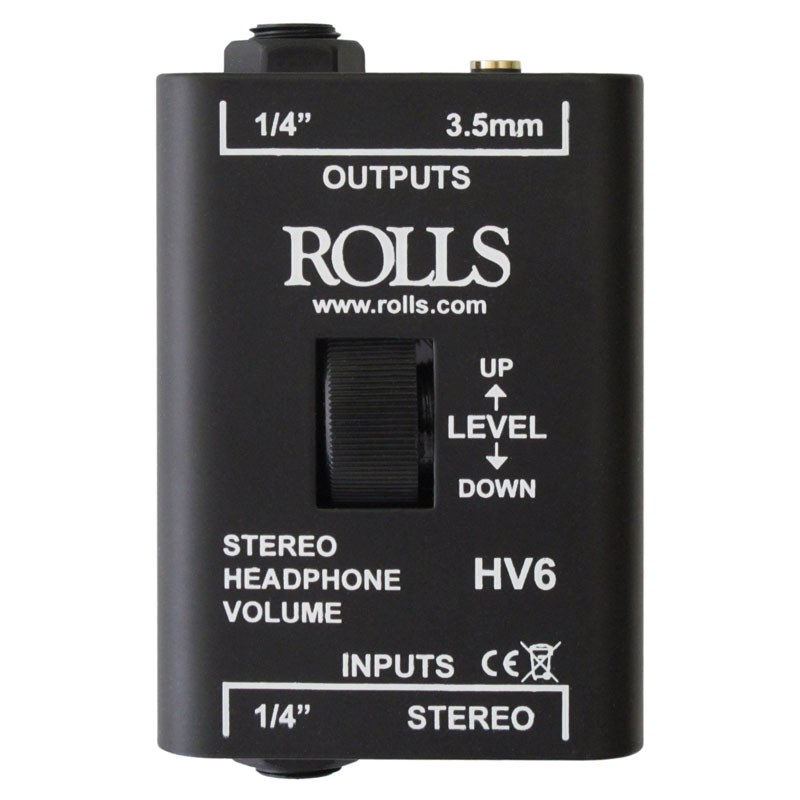

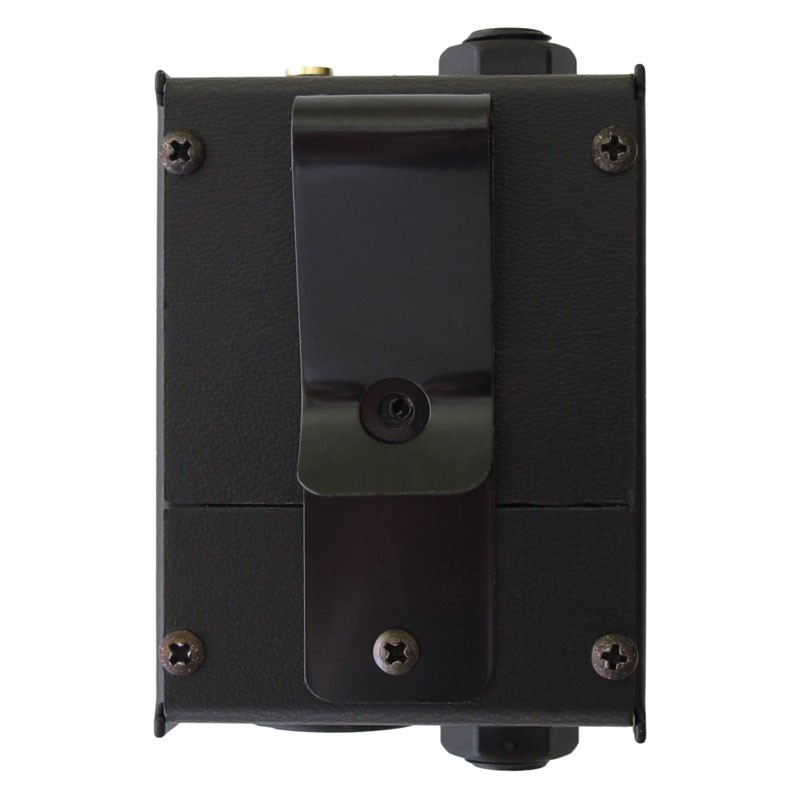

The Rolls HV6 is an in-line headphone volume control. It accepts a stereo headphone level and allows the user to attenuate the volume to their headphones. Since the unit is passive and requires no power, it can go anywhere in a headphone level signal path, and does not need to be located near a power source. With the included belt clip and recessed volume, the HV6 is perfect for live applications.

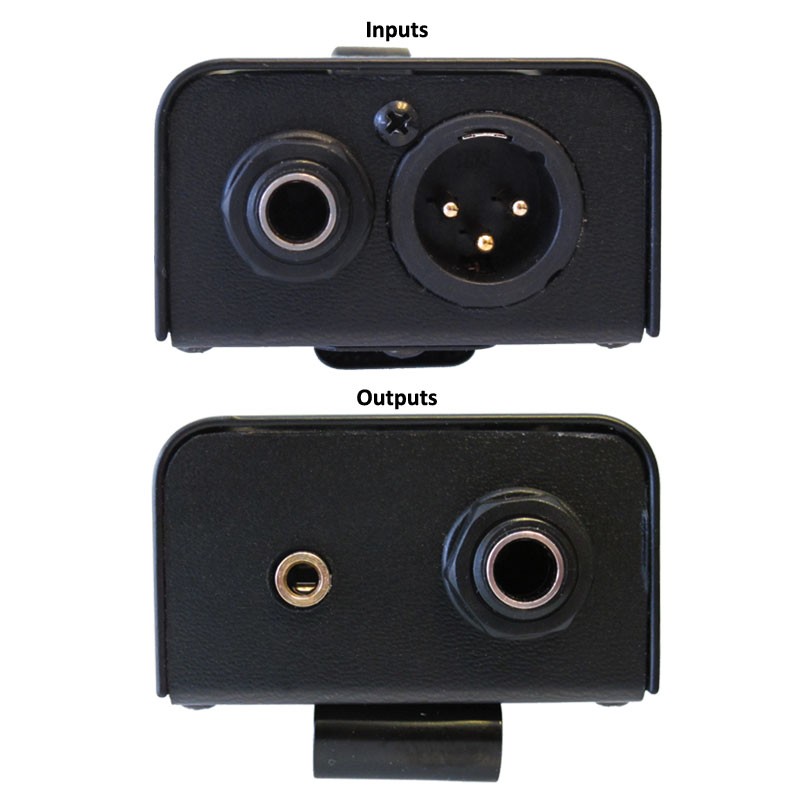

A 1/4" stereo to XLR cable is provided to connect the HV6 to a stereo input. The XLR connector is a locking type that will not pull out if you are using the HV6 in a live application. It comes with 1/4" and 3.5mm outputs for connection to your headphones. Dimensions (H x W x D): 1.3 x 2.3 x 3 in

Note: NOTE: The XLR connector is NOT for mics or line level siganls. It is for headphone level input only. It is also not a balanced input. It is a stereo input (Pin 1 = left , Pin 2 = right, and Pin 3 = ground)..
