Shure AD600-DC Axient Digital Spectrum Manager w/ DC Power

Share

The Shure Axient Digital AD600 Digital Spectrum Manager is a powerful, next-generation tool for planning and managing frequency coordination in professional audio applications. With a large, full-color 6.6-inch front panel screen, the AD600 makes viewing easy while real-time scanning and monitoring of RF activities keeps live information available when you need it most.

Use the guided coordination features to plan, scan, and deploy frequencies to your entire system. Additional tools are available to analyze the spectrum, capture data, and monitor audio from compatible devices on your network. The AD600 is a single-tool solution to manage the RF spectrum.

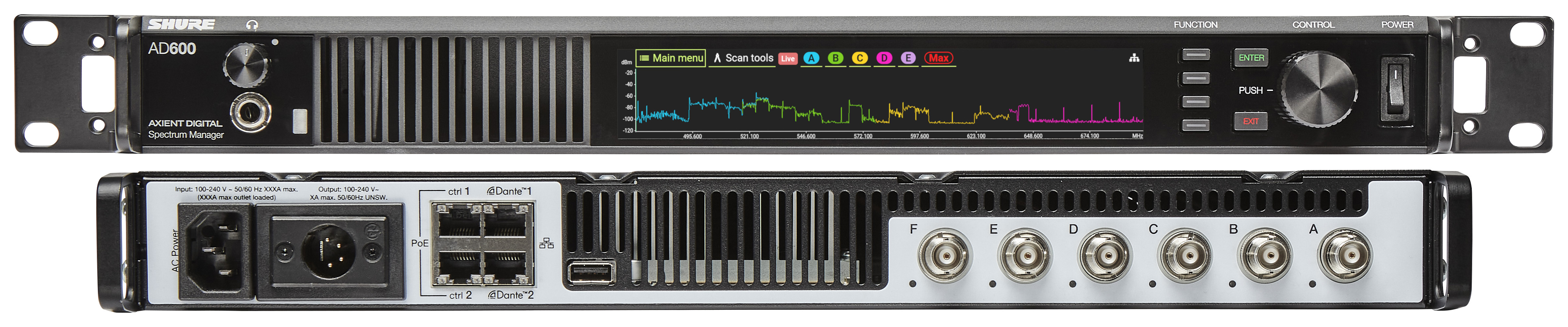

Close up image is available here.

Shure Axient Digital AD600 - Features:

• Advanced, comprehensive RF coordination for your network
• Beyond fast, real-time scanning to find available frequencies and monitor RF activity
• Large, 6.6-inch color display for viewing and analyzing the RF spectrum
• Guided RF coordination saves time and effort in challenging RF environments
• Tools for viewing, analyzing, and listening to RF activity
• 174 MHz to 2 GHz tuning range supports multiple frequency bands
• Six antenna connections to support coverage for multiple antennas and zones
• Data capture and storage to archive RF information for analysis
• Network-enabled for large scale system deployments
• USB ports for external data storage of scans, event logs, and other data
• Dante-enabled for audio monitoring of your networked devices
• Compatible with Wireless Workbench to extend control and monitoring
• AC and DC powered options (LSC stocks thes latter)

• RF Tuning Frequency Range: 174 - 2000 MHz
• RF Tuning Step Size: 25 / 200 kHz
• Noise Floor: -154 dBm/Hz
• Image Rejection: >90 dB
• Spurious Response: <-100 dBm
• Dimensions (H x W x D): 1.7 x 19.0 x 11.25 in | 43 x 482 x 285.7 mm
• Weight: 8.15 lbs | 3.7 kg
• Housing: Steel
• Power Requirements: 110 to 240 VAC, 50 - 60 Hz
• Current Drain: 1.2 A
• Temperature Range:
  • Operating: 0 to 122 °F | -18 to 50 °C
  • Storage: -20 to 165 °F | -29 to 74 °C
• RF Input:
  • Connector Type: BNC
  • Impedance: 50 Ω
  • Maxiumum Input Level: +10 dBm
  • Bias Voltage: 12 - 13.5 VDC
• Headphone Monitor Audio Output
  • Audio Frequency Response: 20 Hz - 20 kHz, ± 3 dB
  • Configuration: 1/4 in | 6.3 mm connector; unbalanced stereo
  • Impedance: 63 Ω
  • Maxiumum Signal Level: 300 mW
• Pin Assignments:
  • Tip: Audio +, Left
  • Ring: Audio +, Right
  • Sleeve: Ground
• Networking:
  • Network Interface:
    • Quad Port Ethernet
    • 10/100/1000 Mbps
    • Redundant Dante Support
    • PoE supported on the control ports
  • Network Addressing Capability: DHCP or Manual IP Address
