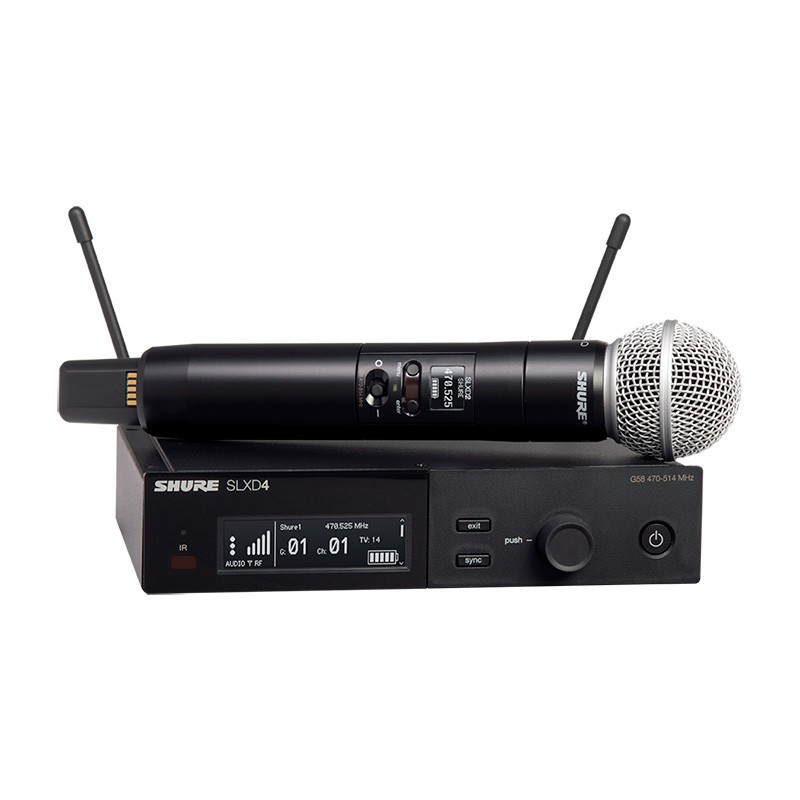

Shure SLXD24/SM58-G58 Wireless Vocal System with SM58 Capsule

Share

NOTE: This Shure SLXD24/SM58-G58 Wireless Vocal System with SM58 cardioid mic capsule has the G58 frequency band (470 - 514 MHz)

The Shure SLXD24/SM58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required.

Package includes:
(1) SLXD4 Single-Channel Digital Wireless Receiver
(1) SLXD2/SM58 Digital Wireless Handheld Transmitter with SM58 Mic Capsule
(1) Wireless Microphone Clip
(1) Rackmoounting Kit
(1) Shure PS43US 15-VDC Power Supply
(2) 1/4 Wave Antennas and rackmount accessories
(2) AA Batteries

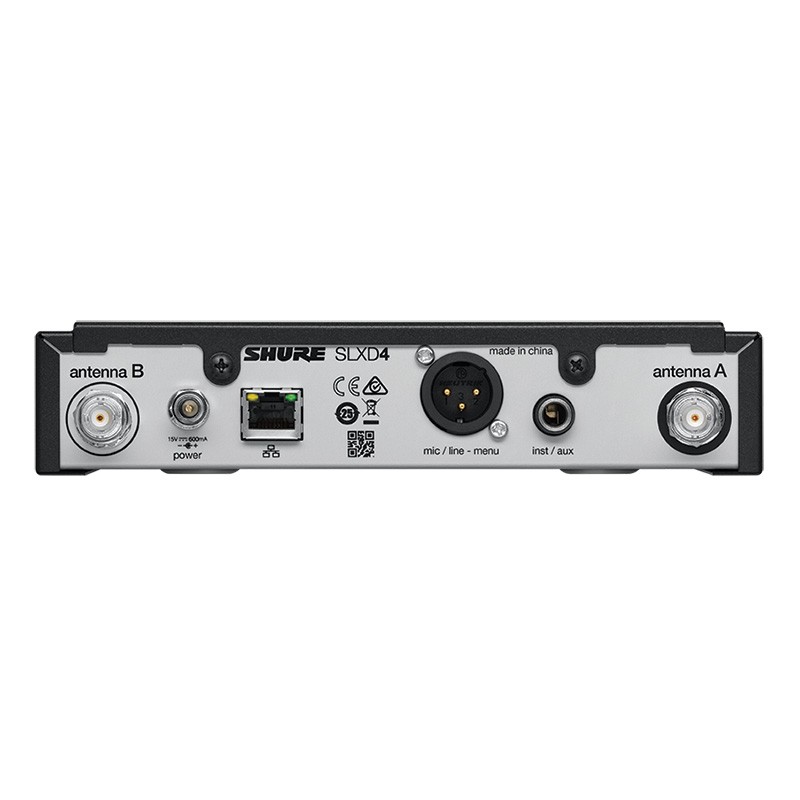

• SLXD4 Digital Wireless Receiver:
  • RF Input:
    • Spurious Rejection: >75 dB, typical
    • Connector Type: BNC
    • Impedance: 50 Ω
  • Audio Output:
    • Gain Adjustment Range: -18 to +42 dB in 1 dB steps
    • Configuration:
      • 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio -, Sleeve = ground)
      • XLR: Balanced (1 = ground, 2 = audio +, 3 = audio -)
    • Impedance:
      • 1/4" (6.35 mm): 1.3 kΩ (670 Ω unbalanced)
      • XLR:
        • Line: 400 Ω (200 Ω unbalanced)
        • Mic: 150 Ω
    • Full Scale Output:
      • 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
      • XLR Settings:
        • Line: +15 dBV
        • Mic: -15 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection:
      • 1/4" (6.35 mm): Yes
      • XLR: Yes
  • Networking:
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 328 ft | 100 m
  • Housing: Galvanized Steel
  • Power Requirements: 15 VDC @ 600 mA, supplied by external power supply (tip positive)
  • Dimensions (H x W x D): 1.65 x 7.76 x 5.98 in | 42 x 197 x 152 mm
  • Weight: 1.8 lb | 816 g, without antennas
• SLXD2 Digital Wireless Transmitter:
  • Audio Input:
    • Configuration: Unbalanced
    • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
      Note: Dependent on mic type
  • RF Output:
    • Antenna Type: Integrated single-band helical
    • Occupied Bandwidth: < 200 kHz
    • Modulation Type: Shure proprietary digital
    • Power: 1 mW / 10 mW; varies by region
  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Housing: Aluminum
  • Dimensions (Diameter x L): 1.46 x 6.93 in | 37.1 x 176 mm
  • Weight: 5.2 oz | 147 g
