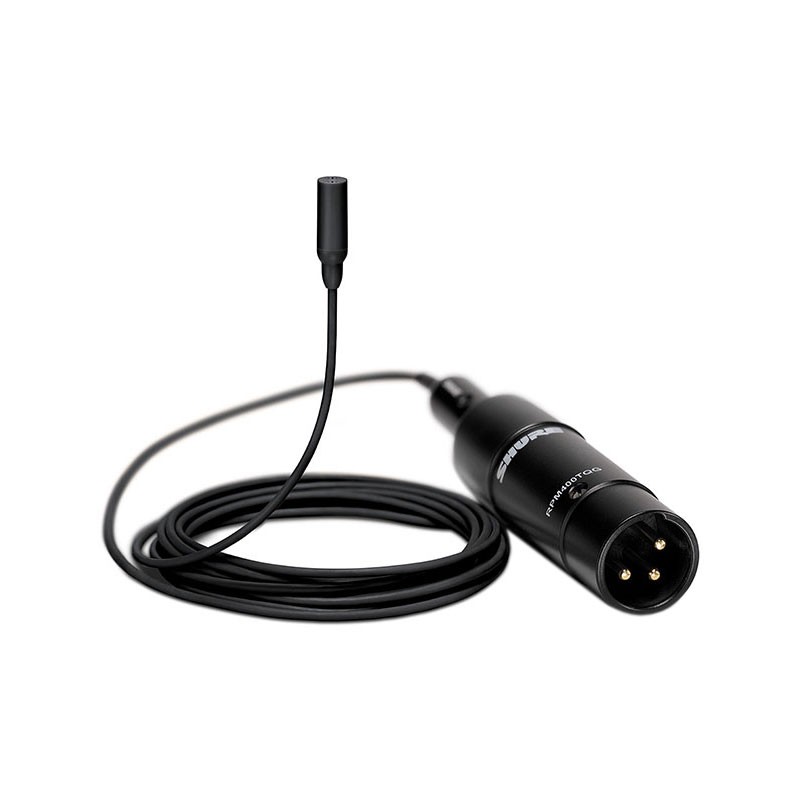

Shure TwinPlex TL48 Subminiature Ominidirectional Lavalier w/ 3-Pin Female XLR

With $99 Purchase »
Your Price: $499.00
List Price: $624.00

Availability: Out of Stock

Product Code: TL48B/O-XLR-A

NOTE: This TwinPlex TL48 version has a 1.6mm cable with a 3-Pin Female XLR connector and accessories. Available only in Black.

In dialogue or monologue, song or speech, a single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

Indoor or outdoor, inclement conditions won't hold production back. The fixed frequency cap features an internal hydrophobic woven lining that resists sweat and moisture. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night.

The TwinPlex TL48 offers a tailored response with a mid-range rise that's ideal for speech and dialogue applications, such as film and TV. Designed with leading audio professionals' input, the TL48 is easily concealed in a costume or directly against the skin under wardrobe, and offers
extensive accessories to ensure quick, easy, and secure mounting—all with no impact on sound quality.

TwinPlex TL48 Subminiature Lavalier - Features:

  • With a fixed frequency cap and mid-band boost that accentuates dialogue, the TL48 is ideal for film and TV applications
  • Improved off-axis consistency, due to the patent pending dual-diaphragm design, yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
  • Paintable 1.6 mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Sound signature: Tailored for dialogue (6dB mid-band boost at about 7kHz)
  • Low sensitivity
  • Colors: Black, Tan, White
  • Connectors: LEMO, MTQG/TA4F, MicroDot, XLR/Preamp, No Connector/Pigtail
  • Included accessories:
    (1) Single Tie Clip
    (1) Dual Tie Clip
    (5) Standoff for Tie Clip
    (1) Vampire Mount
    (1) Sticky Vampire Mount
    (2) Foam Windscreen
    (1) Clear Sticky Mount
    (10) Sticky Mount Adhesives
    (1) Storage Case for TL Lavalier
  • Microphone Capsule: Dual-diaphragm, pre-polarized condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity at 1 kHz: -45.0 dBV (5.62 mV)
  • Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
  • Signal-To-Noise Ratio: 69.5 dB
  • Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
  • Maximum SPL: 142.0 dB; 1 kHz at 1% THD, typical
  • Dynamic Range: 117.5 dB typical
  • Microphone Current Draw: 120 to 240 μA, typical
  • Bias Voltage, Recommended Operating Voltage: 5 VDC
  • Housing: Molded ABS
  • Polarity:
    • LEMO, NC, MDOT: Positive pressure at diaphragm leads to negative voltage with respect to ground
    • MTQG, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground
  • Cable Diameter: 1.6 mm
  • Cable Length:
    • MTQG, LEMO, MDOT: 66 in | 1.67 m
    • No Connector/Pigtail: 96 in | 2.43 m
  • Microphone Length: 13.5 mm
  • Microphone Diameter: 5.6 mm
  • Net Weight w/ Cable: 0.42 oz | 12.0 g
