Sound Devices CL-16 Linear Fader Controller for the 8-Series

Sound Devices CL-16 Linear Fader Controller for the 8-Series Sound Devices CL-16 Linear Fader Controller for the 8-Series Sound Devices CL-16 Linear Fader Controller for the 8-Series Sound Devices CL-16 Linear Fader Controller for the 8-Series
Your Price: $5,495.00
List Price: $5,495.00

Availability: Usually Ships In 7 - 14 days
Quantity:
Manufacturer:

Sales SKU: SOUCL16
Product Code: CL-16

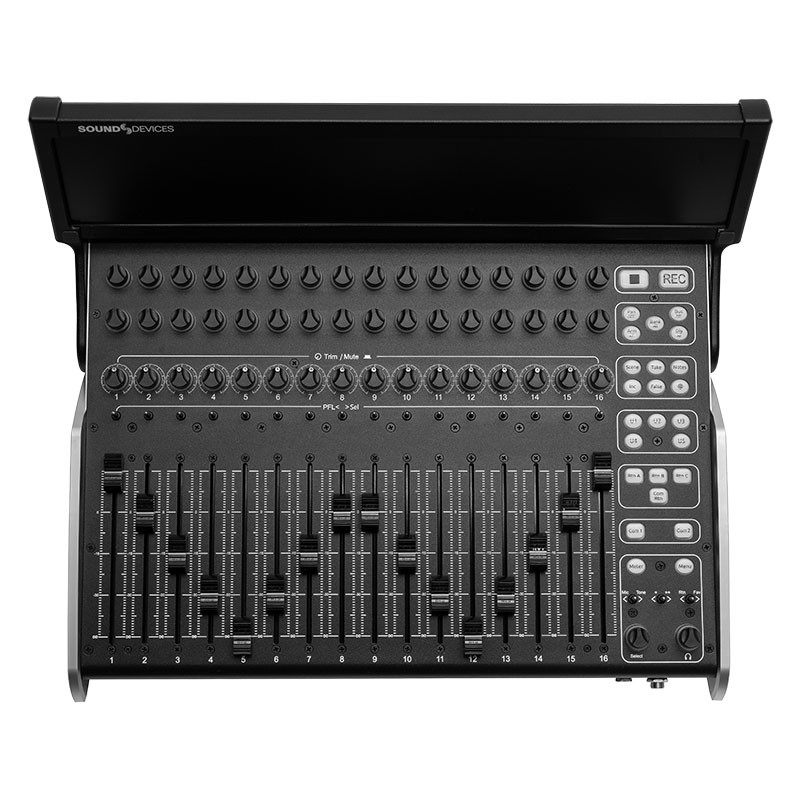

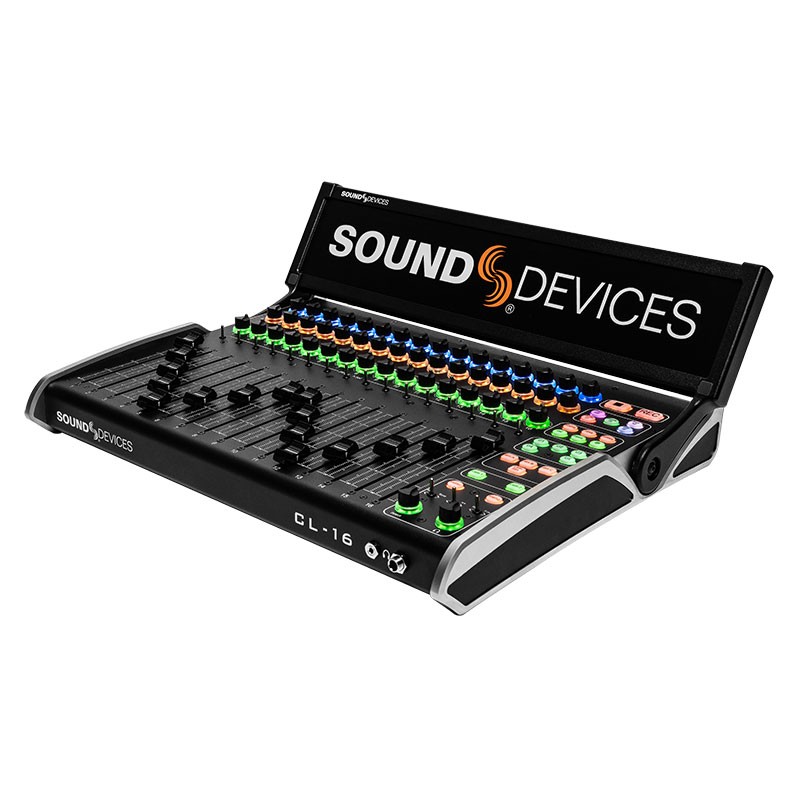

The Sound Devices CL-16 Linear Fader Control Surface for 8-Series combines the simplicity of traditional analog consoles with the power and flexibility of digital consoles. This bespoke control surface enhances the experience of cart-based mixing with its intuitive operation, 16 silky-smooth faders, 16 dedicated trims, and a panoramic LCD. All of this is elegantly engineered into a 16.3"-wide compact unit which fits in a cart and operates from 12 V DC.

Sound Devices CL-16 Linear Fader Controller - Features:

  • Compatible with the 888 and Scorpio at launch, with support for the 833 in a later firmware update
  • 16 dedicated rotary trim controls
  • 16 dedicated faders
  • Intuitive design philosophy where channels 1-16 have dedicated, non-banking controls like a traditional analog console, and other important features may be quickly accessed

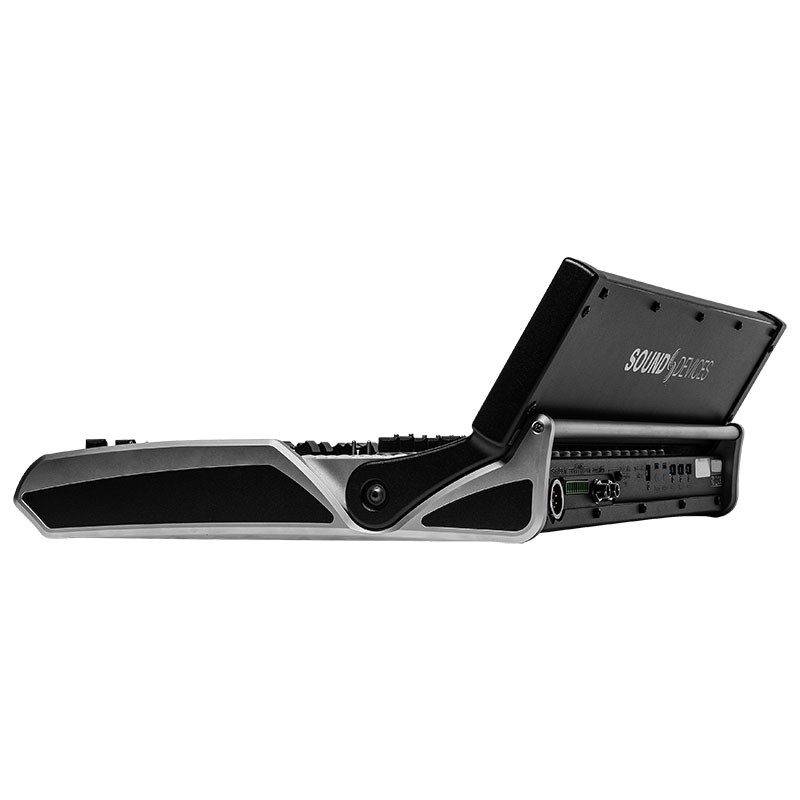

  • Large, sunlight-readable LCD screen folds down for easy and safe storage and transport
  • 32 multi-function rotary controls for EQ, pan, channels 17-32 gains, bus gains, output gains, and more
  • New high-reliability, silent, soft-touch buttons for key functions like record, stop, metadata, coms, returns, and more
  • Five user-assignable buttons

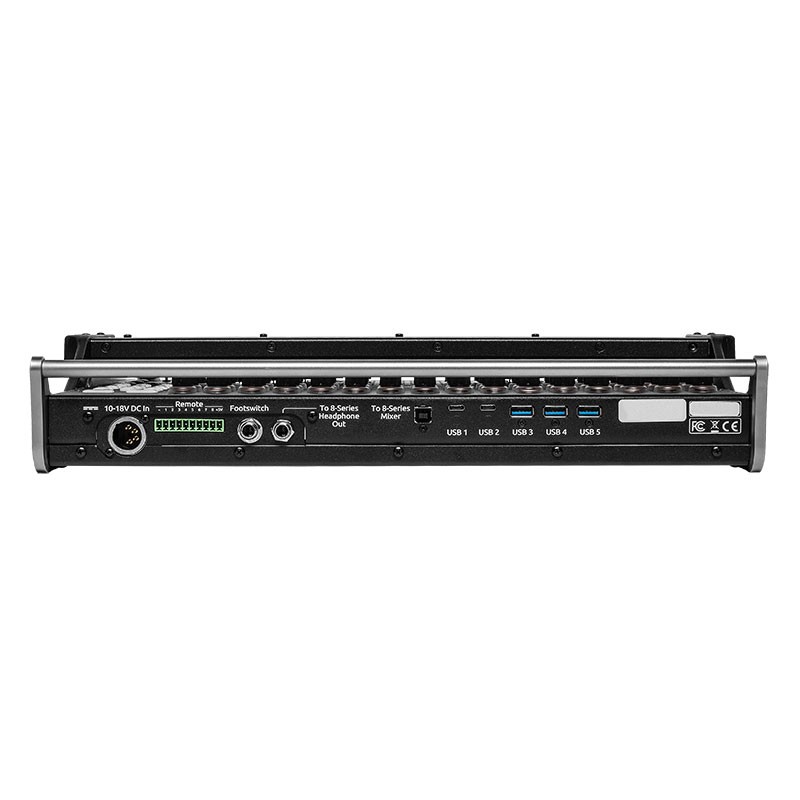

  • Built-in 5-port USB hub with (two USB-C and three USB-A) for keyboards, SD-Remote tablet, and other USB peripherals
  • 1/4" and 1/8" headphone jacks
  • Remote 10-Pin connector for custom wiring of LEDs and switches, along with 1/4" foot pedal input
  • Connects via USB-B
  • 12 V DC-powered via 4-pin XLR
  • 16 ultra-smooth gliding Penny & Giles 100 mm linear faders – best feeling faders on the market
  • Quick bottom panel access for field servicing and cleaning of faders
  • Ships with USB-A to -B cable, 1/4" to 1/4" TRS, and 10-pin Phoenix Screw Terminal Block

Read the CL-16 FAQ to learn more!



NOTE: This item is not eligible for free shipping.
  • Voltage: 10-18 V DC at XLR-4. Pin 4 = +, pin 1 = ground
  • Current Draw:
    • Min: 560 mA quiescent at 12 V DC in, all USB ports left open
    • Mid: 2.93 A, USB ports total load 5 A
    • Max: 5.51 A, USB ports total load 10 A
  • USB-A Ports: 5 V, 1.5 A each
  • USB-C Ports: 5 V, 3 A each
  • Remote Ports:
    • Power: 5 V, 1 A available on pin 10
    • Input: 60k ohm typical input Z. Vih = 3.5 V min, Vil = 1.5 V max
    • Output: 100 ohm output Z when configured as output
  • Foot Switch: 1k ohm typical input Z. Connect to ground to operate (active low)
  • Dimensions: (H x W x D):
    • Screen Folded Down: 3.15 x 17.13 x 12.96 in | 8.01 x 43.52 x 32.913 cm
    • Screen Folded Up: 5.76 x 17.13 x 14.13 in | 14.64 x 43.52 x 35.90 cm
  • Weight: 10 lb 6 oz | 4.71 kg
