ikan IKC-AH2S Advanced HDMI to SDI Converter

Share

The ikan IKC-AH2S, which features full HD HDMI to SDI Conversion, delivers field-tested reliability, solid construction, and all the features required for consistent professional performance.

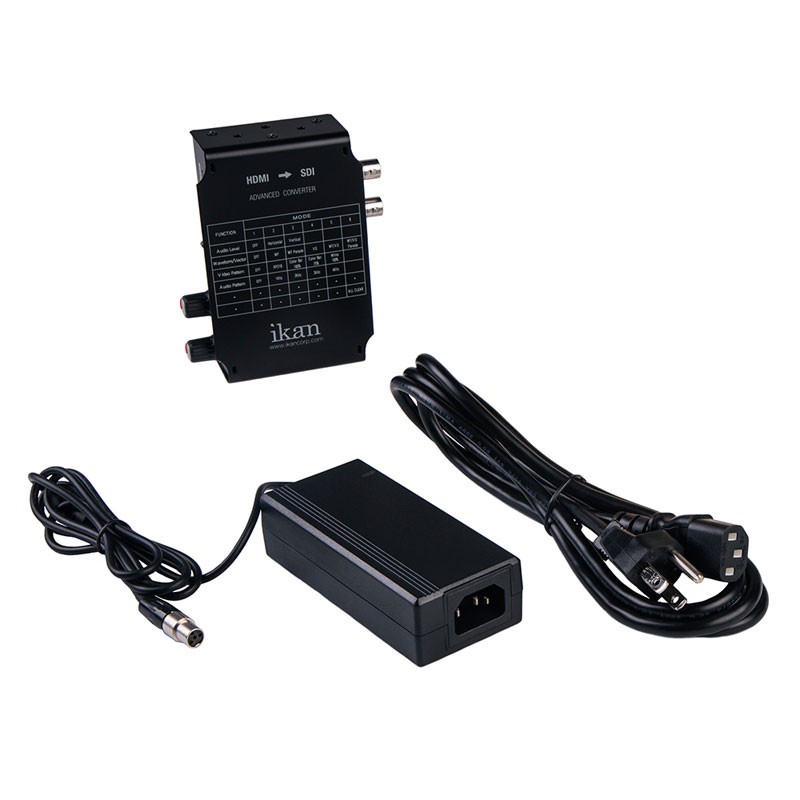

The IKC-AH2S has video monitoring features such as waveform and vectorscope, a video test pattern generator, up to 8-ch HDMI embedded audio, and an audio test pattern generator. A 1/4"-20 threaded mounting point is on the bottom of the converter. Package includes an AC Adapter, CD Manual, HDMI to SDI Converter, and power cord.

ikan IKC-AH2S Features:

• Full HD HDMI to SDI conversion
• Video Monitoring Features: Waveform
• (Single/Parade) and Vectorscope
• Video Test Pattern Generator: Color Bars and RP219
• Up to 8 channels of HDMI embedded audio
• Audio test pattern generator (1 to 4 kHz)
• 1/4"-20 thread on bottom for mounting

• Audio Input: Audio Input Port (stereo 3.5 pi)
• Video Outputs: 2 x SDI (BNC Port)
• Inputs: 1 x HDMI (HDCP v.1.1), 19-pin female
• Power Consumption: 6W
• Operating Temperature: 14° to 104° F | -10° to 40° C
• Power Requirements: 4DC (7V-24V) or AC Adapter (100 to 230V, 50 Hz/60 Hz)
• Dimensions: 4.6 x 3.9 x 1.4 in
• Weight: 0.8 lbs
