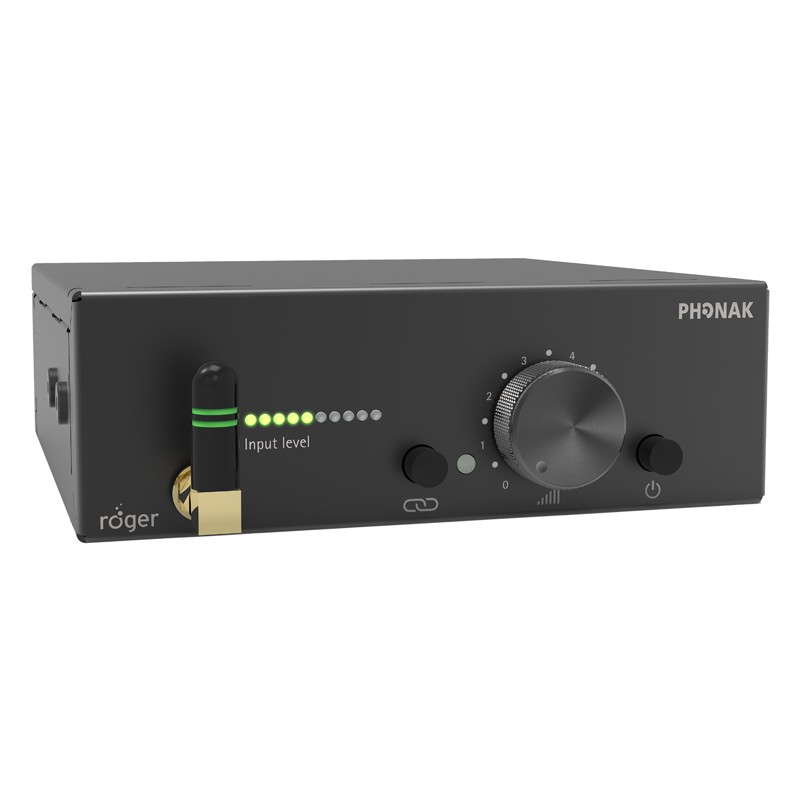

Phonak Roger BaseStation Stationary Transmitter

With $99 Purchase »
Your Price: $2,119.00
List Price: $2,119.00

Availability: In Stock

Rent For: $70.00/day
Quantity:
Manufacturer:

Sales SKU: PHOROGER-BST
Product Code: Roger BaseStation 052-3342

Phonak's Roger technology uses the latest digital standard and operates on the license-free 2.4 GHz band. The wireless Roger communication system includes five components (each sold separately):

  1. Roger Earpiece - a virtually invisible and tiny earpiece and wireless receiver
  2. Roger BaseStation - a stationary transmitter that delivers high quality speech signals to the wireless Roger Earpiece
  3. Roger TouchScreen Mic - a mobile transmitter with a built-in mic
  4. Roger Repeater - designed to allow enhanced listening coverage over very large areas
  5. Roger Multimedia Hub - a versatile transmitter that can be connected to any multimedia device

The wireless Roger communication system is installed at the push of a button. The easy set-up and immediate connection help save valuable time. Setting up a Roger system requires no frequency channel allocation: adaptive frequency hopping reduces the risk of interference.

Roger systems are ideal for people working in broadcasting and entertainment, who rely on seamless communication with directors, producers, and sound technicians. They are utterly discreet, easy-to-use and install, and offer unrivalled intelligibility.

About The Roger BaseStation

The Roger BaseStation stationary transmitter, delivers high quality speech signals to the wireless Roger Earpiece. The BaseStation's use of Phonak's 2.4 MHz band and fully automatic frequency hopping technology ensures that the signal is transferred to the in-ear receiver with unrivalled sound quality.

The Roger BaseStation comes with a rack and wall mount.

Phonak Roger BaseStation - Features:

  • License-free 2.4 GHz transmission
  • Adaptive automatic frequency hopping
  • Balanced audio in (XLR or 6.3)
  • Audio input graphical display
  • Volume control: -14 to +12 dB
  • Bandwidth: 100 to 7200 Hz
  • Transmission Range: 15 to 40 m (depending on environment)
  • Audio:
    • Bandwidth: 100 Hz - 7200 Hz
    • SNR: 55 dB (@ 1 kHz)
    • THD: -42 dB (< 0.8 % @ 1 kHz)
  • Power:
    • Supply: 100 to 240 VAC to 5.3 VDC / 4 A
    • Consumption: 225 mW (75 mA @ 3 V)
    • Emmission: 100 mW
  • Connection:
    • Range Unbalanced Input (3.5 mm jack):
      • Nominal: -27 dBu / 0.035 Vrms
      • Max: 0 dBu / 0.77 Vrms
    • Range Balanced Input (XLR + 6.3 mm jack):
      • Nominal: 0 dBu / 0.77 Vrms
      • Max: +20 dBu / 7.75 Vrms
    • Impedance Unbalanced Input: 25 kΩ
    • Impedance Unbalanced Input (XLR + 6.3 mm jack): 2.2 kΩ
    • Connections Type & Pinout Unbalanced Input (3.5 mm jack):
      • Tip: Audio left
      • Ring: Audio right
      • Sleeve: GND
      • Compatible with mono or stereo inputs (stereo signals are transformed into mono)
    • Connections Type & Pinout Balanced Input (XLR):
      • 1: GND
      • 2: Hot (+)
      • 3: Cold (-)
    • Connections Type & Pinout Balanced Input (6.3 mm jack):
      • Tip: Hot (+)
      • Ring: Cold (-)
      • Sleeve: GND
  • Standards Applied:
    • Electrical Safety: IEC/ EN 60950-1
    • Radiocom 2.4 GHz: EN 300 328
    • EMC: EN 301.489-1, -3, -9, -17
    • FCC: Part 15C
    • IC: RSS-247
  • Additional Roger System Information:
    • Transmission Technology: 2.4 GHz adaptive frequency hopping
    • Number of Roger Earpiece Receivers In Use In A Roger Network: Unlimited
    • Number of Roger Transmitters In Use In A Roger Network: (1) Roger BaseStation per network and up to (35) Roger TouchScreen Mics
    • Operating Range to Roger Earpiece: 49 to 131 ft | 15 to 40 m, depending on environment
    • Operating Range for Connect feature: 4 in | 10 cm
  • Optional Accessories:
    • Dual Rack Mount Kit: Kit to install (2) Roger BaseStations in a 19 inch rack
    • Power Supply Adapter: UK, AUS
  • General:
    • Color: Black
    • Temperature:
      • Operating Conditions: 32° to 113° F | 0° to + 45° C, relative humidity of <95% (non-condensing)
      • Transport & Storage Conditions: -4° to 140° F | -20° to 60° C, relative humidity of 90% for a long period
    • Housing Dimensions (L x W x H): 5.1 x 5.1 x 1.6 in | 132 x 132 x 44 mm
    • Weight: 1.1 lbs | 488 g
