Wisycom BPA42HPN Stand-Alone Rear-Panel Socket

Share

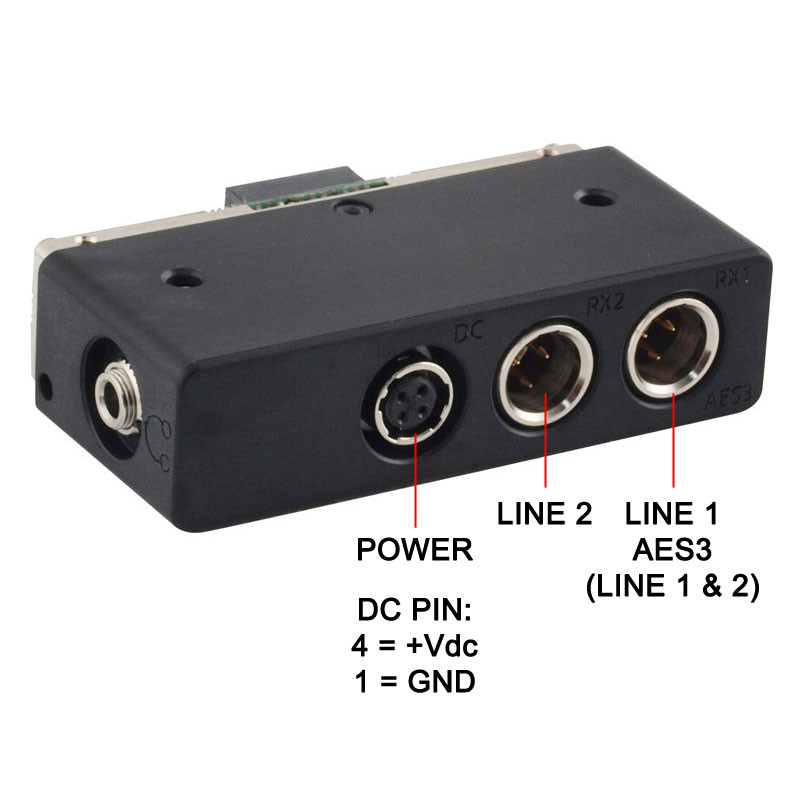

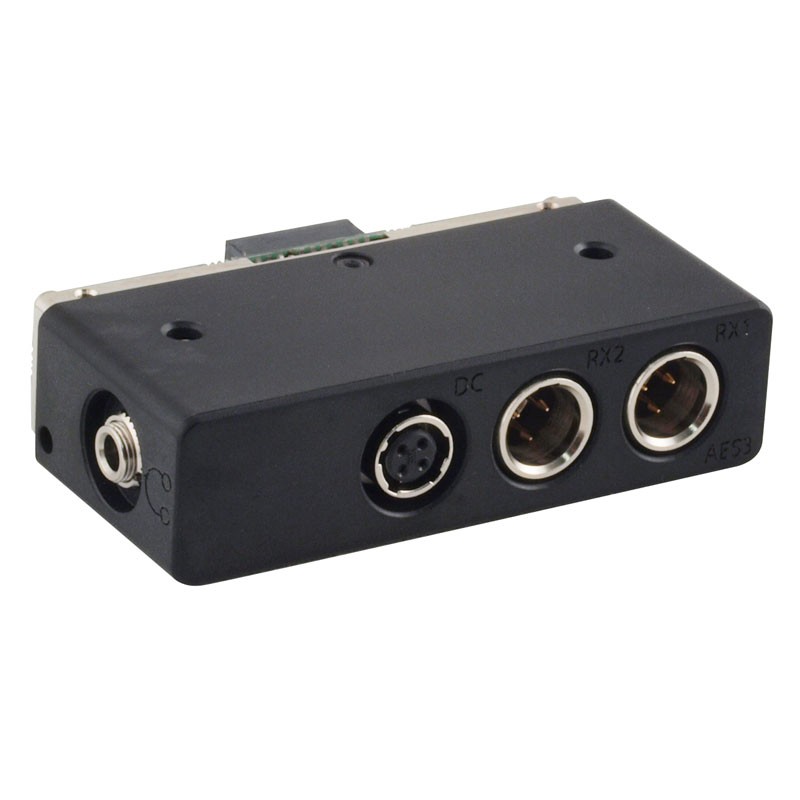

The Wisycom BPA42HPN Stand-Alone Rear-Panel Socket is designed for the MCR41/MCR42 wireless receivers. It supplies the following connections:

• Analogue Audio Output (Line 1 & 2):
  • Audio Line-Output 1 & 2: Electronically balanced on (2) 3-pin mini-XLR Female connector
  • Audio Line-Output Level: Adjustable in a one dB step between -30/-18dBu (depending on the hardware version) and +6 dBu (nominal) and MAX +12 dBu (peak deviation)
  • Audio Line-Output Impedance: ≤ 200 ohm
• Digital Audio Output AES3:
  • Digital Line-Output 1 & 2: Electronically balanced on 3-pin mini-XLR Male connector
  • Digital Line-Output: AES3 @ 48 kHz
• DC Power Supply (Hirose HR10A-F Connector):
  • Pin 1 = Ground
  • Pin 4 = +Vdc
• Headphone Output:
  • Output on stereo 3.5 mm headphone

NOTE: The BPA42HPN is to be used with proper back-panel (i.e. FLA42 or FLA42-SX).
