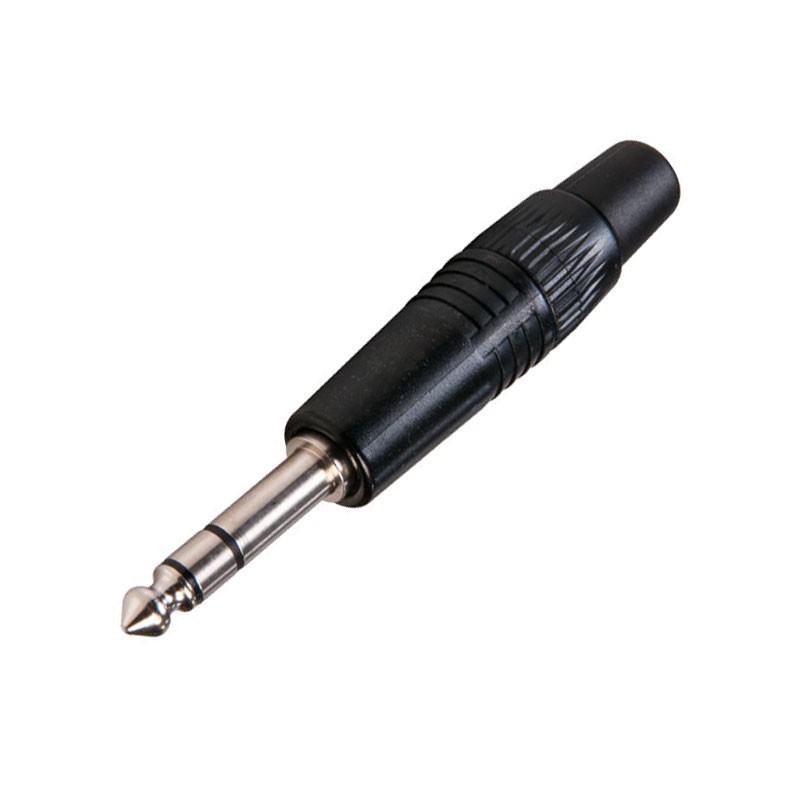

Neutrik NP3C-BAG 1/4 Inch Stereo Phone Plug

With $75 Purchase »
Your Price: $7.25

Availability: In Stock
Quantity:
Manufacturer:

Sales SKU: 5-PNTXCON27
Product Code: NP3C-BAG

The Neutrik NP3C-BAG is a 1/4 inch stereo phone plug with a robust black metal housing and nickel contacts.

Neutrik NP3C-BAG - Features:

  • Rugged diecast metal shell
  • Chuck type strain relief for optimum cable protection
  • Precision machined one-piece contacts—avoid hook up of tip contact
  • Product:
    • Connection Type: Plug
    • Gender: Male
  • Elecrical:
    • Contact Resistance: Depends on mating connector mΩ
    • Dielectric Strength: 1 kVdc
    • Insulation Resistance: > 2 GΩ (initial)
    • Rated Current Per Contact: Depends on mating connector A
    • Rated Voltage: < 50 V
  • Mechanical:
    • Cable O.D.: 4 - 7 mm
    • Lifetime: 1000 mating cycles
    • Wire Size: 1 mm2
    • Wire Size: 18 AWG
    • Wiring: Solder contacts
  • Material:
    • Bushing: Polyacetal (POM) + PU
    • Contact Plating: 2 µm Ni (Su)
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Black chromium
    • Strain Relief: Polyacetal (POM)
  • Environmental:
    • Standard Compliance: IEC 60603-11 / EIA RS-453
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -4 ° to +149 °F | -20 ° to +65 °C
