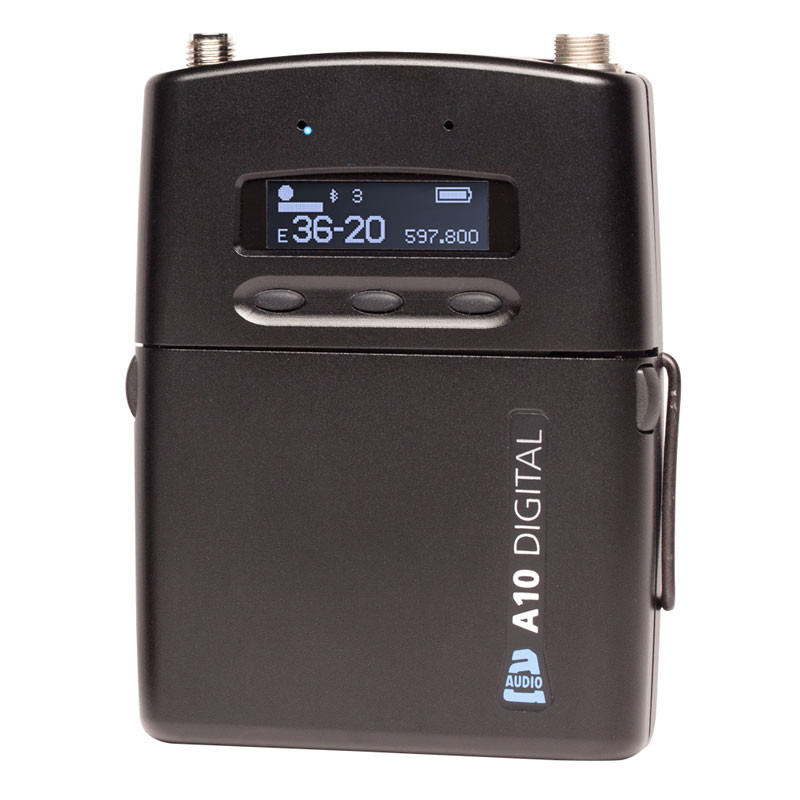

Sound Devices A10-TX-US Digital Body Pack Wireless Transmitter

Share

The Sound Devices A10-TX-US transmitter is the heart of the A10 Digital Wireless Systems for the U.S. The core of the A10-TX-US transmitter is its low-noise, high-dynamic-range analog input. It accepts signals from low-level lavalier microphones to balanced line-level. The 3-pin LEMO input offers analogue limiters, 5 volt bias for lavalier microphones, as well as 12 and 48 volt phantom power for balanced microphones.

Sound Devices A10-TX-US - Features:

• Low-noise, studio-grade balanced input for microphones and line level inputs with analogue limiter and 48 V phantom power
• All-digital RF modulation for full bandwidth, ultra-low distortion, and high dynamic range
• Built-in Bluetooth® to remotely control the A10-TX from an Android or iOS device using the A10 Remote App
• Powered by two AA (LR6) batteries

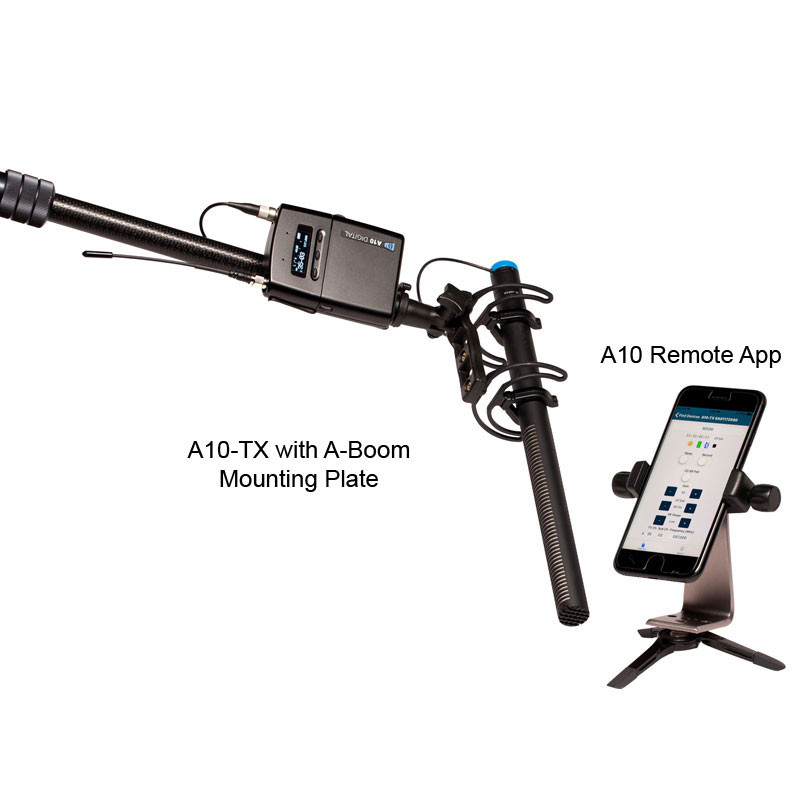

Built for Wireless Boom

The wireless boom has become a requirement for many productions. The A10-TX-US is the first digital wireless transmitter that accepts either lavalier microphones or a phantom-powered balanced microphones. With the A10-TX-US mounted on the boom pole, a user gains numerous advantages, including:

• 1/4-wave antenna in free-space for maximum RF radiating efficiency
• The flexibility to mount the transmitter at the top, bottom, or clipped to a boom operator's belt
• A true balanced input with superior noise rejection and immunity to induced RF interference
• Convenient Bluetooth control
• Built-in 12 or 48 V phantom power with a full 10 mA supply
• One unit which accepts lavaliers, balanced microphones, and line-level camera hop signals

• A10 U.S. Wireless System Frequency Range: 470 - 608 MHz
• Transmitter Switching Bandwidth (Tunable in 25 kHz steps):
  • A10-TX-AU: 470 - 548 MHz
  • A10-TX-BU: 518 - 608 MHz
• Modulation Mode: proprietary digital RF modulation
• Digital Audio Codec: proprietary, high-performance digital encoding algorithm
• Audio Frequency Response: 20 Hz - 20 kHz
• RF Output Power: 10 mW, 20 mW, 50 mW, selectable
• Audio Gain Control: 0 - 40 dB in 10 steps, menu and remote control
• Low Frequency Cut: flat, 50 Hz, 80 Hz, 120 Hz, 200 Hz, user selectable
• Input Connector: 3-pin LEMO (series 00)
• Input Type: Microphone or line level, balanced or unbalanced
• Bias and Phantom Power: 5 V Bias, 12 V or 48 V phantom power
• Menu and Controls: OLED menu display, 3 button navigation

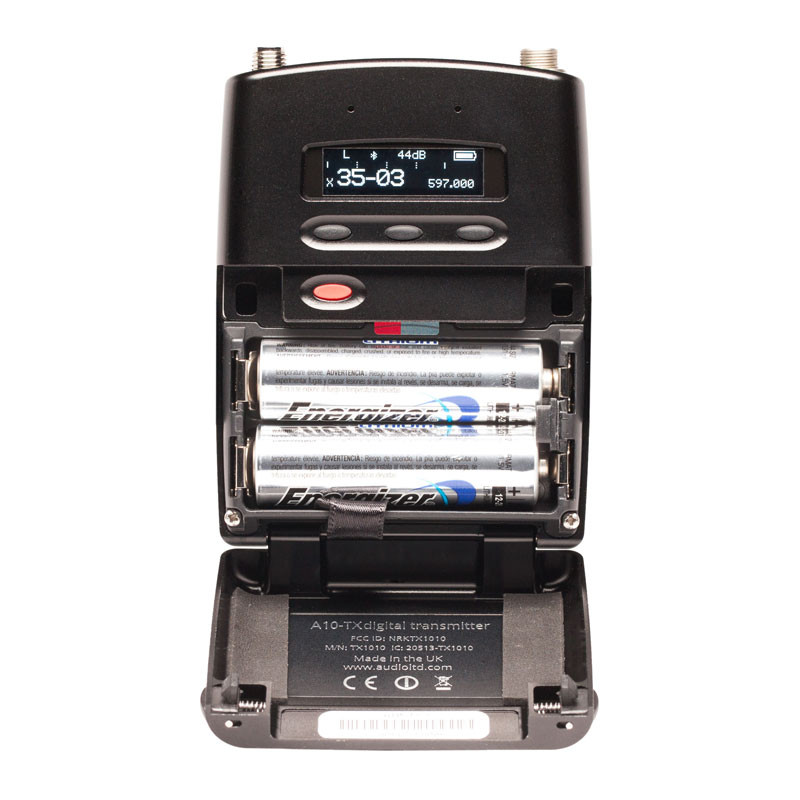

• Powering: (2) 1.5V LR6 AA size, lithium, NiMH, or alkaline
• Privacy: User-settable, proprietary
• Operating Temperature Range: 14° to +131° F | -10° to +55° C
• Dimensions: 3.3 x 2.5 x .71 in | 83 x 64 x 18 mm
• Weight: 3.7 oz | 104 g
